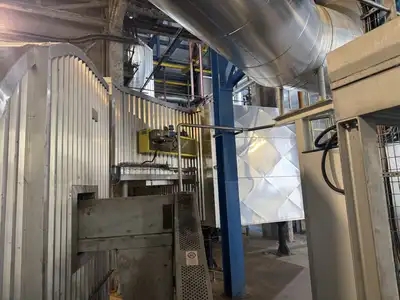

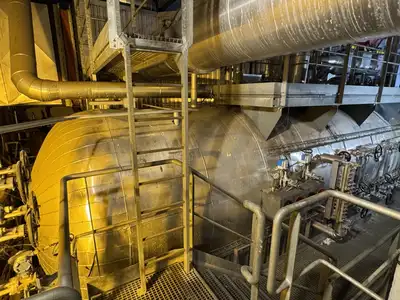

STEIN ENERGIE 60 T/H steam generator

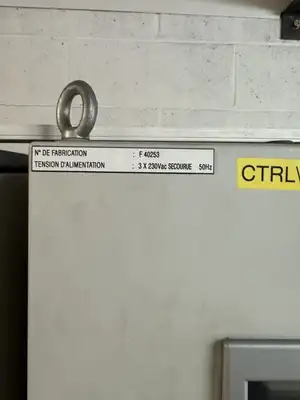

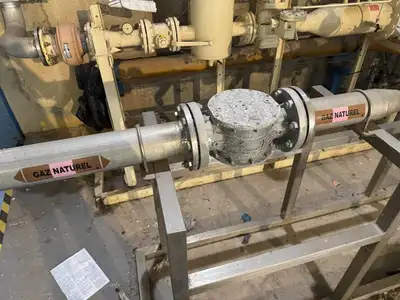

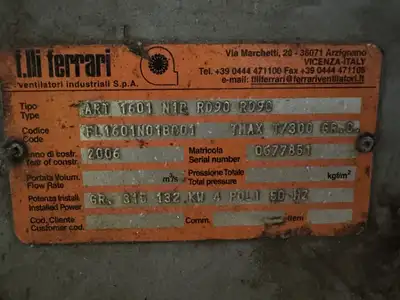

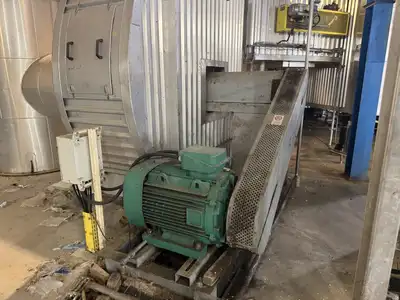

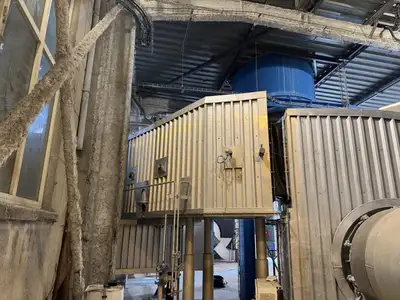

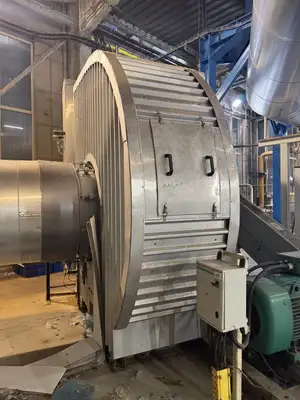

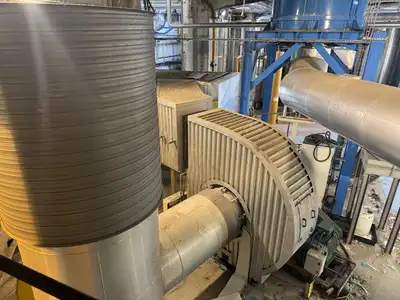

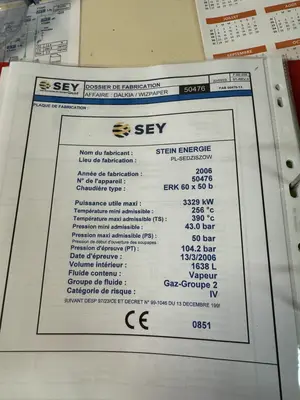

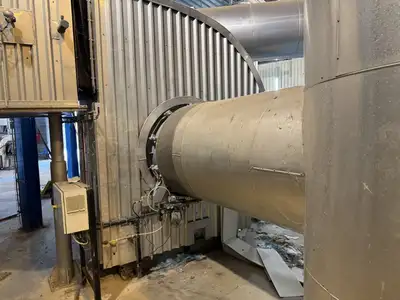

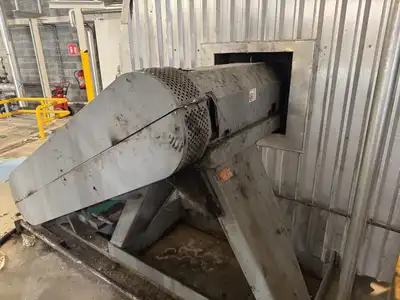

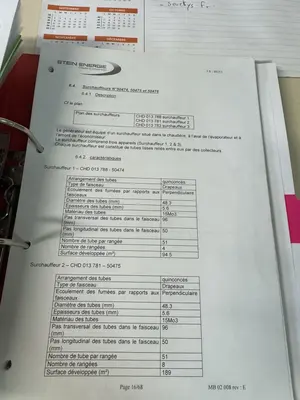

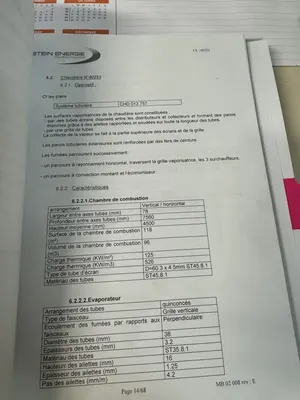

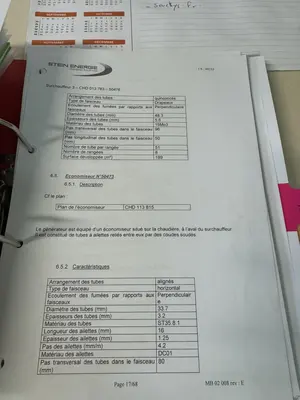

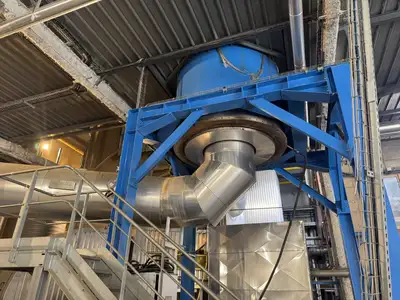

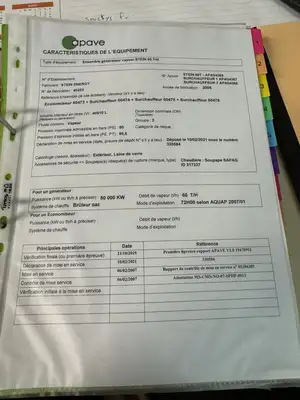

Manufacturer : STEIN ENERGIE — Chaudières Industrielles manufacturing location: PL-Sedziszów, Poland — Galilé group / SEY - Equipment type : STEIN 60 T/H steam generator assembly - Boiler manufacturing No. : 40253 — Year built: 2006 - Boiler type : ERK 60 x 50 b - Assembly reference : Economizer 50473 + Superheater 50474 + Superheater 50475 + Superheater 50476 - Apave No. : Boiler STEIN 60T AP4G4365 — Superheater 1 AP4G4367 — Superheater 2 AP4G4368 - Client : DALKIA WIZPAPER at Wizernes - Service declaration : filed 10/02/2021 under No. 330584; initial commissioning 06/02/2007 inspection report No. 05384385, certificate MS-CMS-NO-07-SPHP-0013; first pressure test/final verification 21/10/2019 APAVE report V2.0 No. 19470953 - Combustion fan No. VC01 : f.lli ferrari — Ventilatori Industriali S.p.A., Arzignano, Vicenza, Italy — Type ART 1601 N1B RD90 RD90, Code FL1601N01BC01 THAX T/300 GR.C, year 2006, serial 0677851, motor group 315, 132 kW, 4 poles, 50 Hz - Lot identification : expertise lot following on from this boiler house's C1/C2 lots — Apex Auctions tag not visible in the photos provided, to be confirmed on site - Type : industrial steam generator water-tube boiler, gas-fired, with drum, evaporator bank, three integrated superheaters and economizer - Application : steam production for the process and/or plant heating - Generator power : 50,000 kW — Rated steam flow: 60 T/h - Heating system : gas burner - Operating mode : 72h00 per AQUAP 2007/01 — Self-monitored intermittent surveillance operation without permanent human presence; on-call staff must respond within 30 min of automatic alert; safety sensor tests every 24h - Rated steam flow : 60 T/h — Generator power: 50,000 kW - Max allowable pressure PS : 50 bar — Test pressure: up to 104.2 bar depending on component - Internal volume generator : 40,510 L — Drum/superheater volumes: see per-component detail above - Fluid : steam and water — Service temperature up to 265.15°C superheater: 256-390°C - Insulation : external glass wool — Removable ISOXAL cladding - Combustion fan : 132 kW installed, 1,057 rpm - Weight : 40000 kg - Origin : Fabrication : Pologne site PL-Sedziszów, groupe Galilé/SEY. Marque : STEIN ENERGIE groupe historiquement français. Ventilateur de combustion : Italie f.lli ferrari — Ventilatori Industriali S.p.A., Vicenza - Location : Wizernes
