DEMAG shaft/mandrel shuttle trolley

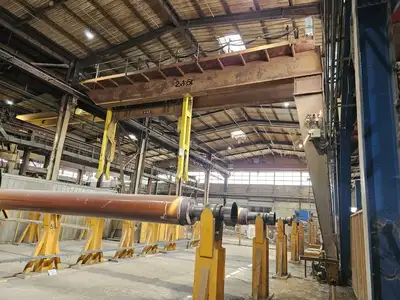

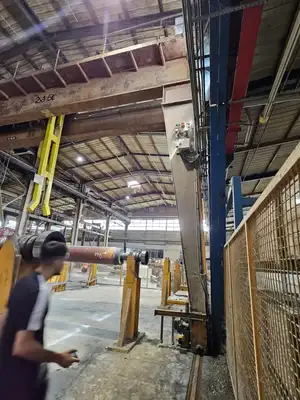

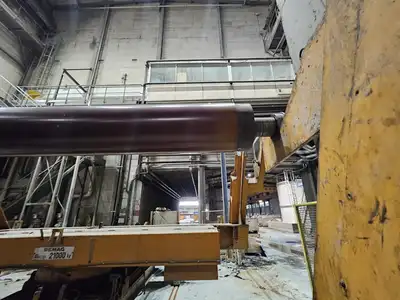

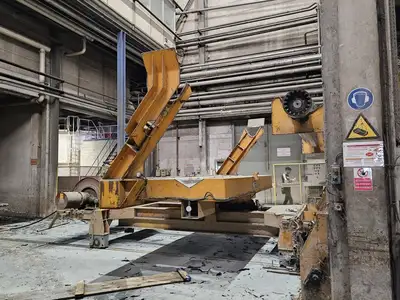

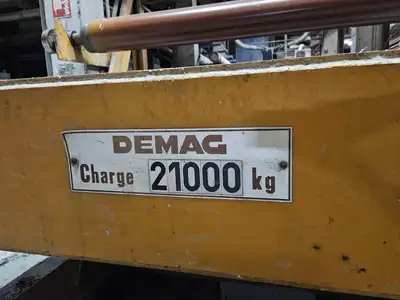

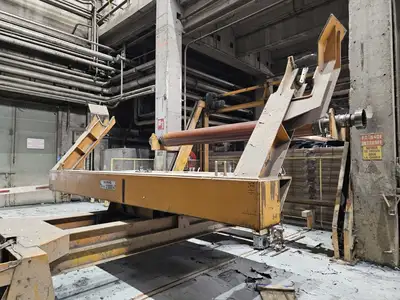

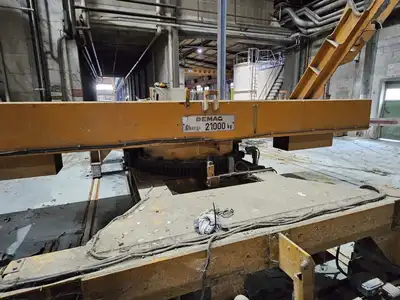

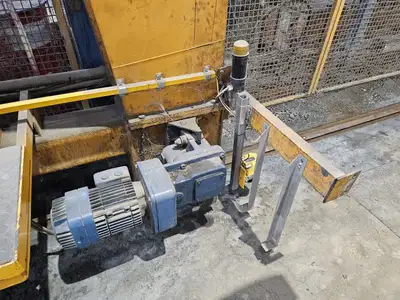

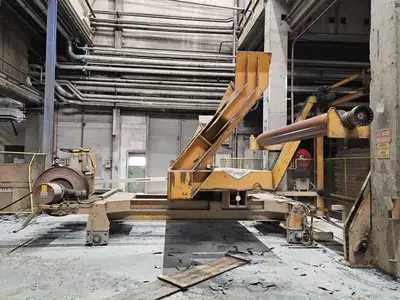

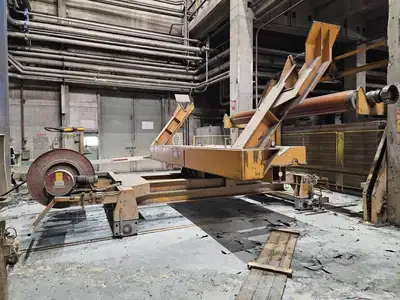

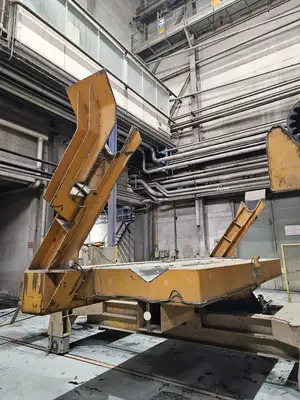

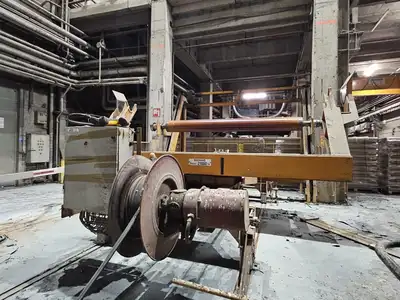

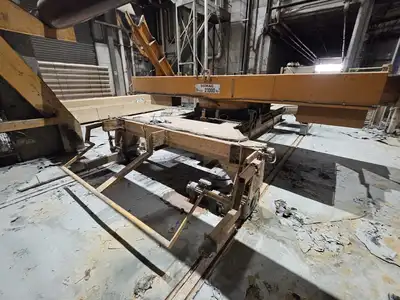

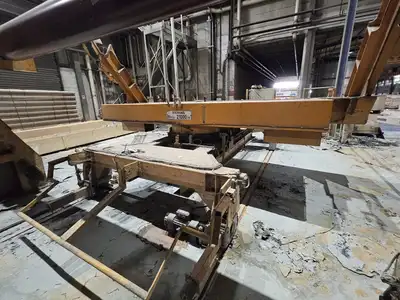

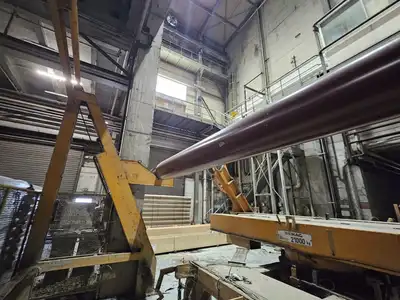

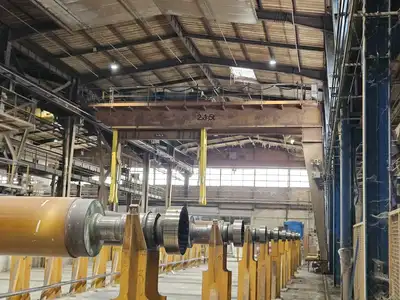

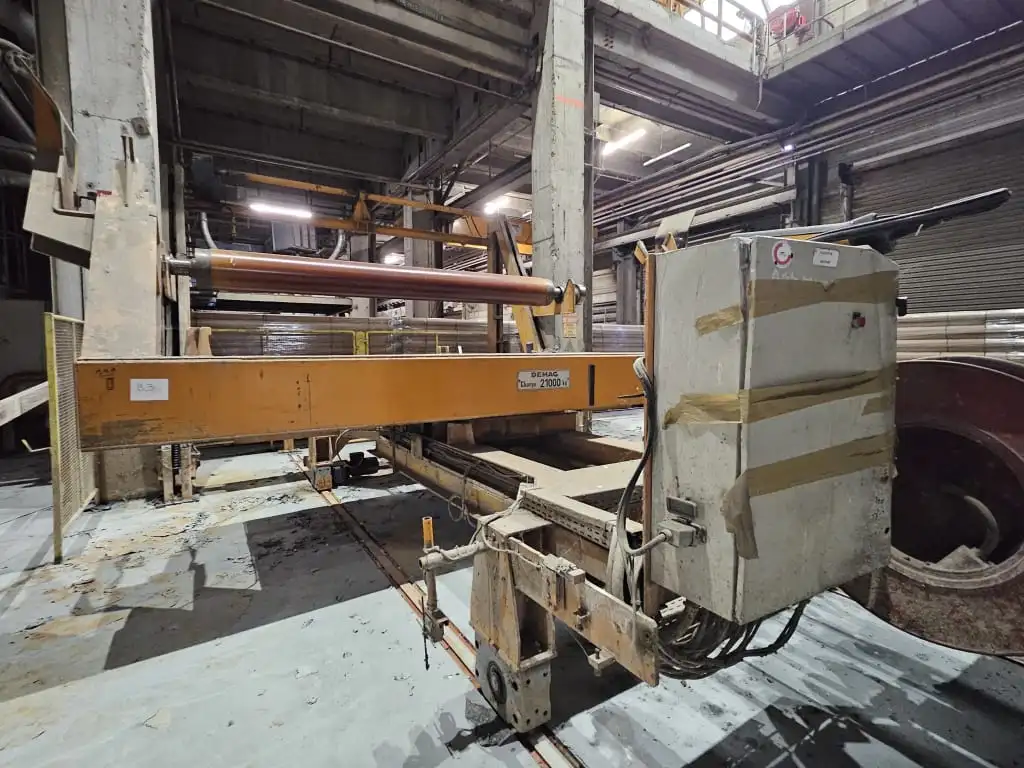

Manufacturer : DEMAG builder's plate "DEMAG — Charge 21000 kg" fixed on the trolley cross-beam - Type : self-propelled shuttle trolley running on floor-mounted rails, fitted with tilting shaft/mandrel-carrying arms - Capacity : 21,000 kg - Lot identification : handwritten tag "B3"; "NAVETTE" shuttle label and "COTE MAC" machine side marking noted on the frame - Location : runs on floor rails in a reel/mandrel storage area, near a paper machine "MACHINE A PAPIER 5" signage visible in the background and stacks of stored reels/mandrels - Type : motorized shuttle trolley for handling winding shafts/mandrels, traveling on floor rails - Application : transports and positions mandrels heavy cylindrical shafts used as winding cores between their storage area and the winding/reel-up station of the paper machine or associated line - Operation : self-propelled, no permanent operator presence required during travel; powered via a cable wound on a braked reel - Handling capacity : 21,000 kg - Manufacturer : DEMAG - Travel : self-propelled on floor rails, electric gear motor - Gripping : two V-shaped tilting arms, lifting/guiding motion for the mandrel - Power supply : flexible cable on a braked reel - Identification : builder's plate "DEMAG — Charge 21000 kg"; handwritten lot tag "B3"; "NAVETTE" / "COTE MAC" markings - Weight : 3000 kg - Origin : Germany DEMAG - Location : Wizernes
