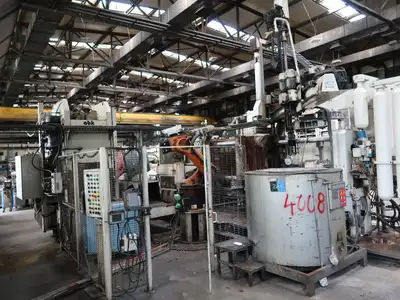

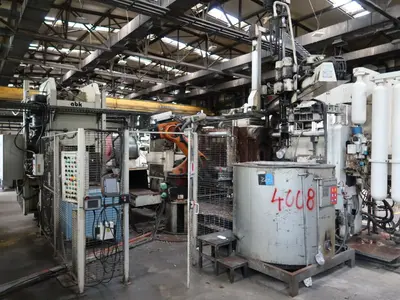

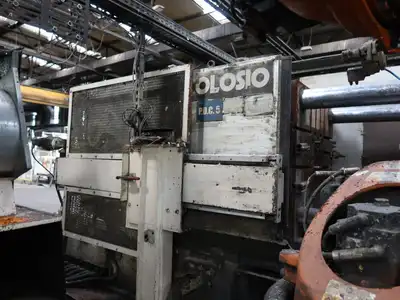

2012 Colosio PFO 600 REV Automated Cold Chamber Die Casting Line

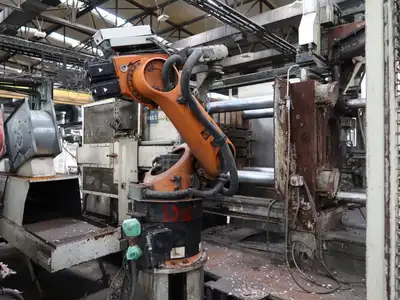

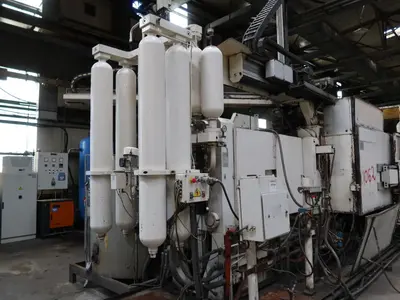

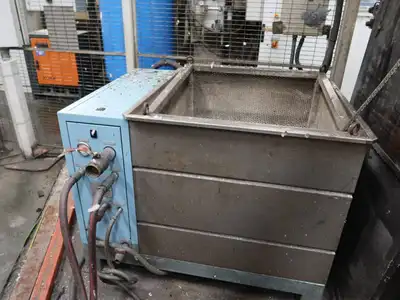

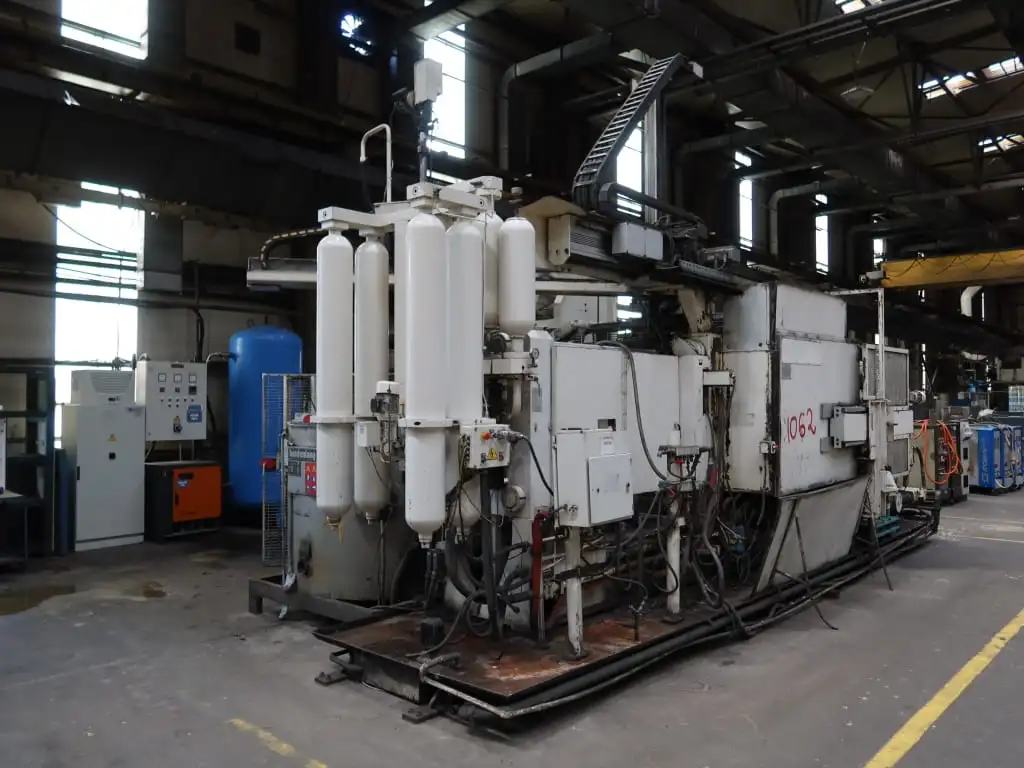

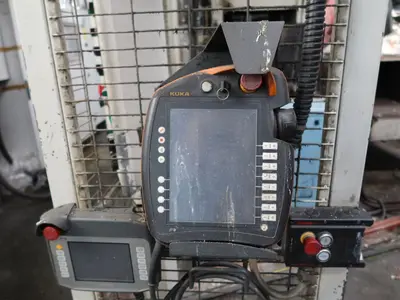

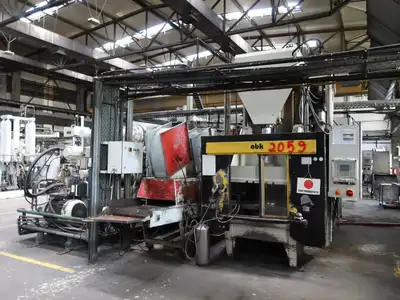

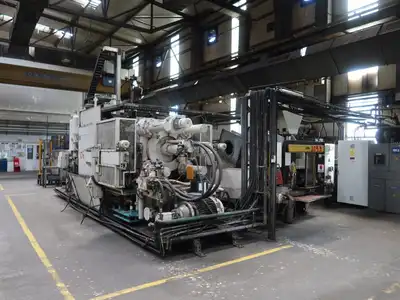

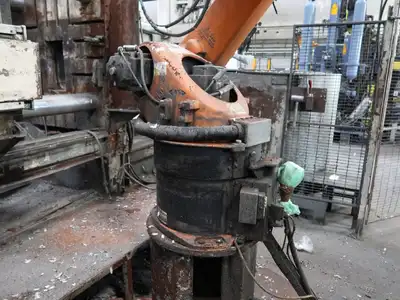

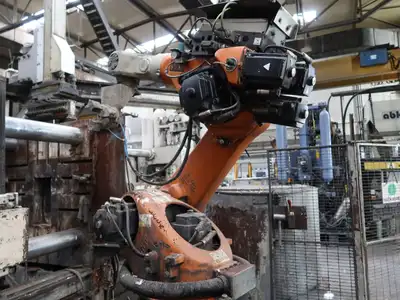

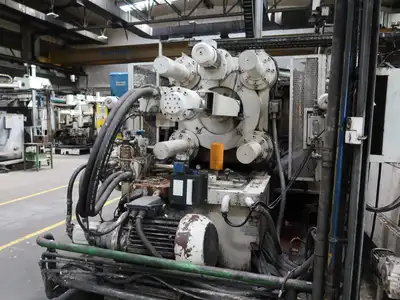

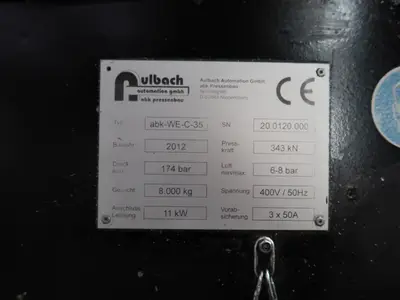

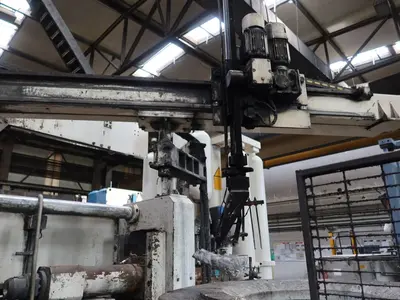

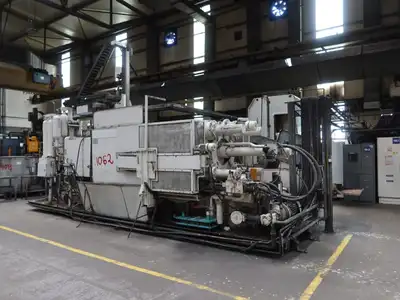

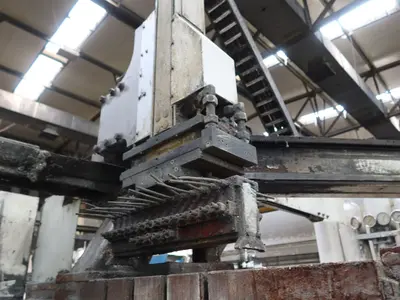

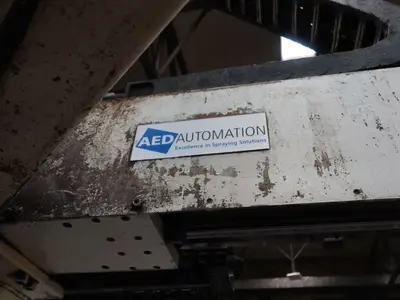

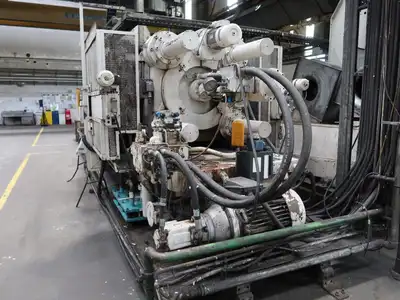

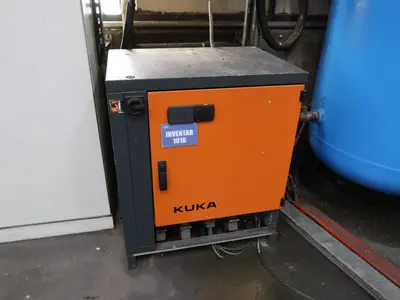

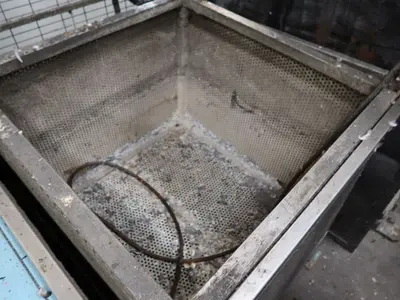

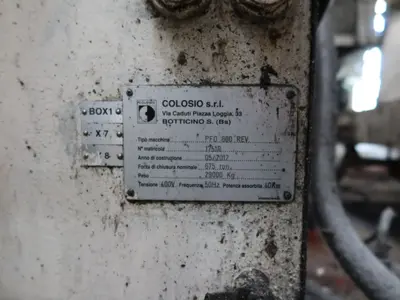

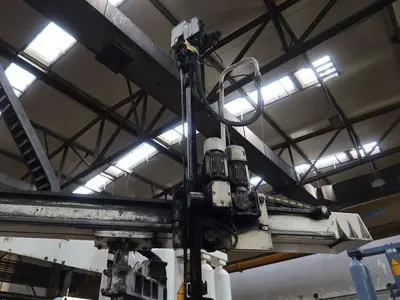

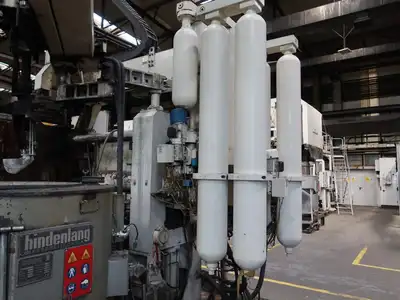

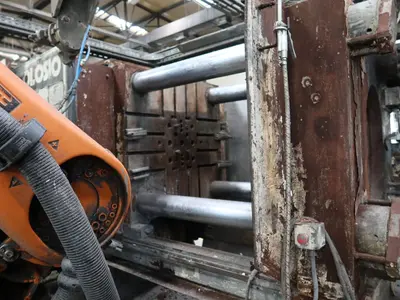

Line consisting of: A) Colosio PFO 600 REV; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace A) Nominal force: 675 T; Clamping force: 620 T; Press force: 60.7 T; Minimum injection force: 21.5 T; Central ejection force: 33 T; Maximum adjustment of moving mold plate: 700 mm; Minimum adjustment of moving mold plate: 450 mm; Stroke: 625 mm; Maximum mold height: 850 mm; Minimum mold height: 350 mm; Distance between columns: 720 x 720 mm; External dimensions of mold plates: 1120 x 1120 mm; Column diameter: 150 mm; Maximum pressure area (400 kg/cm²): 1150 cm²; Number of cycles at idle: 6 cycles/min; Pump motor power: 37 kW; Operating pressure: 140 bar; Tank capacity: 1500 l; Maximum piece weight (Al): 10.5 kg; Minimum mold dimensions: 520 x 520 mm; Total weight: 29.000 kg. B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; D) Capacity: 1000 L E) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

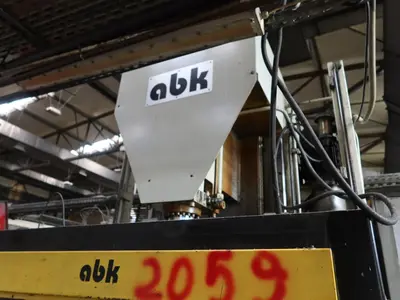

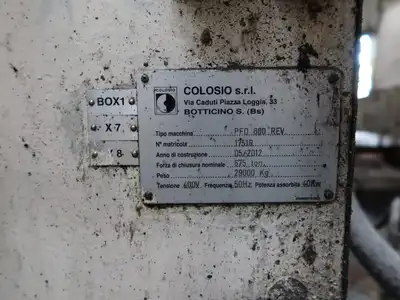

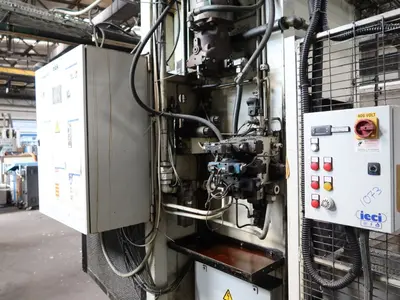

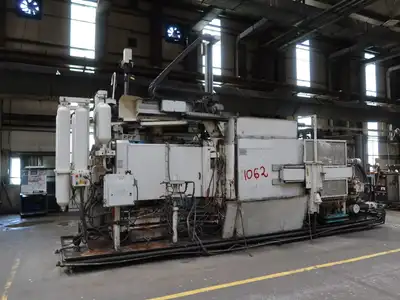

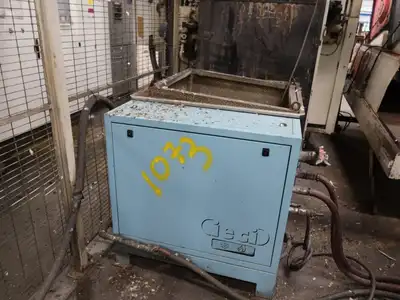

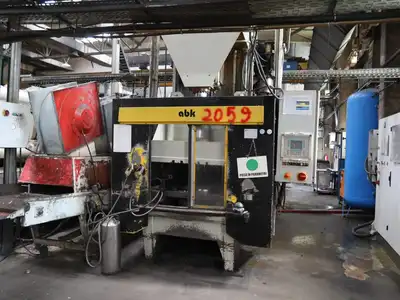

A) Inv. Nr: 1062; Serial Number: 1803; B) Nr.Inv: 1016; Serial Number: 705081; C) Inv. Nr: 2059; D) Inv. Nr: 1073; E) Inv. Nr: 1040; Approximate footprint 8700 x 5000 mm; Total weight (Die casting machine): 29.000 kg; Optional dismantling and loading services are available on site.
