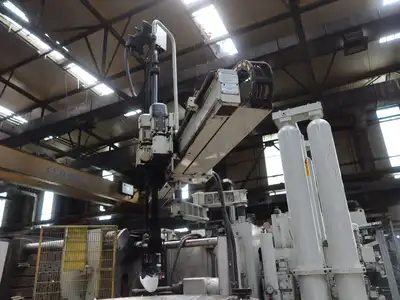

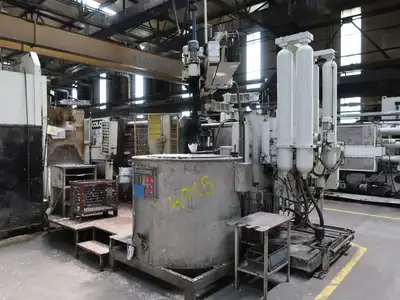

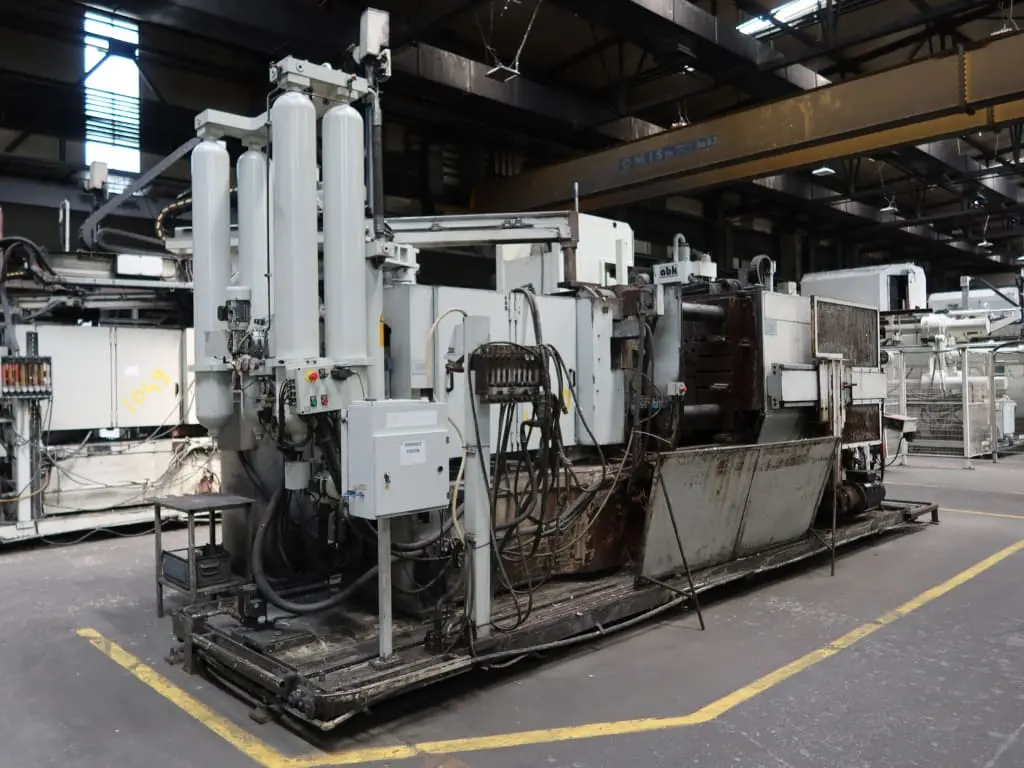

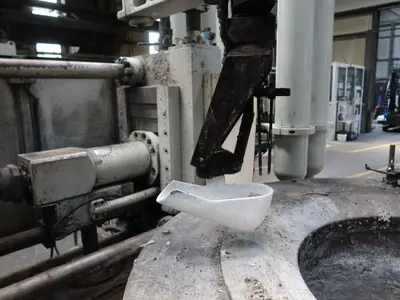

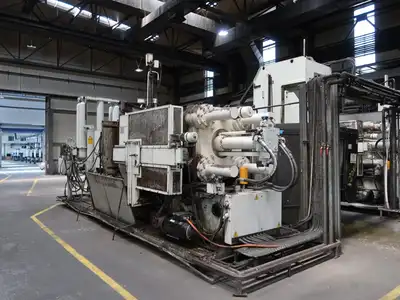

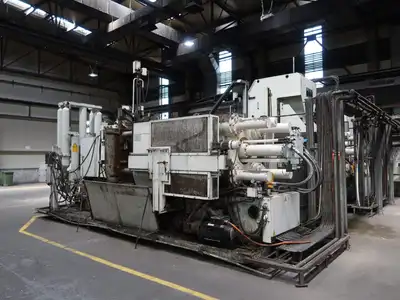

2013 Colosio PFO 560 GL Automated Cold Chamber Die Casting Line

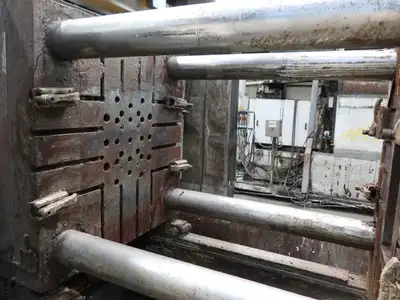

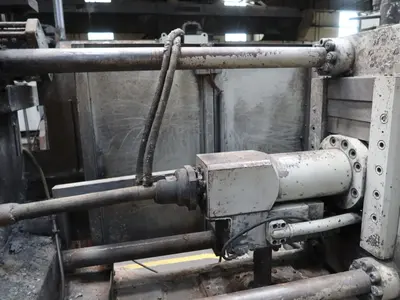

Equipped with Green Line Motors Bosch - RexRoth, with inverters; Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar;

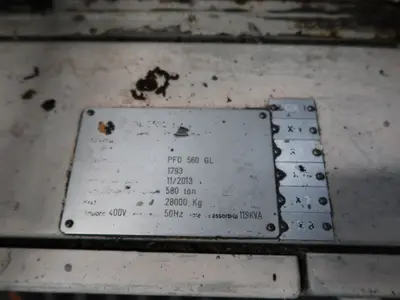

Inv Nr: 1050 ;Serial number: 1793; Total machine weight (machine only): 24,600 kg; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Optional dismantling and loading services are available on site.
