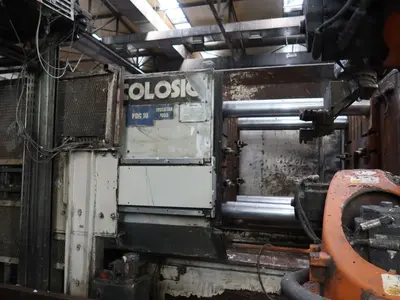

2014 Colosio PFO 560 GL Automated Cold Chamber Die Casting Line

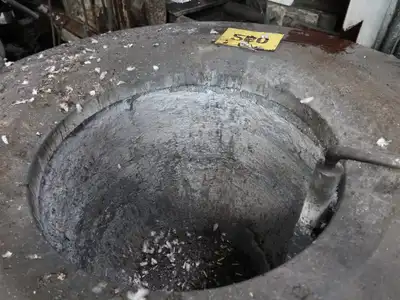

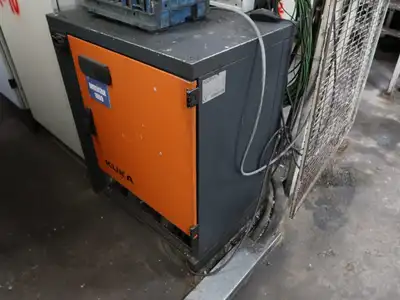

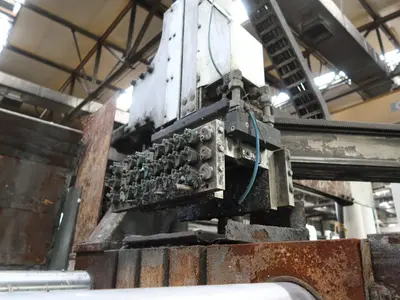

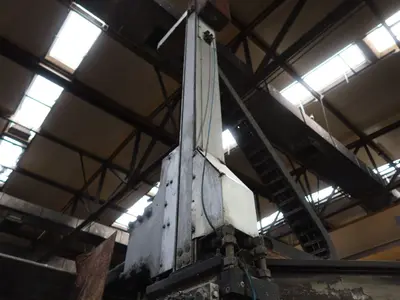

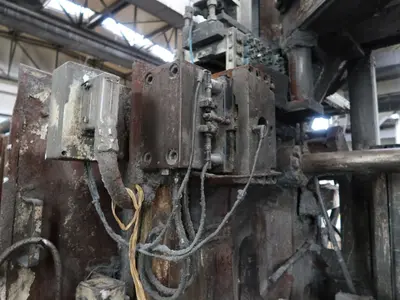

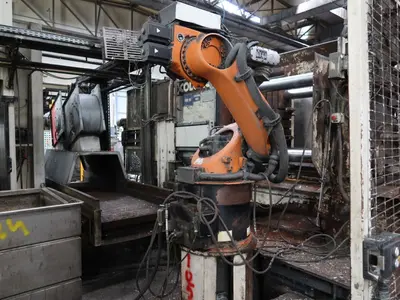

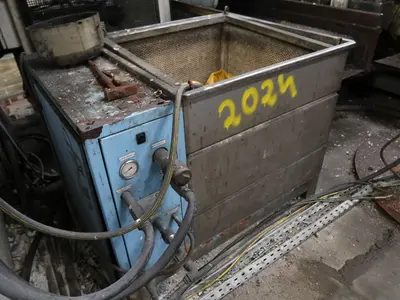

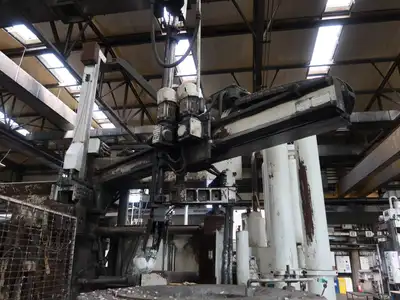

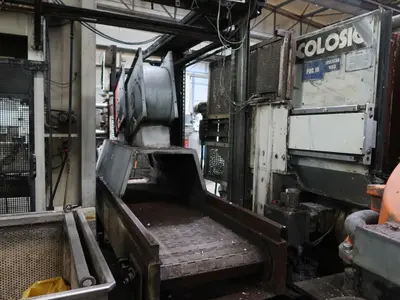

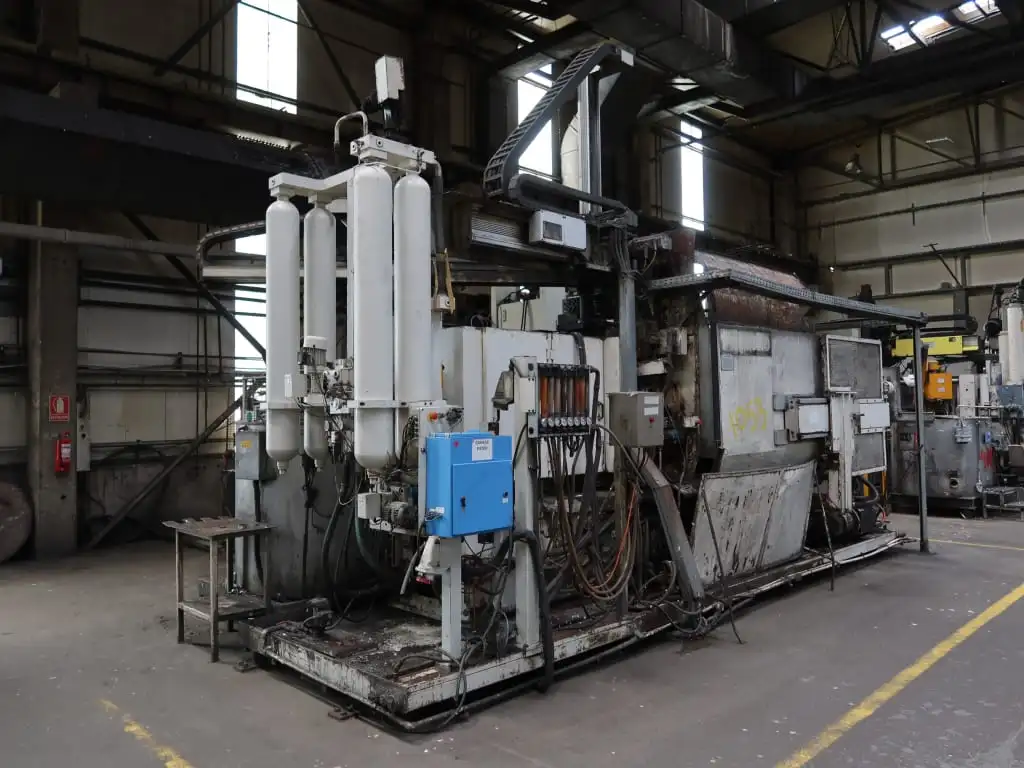

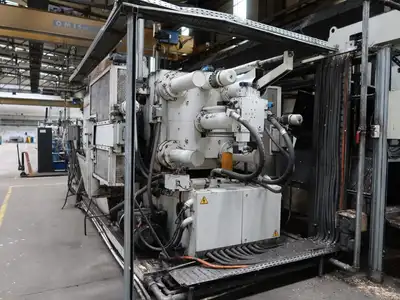

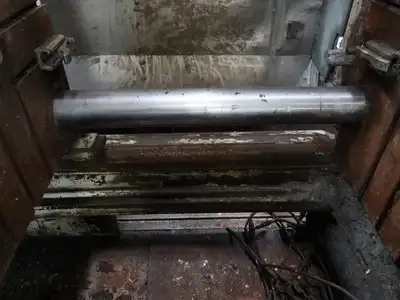

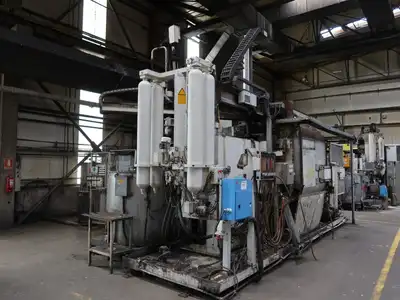

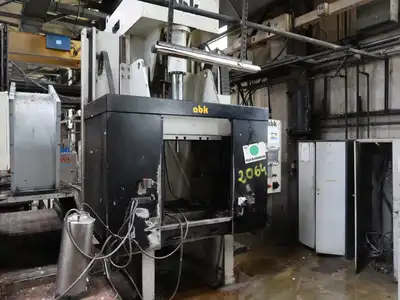

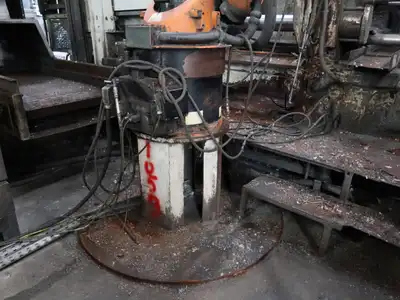

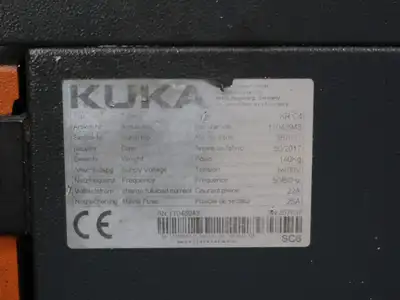

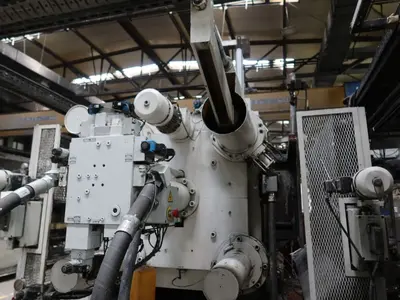

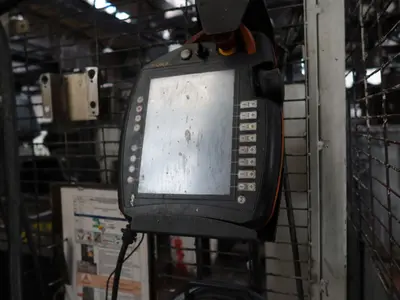

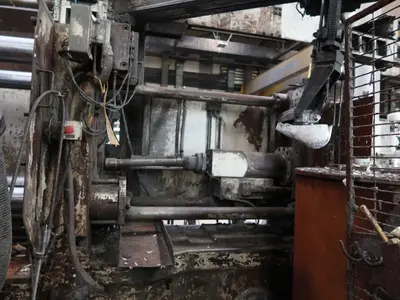

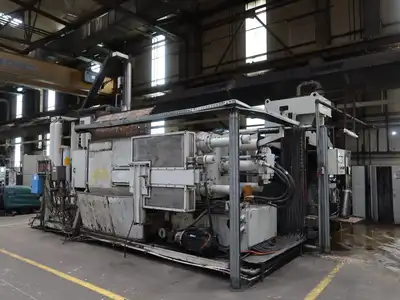

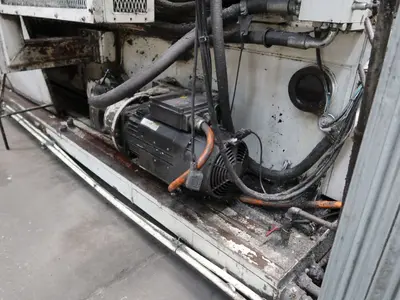

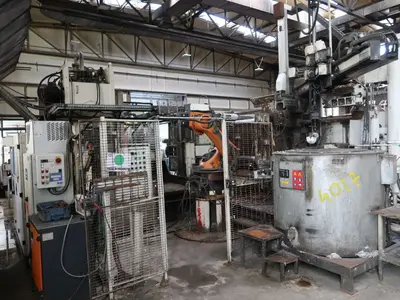

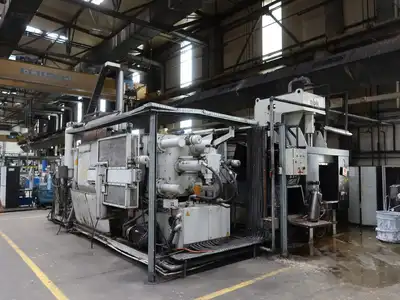

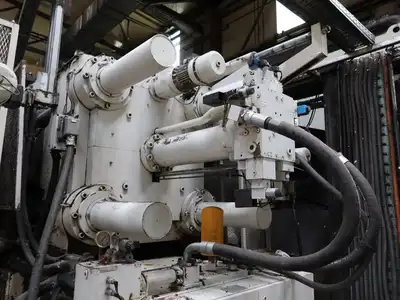

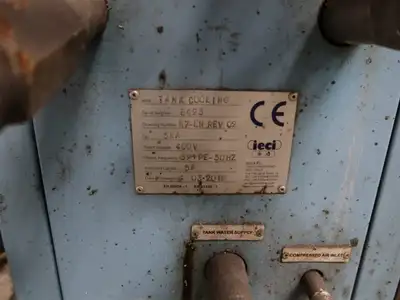

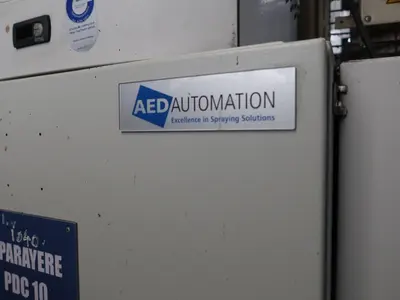

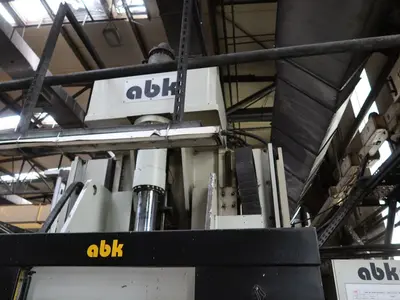

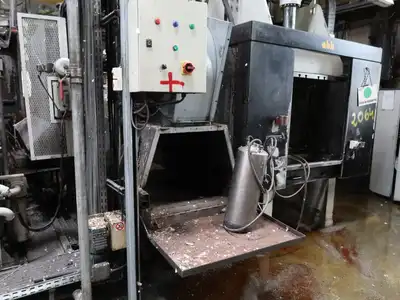

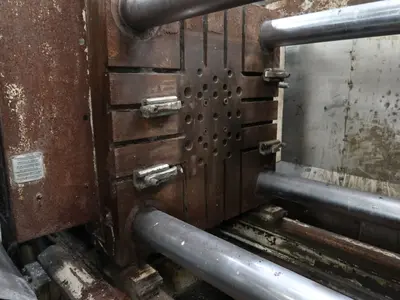

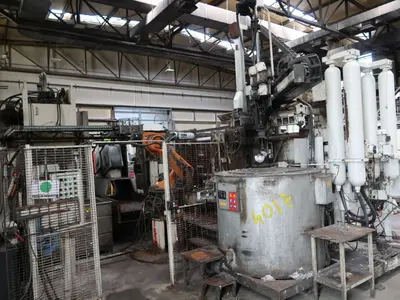

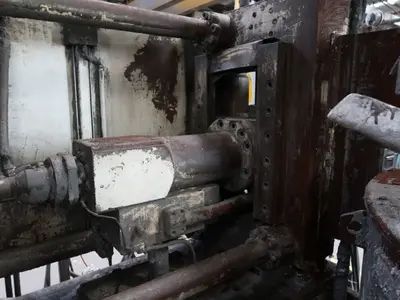

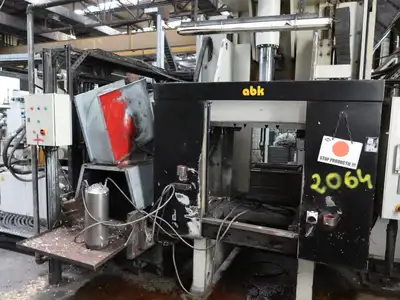

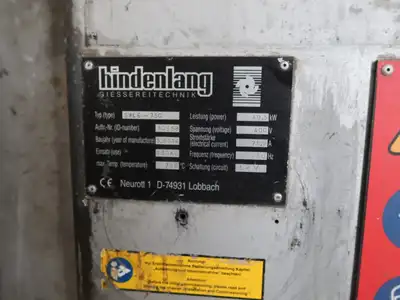

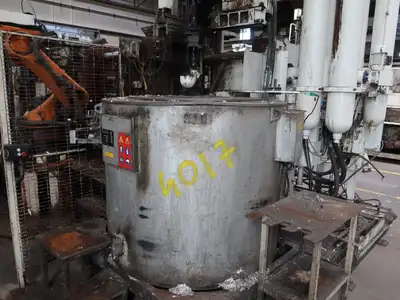

Line consisting of: A) Colosio PFO 560 GL; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace Inv. Nr: 4017; Does not contain: Granule Piston Inv Nr. 5001; A) Equipped with Green Line Motors Bosch - RexRoth, with inverters; Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar; B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm D) Capacity: 1000 L; E) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

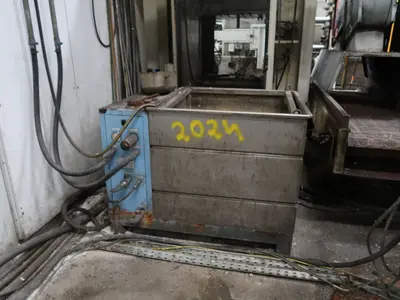

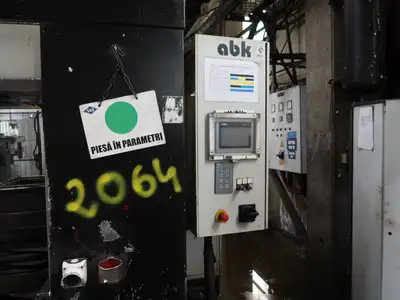

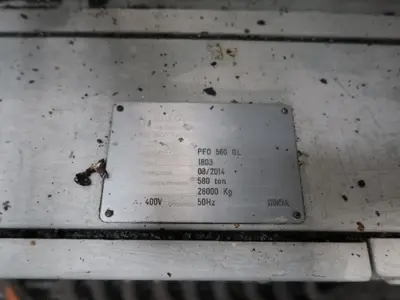

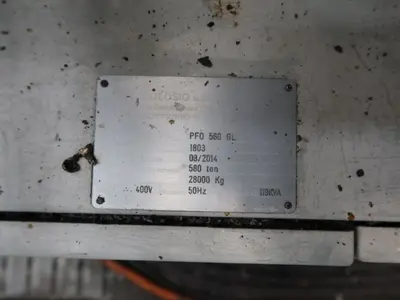

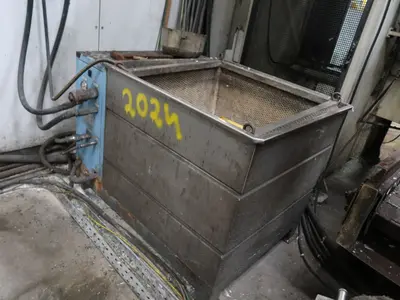

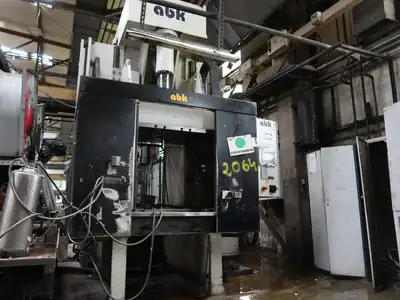

A) Inv. Nr: 1053; Serial Number: 1803; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; B) Nr.Inv: 1059; Serial Number: 704037; C) Inv. Nr: 2064; D) Inv. Nr: 2024; E) Inv. Nr: 1040; Approximate footprint 7700 x 5000 mm; Optional dismantling and loading services are available on site.
