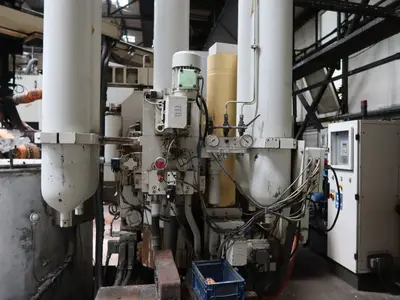

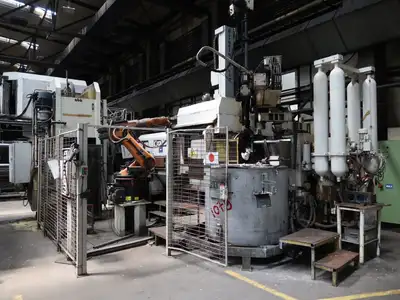

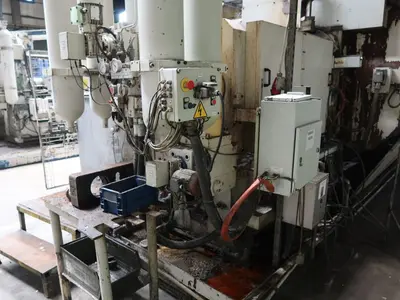

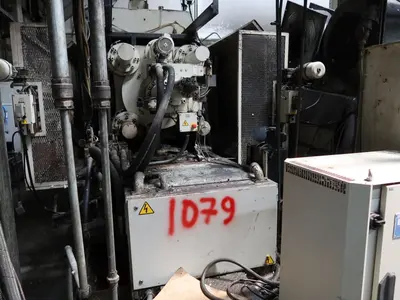

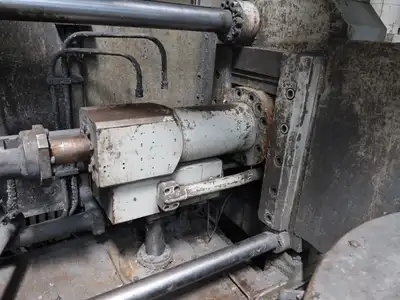

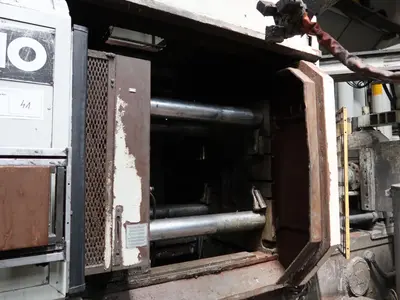

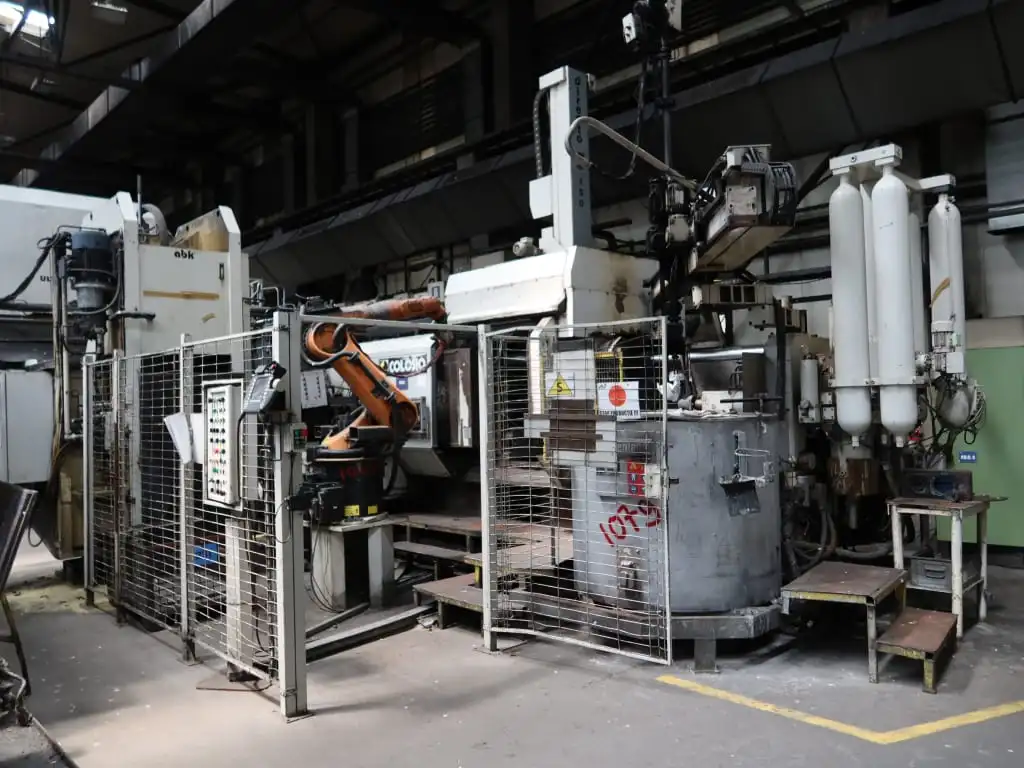

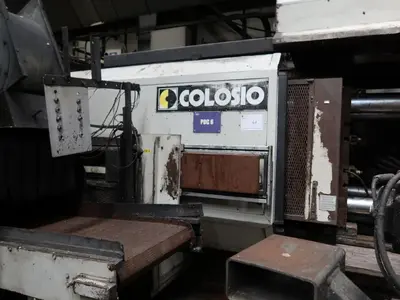

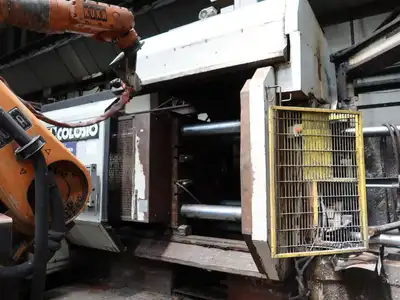

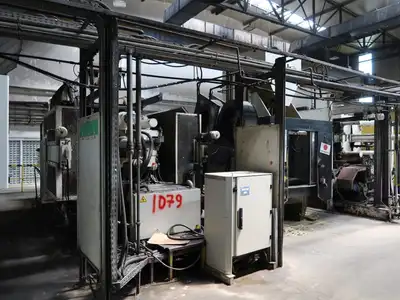

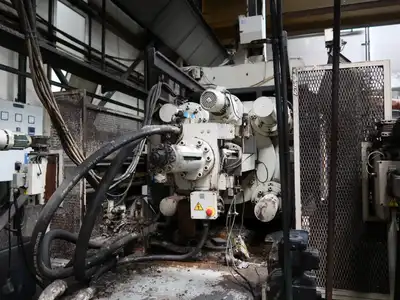

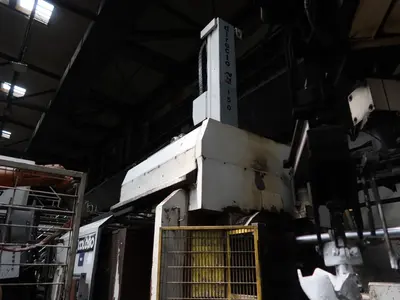

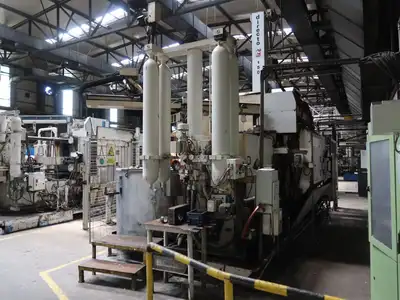

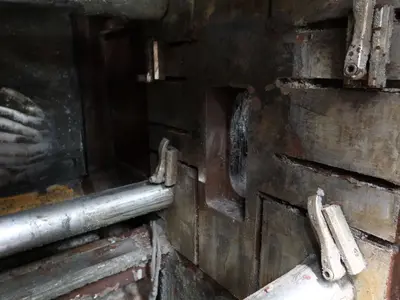

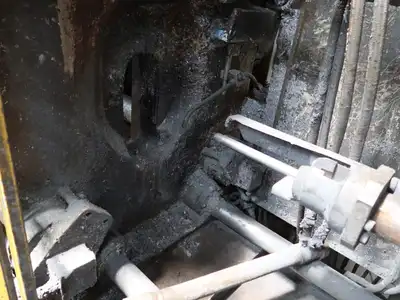

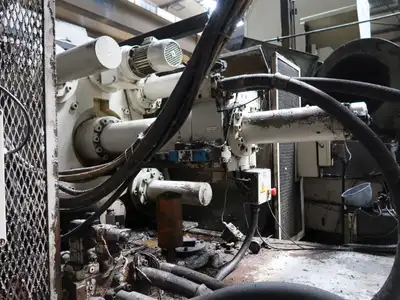

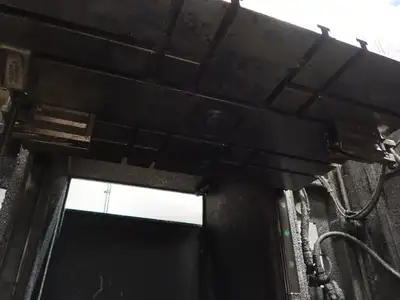

Colosio PFO Automated Cold Chamber Die Casting Line

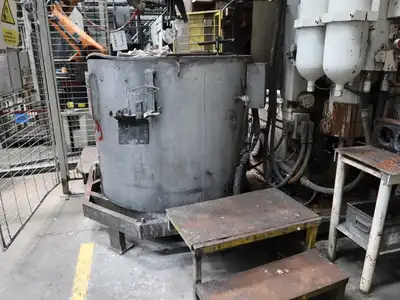

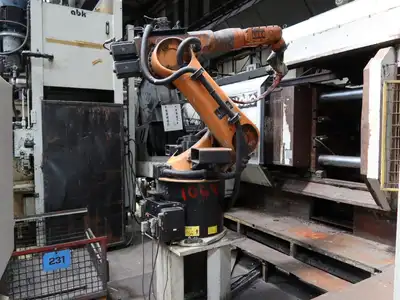

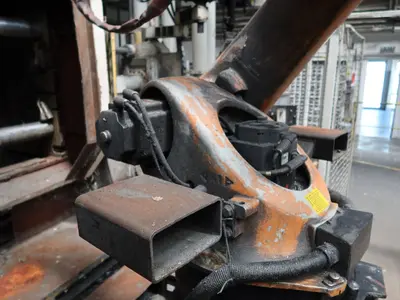

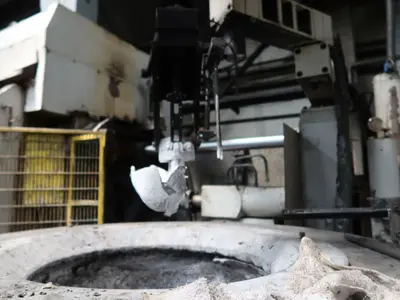

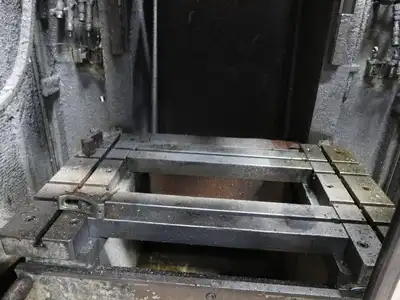

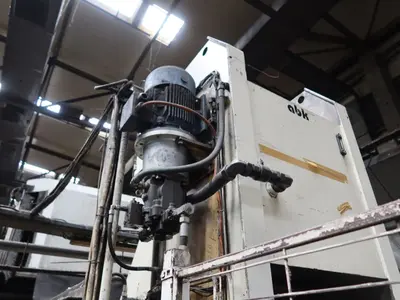

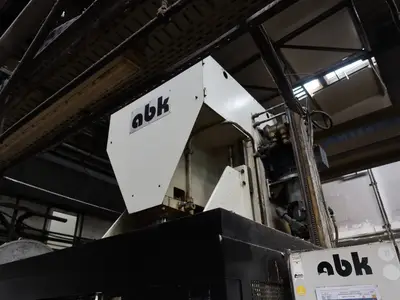

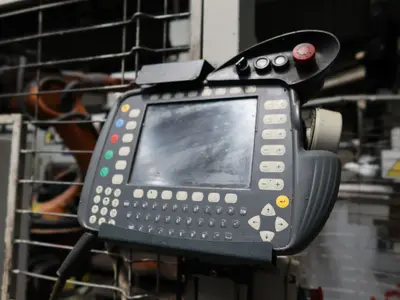

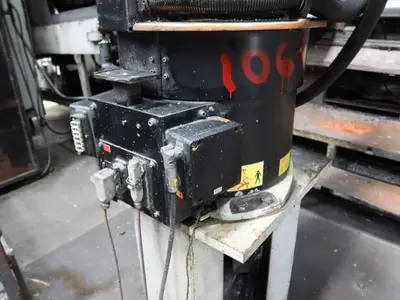

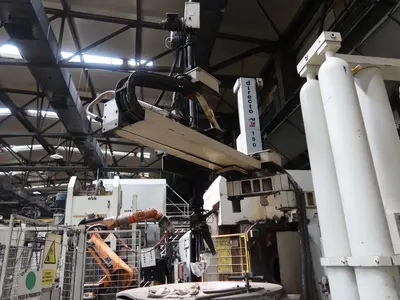

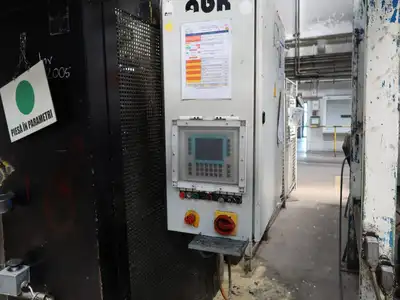

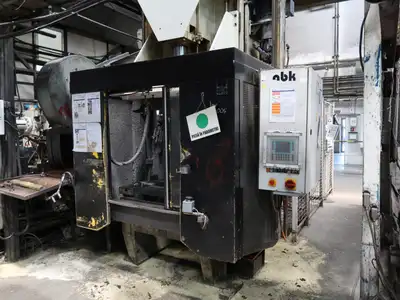

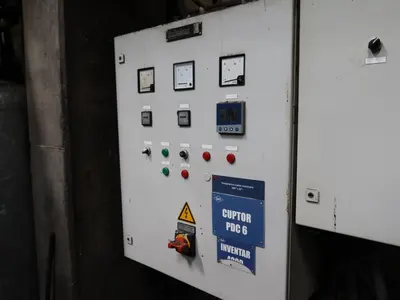

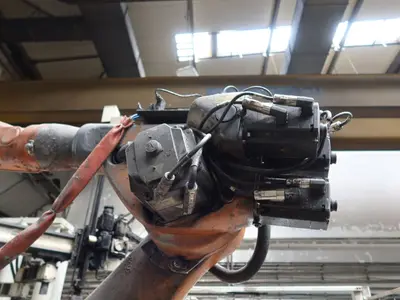

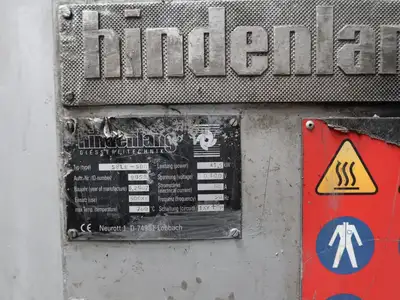

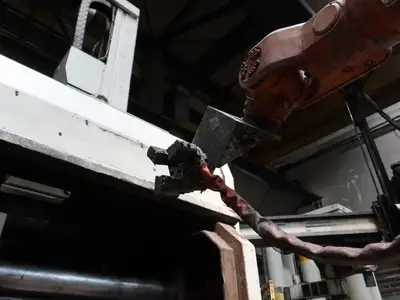

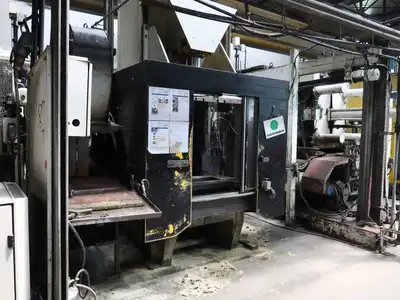

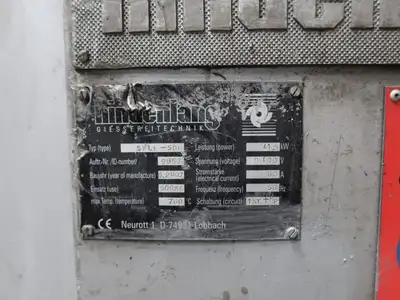

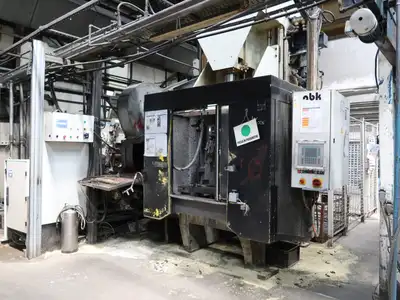

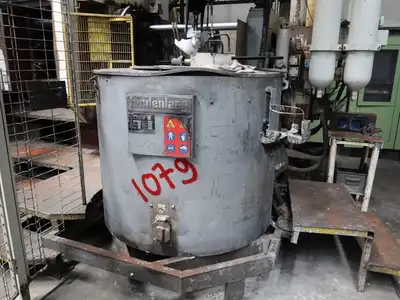

Composed of: A) Colosio PFO; B) Kuka Robot; C) Hindenlang SWLE- 500 Melting Furnace; D) ABK-CP35 Hydraulic Press; E) Relbo Director 150 Spraying machine A) 500 Tons B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Capacity: 500 kg; Maximum Temperature: 760 Degrees Celsius; Power: 41,5 kW D) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm E) Robust spraying machine; Maximum spray head weight: 30 kg; Number of circuits: Up to 2 circuits; Vertical stroke: 1500 mm; Maximum vertical speed: 1.0 m/s; Acceleration: 2.6 m/s2

Approximate footprint 9000 x 5600 mm; Optional dismantling and loading services are available on site.
