USED 2012 DOOSAN PUMA 480L

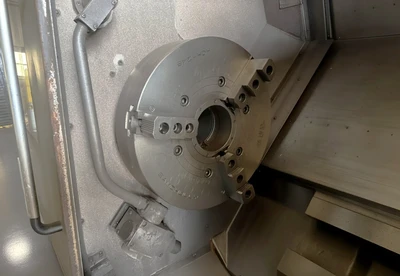

24" Samchully 3 Jaw Hydraulic Chuck
6.5" Bar Capacity

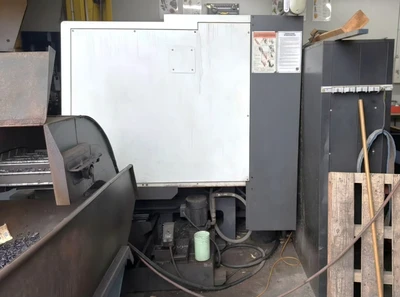

Chip Conveyor
Programmable Tailstock
2 Speed Gearbox
Card Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
All Available Tooling
All Available Manuals

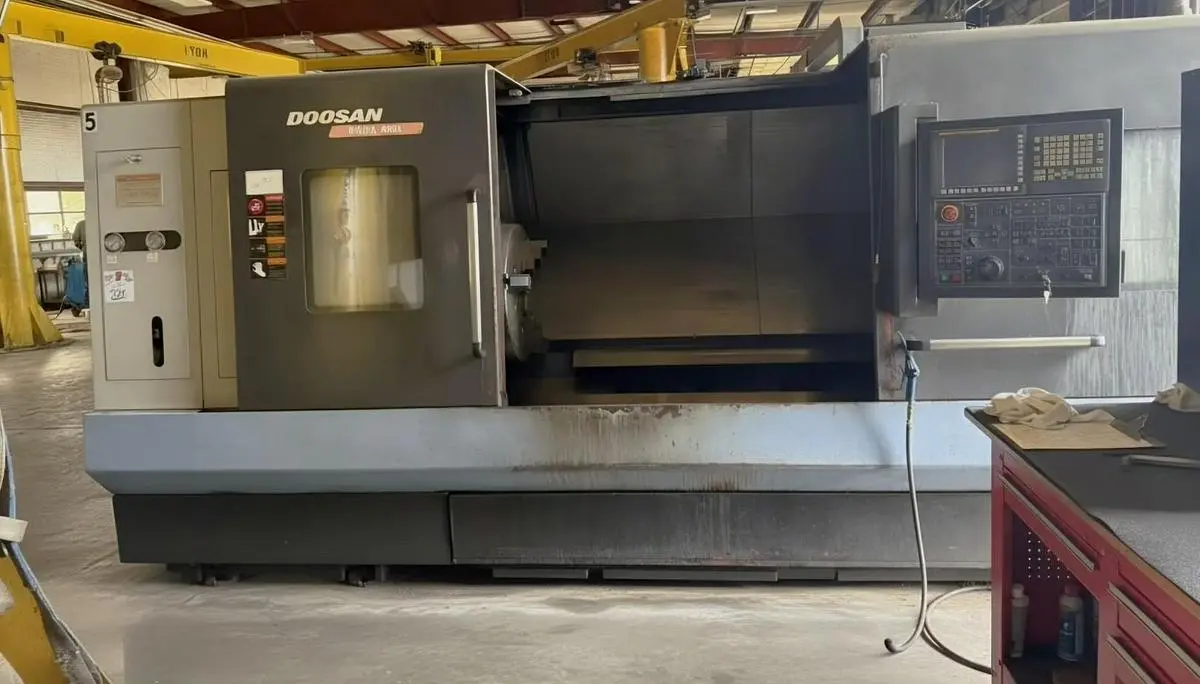

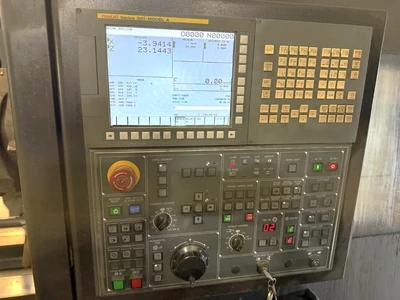

The 2012 Doosan Puma 480L CNC Lathe is a reliable piece of machinery designed for precise and efficient turning operations. It features a robust Fanuc 31i-A Control and comes with a 24" Samchully hydraulic chuck, capable of handling a maximum swing of 35.4 inches and a turning diameter of up to 25.6 inches. The lathe offers a substantial turning length of 82.6 inches and supports a bar capacity of 6.5 inches, making it suitable for various large-scale applications.

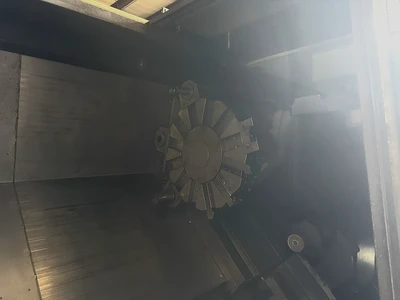

This machine is equipped with a powerful 60 HP spindle motor, delivering speeds up to 1,500 RPM supported by a gearbox, ensuring smooth and consistent performance. The Z-axis travel measures 84.8 inches, accompanied by a 14.3-inch X-axis travel, with rapid traverse rates of 630 IPM on the X-axis and 394 IPM on the Z-axis. The machine includes a 12-position turret for versatile tooling options and a tailstock with a 4.7-inch quill diameter and MT #5 center, with a quill travel of 4.7 inches.

Additional features include a chip conveyor for improved waste management and efficient operation. The machine measures 235" x 96" x 91" in dimensions and weighs approximately 24,500 lbs., making it a substantial unit for industrial settings. The Doosan Puma 480L is well-suited for high-precision, heavy-duty machining tasks.
