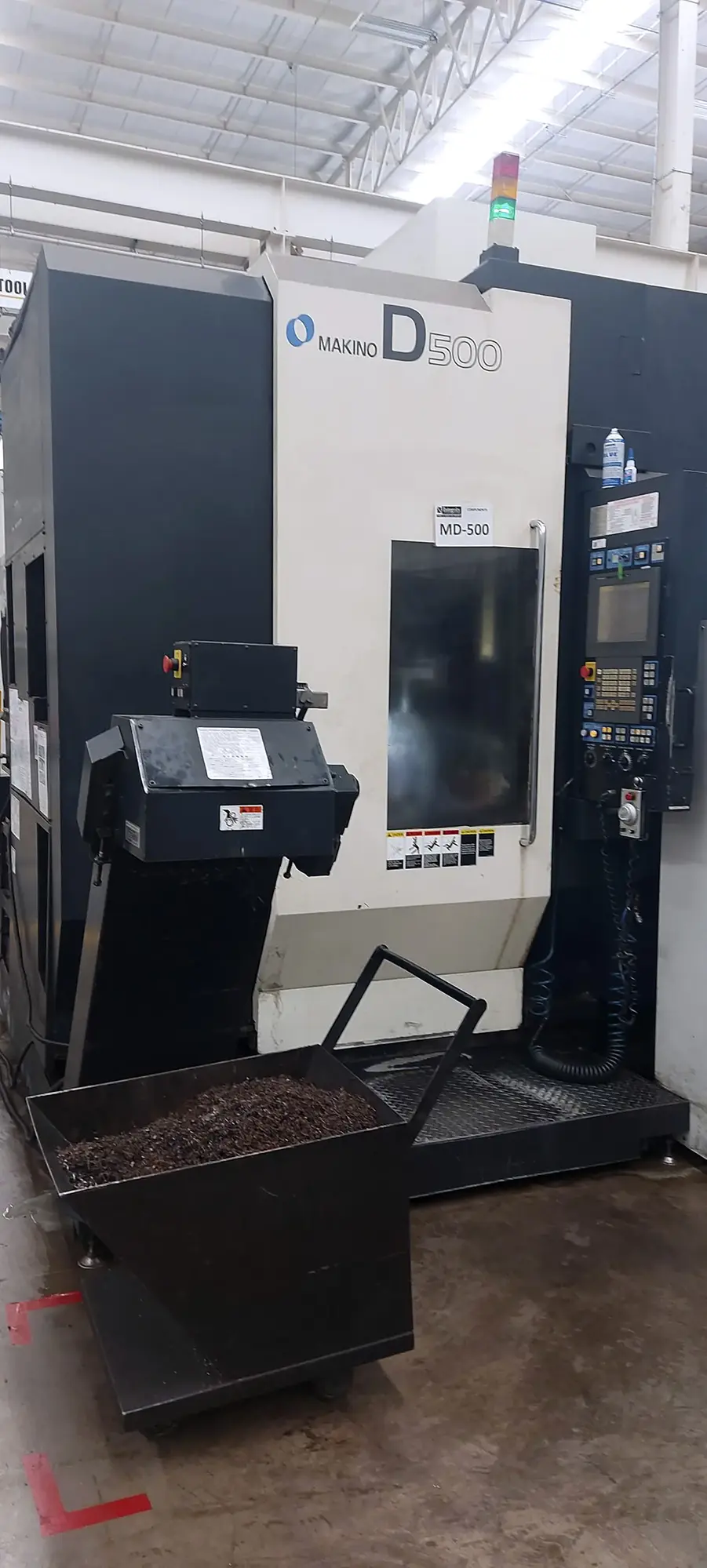

USED 2008 Makino D500
Overview
The Used 2008 Makino D500 5-axis machining center delivers high-precision milling of complex parts with excellent surface finishes. Ideal for aerospace, medical, automotive, and die and mold manufacturing, this versatile CNC machine handles intricate geometries and demanding production requirements. Upgrade your machining capabilities with this proven precision solution.
Specs
X-Axis Travel: 21.65"
Y-Axis Travel: 39.37"
Z-Axis Travel: 19.69"
A-AXIS (TILT): +30 / -120 DEGREES
C-Axis (Rotary): 360 DEGREES CONTINUOUS
Table Diameter: 19.7" (500 MM)
Maximum Workpiece Size: 25.6" DIA X 19.7" H
Maximum Table Load: 772 LBS
Maximum spindle speed: 14,000 RPM
Spindle Taper: HSK-A63
RAPID TRAVERSE RATE (Y/Z): 1,968 IPM
Machine Size: 140" L X 114" W X 126" H
Machine Weight: APPROX. 34,600 LBS
Equipped With

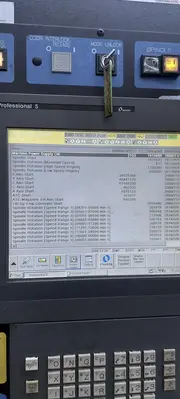

Makino Professional 5 Control (Fanuc based)

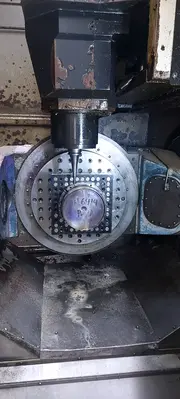

Simultaneous 5-Axis (A/C Tilting Trunnion Table)
14.000 RPM Spindle
HSK-A63 Spindle Taper
Coolant Thru Spindle

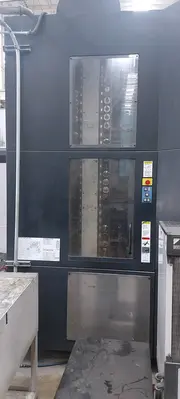

Automatic Tool Changer
Remote ATC Magazine Operator Panel
Grid Fixture Plate on Rotary Table
Lift-Up Chip Conveyor with Chip Cart
3-Color Stack Light
