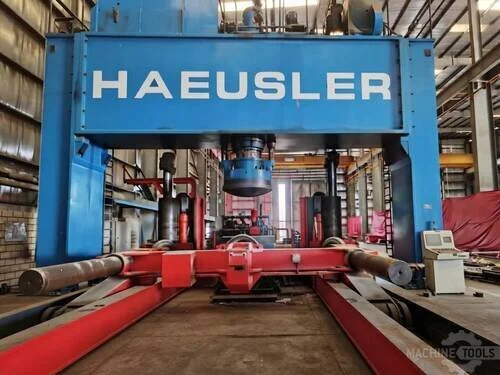

USED HAEUSLER HKP 9000/1000

Max. force 1000 Ton
Retraction force 82.5 Ton
Approach speed 260 mm/Sec
Working 10 - 30 mm/Sec
Return speed 370 mm/Sec
Pressure 253 Bar
Distance between column 9000 mm
Dimensions table plate 1500 x 1500 mm
Max Work piece diameter 8700 mm
Thickness at yield 450 N/mm2 90 mm
Manipulator:
Max. dimanions 8700 x 90 mm
Min. dimensions table 1500 x 1500 = 3200 mm
Min. dimensions table 700 x 700 = 2200 mm
Work piece weight 42.000 Kg
Travelling speed 158 M/Sec
Power 165 kW
Weight 43000 Kg
Optional Dishing Dies (Gray GG-25)

RUW 925 with    1500 diameter x R   950 – 1300 mm
RUW 1205 with 1500 diameter x R 1305 – 1700 mm
RUW  1520 with 1500 diameter x R 1705 – 2200 mm
RUW 1905 with 1500 diameter x R 2205 – 2800 mm
RUW 2395 with diameter 1500 x R 2805 – 3500 mm
RUW 2885 with diameter 1500 x R 3505 – 4300 mm
RUW 3515 with diameter 1500 x R 4305 – 5200 mm
RUW 4215 with diameter 1500 x R 5205 – 6200 mm
RUW 4985 with diameter 1500 x R 6205 – 7300 mm
RUW 925 with    1500 diameter x R   950 – 1300 mm
RUW 1205 with 1500 diameter x R 1305 – 1700 mm
RUW  1520 with 1500 diameter x R 1705 – 2200 mm
RUW 1905 with 1500 diameter x R 2205 – 2800 mm
RUW 2395 with diameter 1500 x R 2805 – 3500 mm
RUW 2885 with diameter 1500 x R 3505 – 4300 mm
RUW 3515 with diameter 1500 x R 4305 – 5200 mm
RUW 4215 with diameter 1500 x R 5205 – 6200 mm
RUW 4985 with diameter 1500 x R 6205 – 7300 mm
