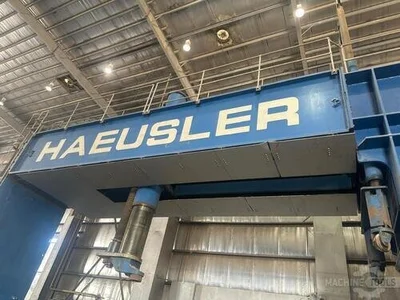

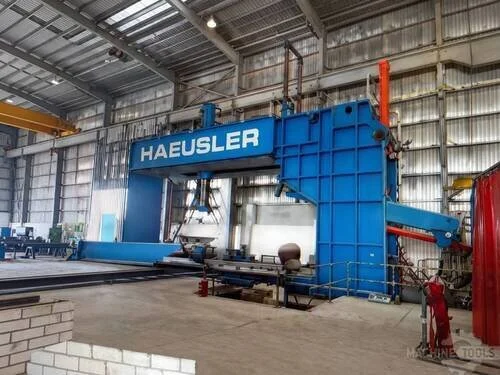

USED HAEUSLER HBM-HY 7000 X 90

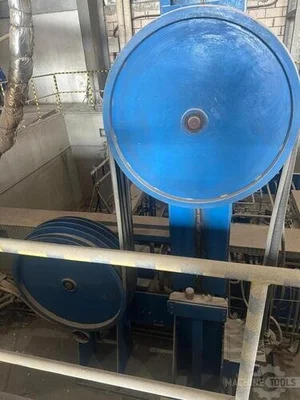

Forming and Flanging rollers:
inclines positon 0 - 25 Degrees
Rotation sopeed 0 - 200 M/Min
Rapid adjustment speed 2500 mm/Min
Crawling speed 0 - 1200 mm/Min
Sleeve hydro mechanical rapid speed 6000 mm/Min

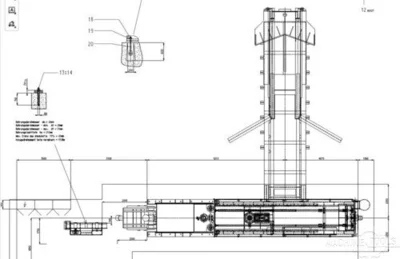

Infeed carriage:
Work piece weight 42.000 Kg
Max. dished head 8300 mm
Min. dished head 1900 mm
Speed 20 M/Sec
Centering Automatic

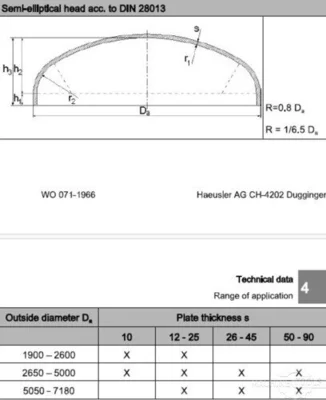

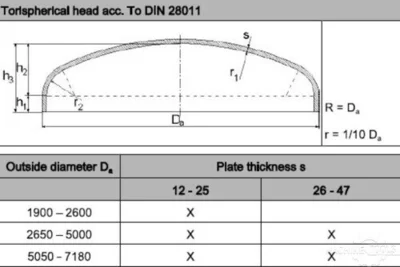

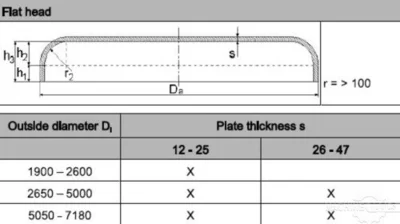

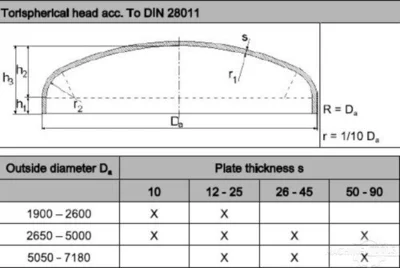

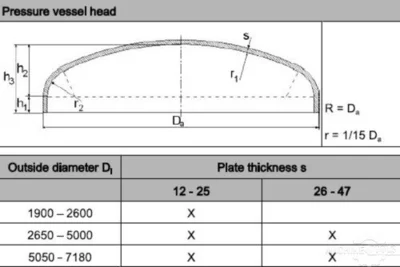

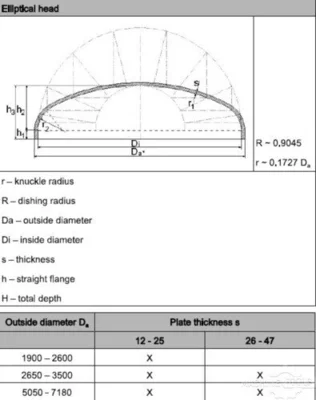

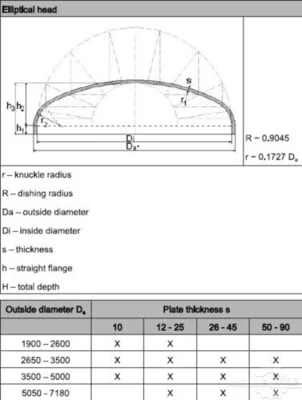

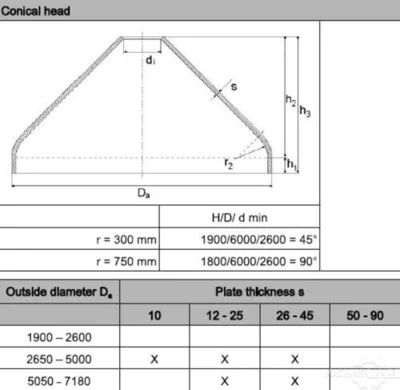

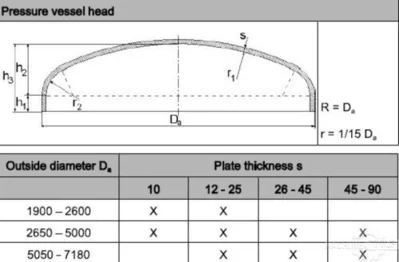

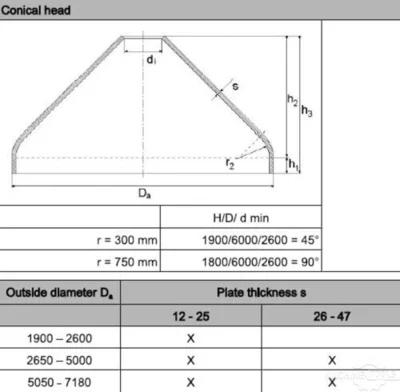

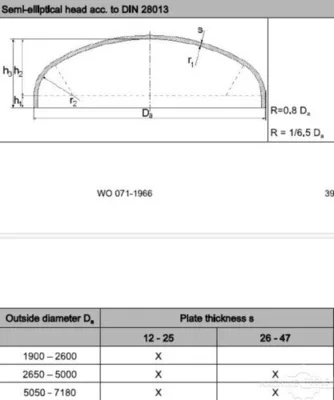

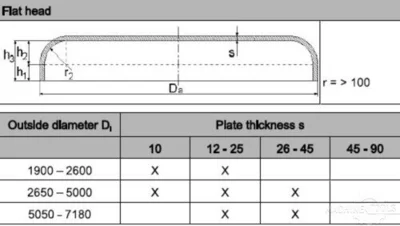

Data of Workpiece:
Cold 360 N/mm2 45 mm
Hot 360 N/mm2 90 mm
Min Knuckel Radius 100 mm
Max. Knuckel Radius 1200 mm
Min thickness dished 10 mm
Head diameter without device 2600 mm
Head diameter with device       1900 mm
Length off straight flange at flanged head 3,5 x thicness = 140 mm
Hydraulic tank 2000 Liter
Power 350 kW
Form roller changing device in combi with lifgting sleeve
Auxiliary device for flanging heads from 1900 - 2600 x 25 mm thickness
Measuring device outer diameter and knuckle radius of flanged head
Optional Forming Rolls for hot and cold flanging
FR-50
FR-100
FR-150
FR-200
FR-250
FR-300
FR-350
FR-400
FR-450
FR-500
FR-550
FR-600
FR-650
FR-700
FR-750
FR-800
FR-850
FR-900
FR-950
FR-1000
FR-1050
FR-1100
FR-1150
FR-1200
FR-1250
