USED 2018 MURATEC MW-120G

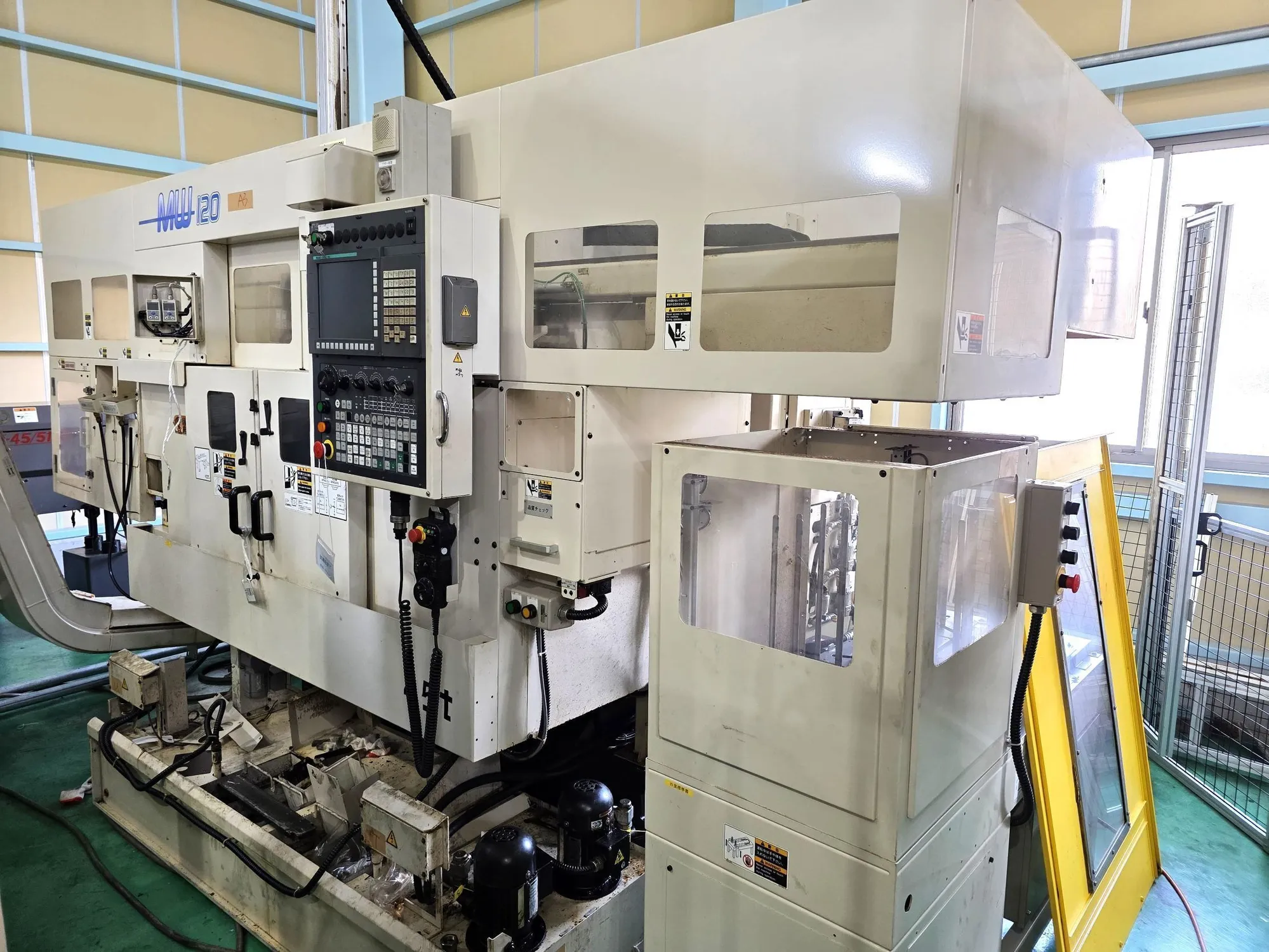

2018 Muratec "Murata" MW120G CNC Twin Spindle Turning Center w/Overhead Gantry Loader with Fanuc 31iTB CNC Control and All Options (1) 14 Pallet Stocker Feeder Tables and Installed Work holding and Tool Holder List in Process

Main Specifications
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 6/8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"

Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Workpiece Weight: 8 lb x 2

Equipped with:
Fanuc 31iTB CNC Control, Overhead Gantry Loader, Rear Chip Conveyor, Muratec (14) Pallet Stocker Feeder Table, Coolant Tank and Pumps Installed Work Holding & Tool Holder List in Process
All Available Books & Manuals

Special Reduced Price Please Email Requests for Quotations.

F.O.B: Machine Prep & Rigging is Required
Terms: Payment in Full Prior to Shipment.
