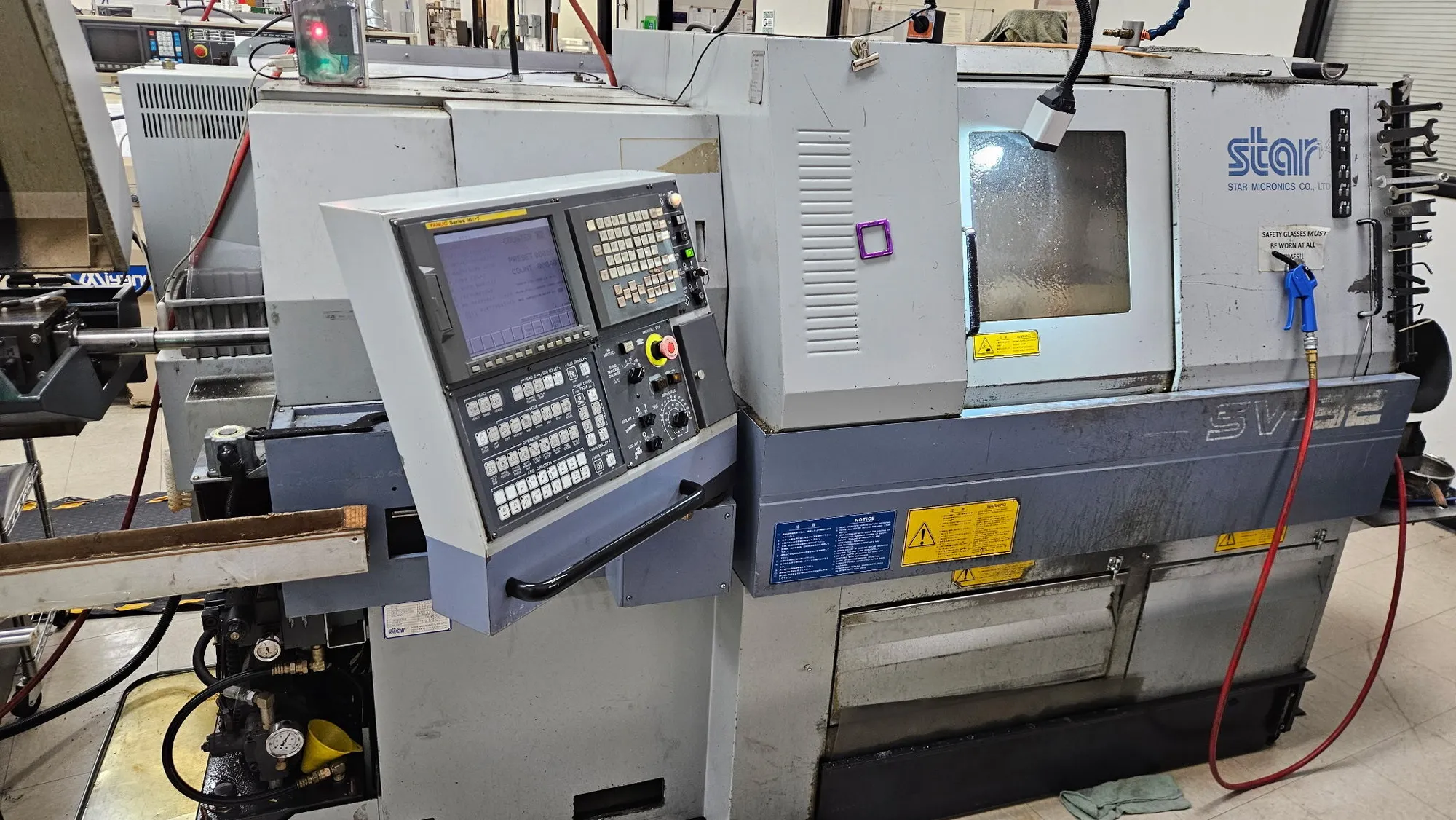

USED 1999 STAR SV-32

Max Turning Diameter...................1-1/4"
Headstock Stroke.......................11-13/64"
with gripping unit.....................11-4/5"
Headstock Spindle Speeds...............350 - 7,000 RPM
Spindle Indexing.......................15 Degree
Drilling Capacity......................Stationary Tool 3/4"
Power Driven Tool......................Gang Tool Post 5/16"
Number of Tools........................4 tools+3 power-driven opt
Turret.................................8 stations
Tool Shank.............................16 x 135mm
Turret.................................16 x 70mm
Tapping Capacity.......................Turret M12 x P1.75
Milling Capacity.......................25/64"
Max. Die Cutting Capacity..............M12 x P1.75
Main Spindle Motor.....................5.5kw (cont)/7.5kw (30 min)
Main Spindle Bore Diameter.............1 1/2"
Gang Tool Post Power Driven Tool.......Spindle Speed max. 6,000min opt
Motor..................................0.5kw (servo drive)
Power Consumption......................8.0kva
Backworking Attachment:
Max. Chucking Cap......................1-1/4"
Drilling Capacity......................1/2"
Tapping Capacity.......................M12 x P1.75
Spindle Speeds.........................350 - 7000 rpm
Sub-spindle Motor......................2.2kw(continuous)/3.7kw(15min)
Approximate Machine Weight.............3,800 kg (8,800 lbs)
