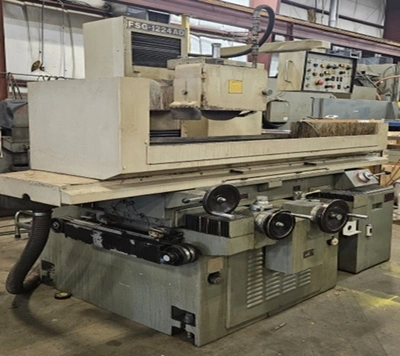

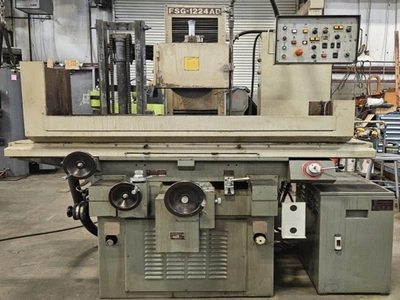

USED 1987 CHEVALIER FSG-1224AD

Used
Chevalier 12″ × 24″ Automatic Surface Grinder

Grinding Capacity

Grinding Capacity

12″ × 24″

Spindle Centerline to Table Max

24″

Grinding Wheel Size

14″ × 2″ × 5″

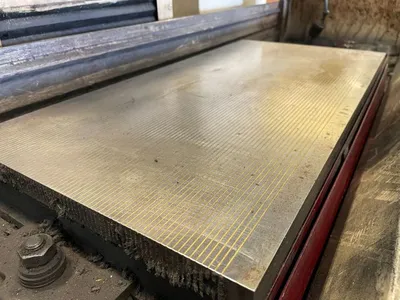

Electro-Magnetic Chuck Size

11-3/4″ × 23-5/8″

Table Travel & Feed

Longitudinal Table Travel

25-5/8″

Cross Table Travel

12″

Table Speed Variable

5 to 25 FPM

Incremental Down Feed

0.00005″ – 0.002″

Automatic Cross Feed

0.005 IPR

Power Elevation

8 FPM

Spindle

Spindle Speed

3,450 RPM

Spindle Motor

5 HP

Electrical & Motors

Electrics

240/480 V, 3 PH — currently wired 480V

Hydraulic Motor

2 HP

Equipped With

3 axis auto feed

Coolant tank and pump

Over-the-wheel dresser

Electro-magnetic chuck

Footprint & Weight

Overall Size (Approx.)

100″ L-R × 60″ F-B × 80″ H

Weight (Approx.)

5,500 lbs
