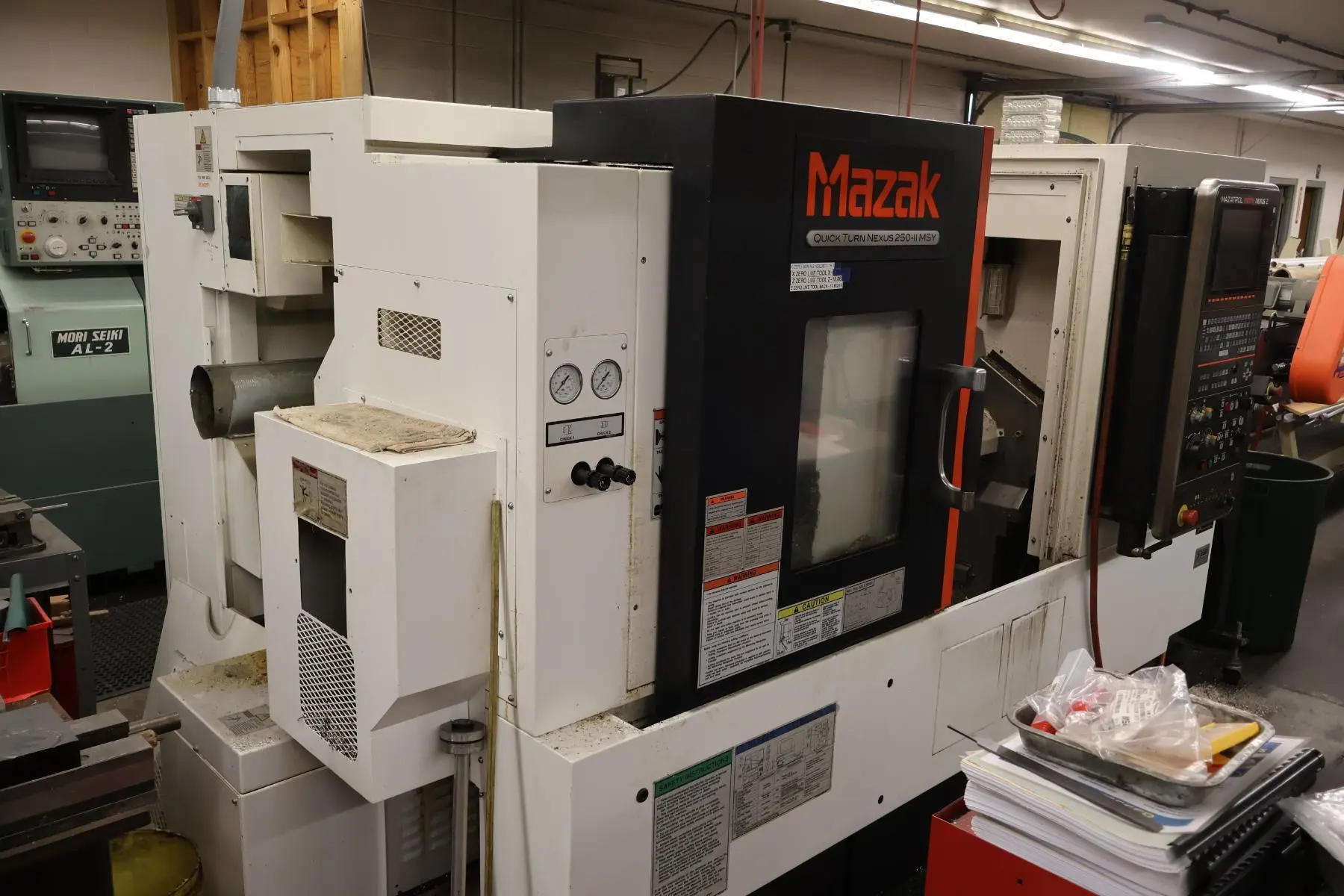

USED 2014 MAZAK CORPORATION QTN 250MSY-II

CNC Turning Center with Sub-Spindle
Manufacturer: Mazak Corporation (Made in USA)
Model: QTN 250MSY-II
DOM: 01-14 (2014)
Electrics: 208 Volts, 3 Phase, 50-60 Cycle
Main Motor: 35 HP

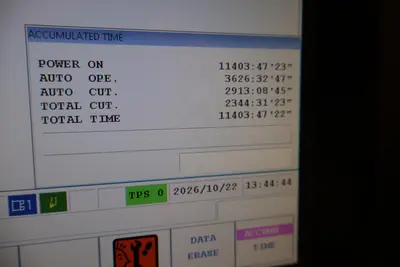

Hours:
...Power On: 11,404
...Auto Operation: 3627
...Auto Cut: 2913
...Total Cut: 2345

Features and Specifications:
...CNC Controls: Mazak Matrix Nexus 2
......Supports Conversational Mazatrol & EIA/ISO Programming
...Tool Presetter (tool eye)
...Max. Swing Over Bed: 26.57"
...Max. Turn Diameter: 14.96"
...Max. Turn Length: 21.27"
...Max. Bar Capacity: 3.03"
...Chuck Size: 10"
...C-Axis Indexing: 0.0001° Increments
...Axis Travels:
......X-Axis: 9.05"
......Y-Axis: 2.00"
......Z-Axis: 22.63"
...Main Spindle Specs:
......Max. Speed: 4,000 RPM
......Bore: 3.58"
......Nose: A2-8
...Sub-Spindle Specifications:
......Chuck Size: 6"
......Speed: 6,000 RPM
......Power: 15 HP
...Turret & Live Tooling (Milling)
......12-Position VDI Turret
......Rotary/Live Tool Speed: 4,500 RPM
......Rotary Tool Power: 7.5 HP
...Foot Pedal
...Auto-Industrial Lubrication System
...Chip Conveyor
...3-Jaw 10" Quick-Change Power Chuck
...3-Jaw, 6" Sub-Spindle Chuck
......Kitagawa B-200 Series Power Chuck"
......1.77" Through-Hole
...Live and Static Tool Holders
...Manuals

CNC Unit Dimensions (approx.) 119" x 73" x 72"
Scrap Conveyor Dimensions (approx.): 50" x 24" x 64"
CNC Unit Weight (approx.): 12,600 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Machine is owned by a CNC and Manual machine shop who has been in business for 30 years. He is closing up shop, retiring. Some equipment is going to his home shop. I am working on liquidating the remaining units.

This is a nice unit; he is the original owner. I do not have video because they were not running machine on my visit. However, unit is under power and making production parts. Please call if you want to schedule a lookie loo.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Vancouver, WA Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading, and freight quotes.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
