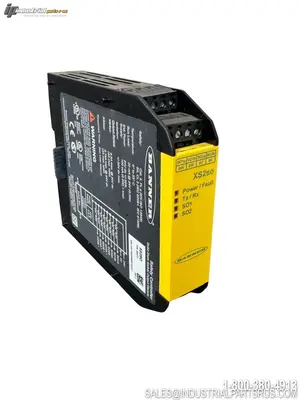

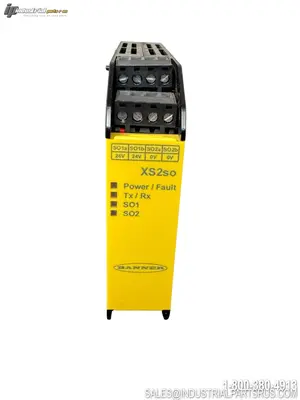

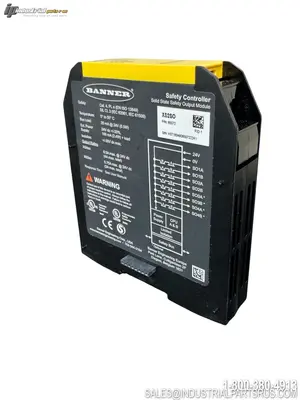

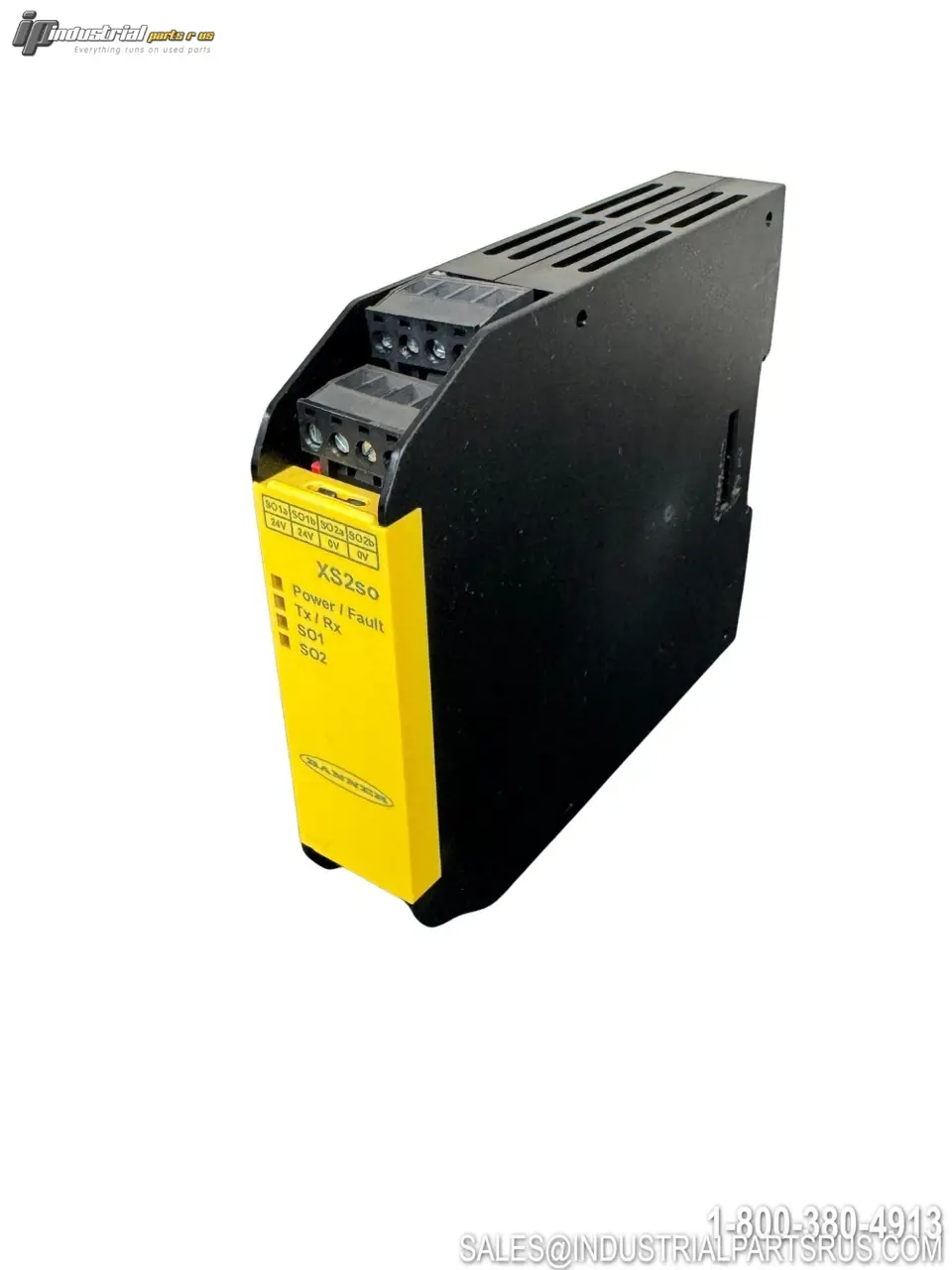

USED BANNER XS2SO

The Banner Engineering XS2SO is a Dual Channel Solid-State Safety Output Expansion Module designed for use with the XS26-2 Expandable Safety Controller series. It provides 2 pairs (4 independently controlled outputs) of PNP OSSD solid-state safety outputs rated at 0.75 A each at 24 V DC, enabling scalable machine safeguarding for a wide variety of industrial automation applications. The module mounts on a DIN rail, features removable screw terminals, and achieves the highest functional safety ratings: Category 4, PLe (EN ISO 13849) and SIL 3 (IEC 62061 / IEC 61508).
Specification
Value
Brand
Banner Engineering
Model / Part Number
XS2SO
Manufacturer Part Number (Alt)
85072
Series
XS / XS26 Expandable Safety Controller
Product Type
Safety Controller Expansion Module – Solid-State Output
Compatible Base Controller
XS26-2 Safety Controllers
Supply Voltage
24 V DC ±20% (19.2 V DC min / 28.8 V DC max)
Output Type
Solid-State PNP (OSSD)
Output Configuration
2 OSSD Pairs (4 independently controlled safe outputs)
Safe Output Rating
0.75 A max @ 24 V DC (1.0 V DC max drop)
Inrush Current
2 A max
Output Off Threshold
1.7 V DC typical (2.0 V DC max)
Output Leakage Current
50 µA max with open 0 V load
Max Load
0.1 µF max, 1 H max, 10 Ω max per lead
Non-Safe Output Configuration
Up to 4 PNP
Splittable Safe Output
Yes
Power Consumption
3.075 A (external load maximum)
Safety Category Rating
Category 4 (EN ISO 13849)
Performance Level
PLe
SIL Rating
SIL 3 / SIL CL 3 (IEC 62061, IEC 61508)
PFH (PFHd)
5.8 × 10⁻¹⁰ [1/h]
Proof Test Interval
20 years
IP / Enclosure Rating
IP20 (NEMA 1); for use inside NEMA 3 (IP54) or better enclosure
Mounting Type
DIN Rail
Terminal Type
Removable Screw Terminals
Wire Size
24 to 12 AWG (0.2 to 3.31 mm²)
Wire Strip Length
7 to 8 mm (0.275 in to 0.315 in)
Tightening Torque
0.565 N·m (5.0 in-lb)
Operating Temperature
0 °C to +55 °C (32 °F to +131 °F)
Relative Humidity
90% @ 50 °C
Dimensions (H × W × D)
110 × 22.5 × 129 mm
Material
Plastic
Expandable
Yes
Vibration
9–150 Hz at 1g occasional / 0.5g continuous (per IEC 61131-2)
Shock
15 g for 11 ms, half sine, 18 shocks total (per IEC 61131-2)
EMC Compliance
IEC 61131-2, IEC 62061 Annex E, IEC 61326-1:2006, IEC 61326-3-1:2008
Certifications
CE, cULus, UL
Part Status
Active
We warranty all items for 30 days from date of purchase.
