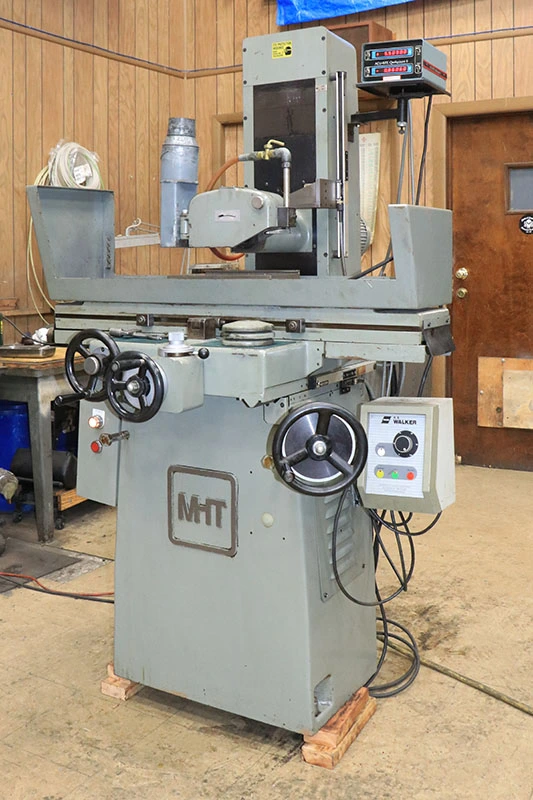

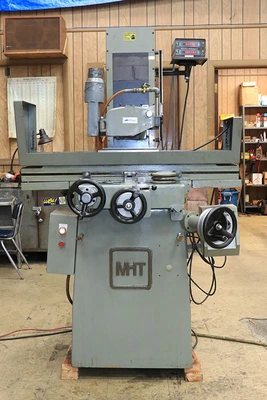

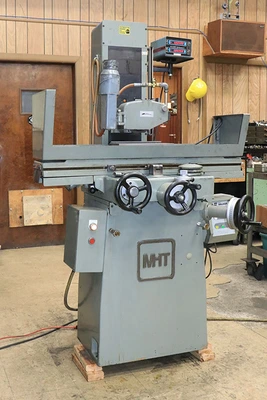

USED 1985 MITSUI MSG200MH, NEW 1985, FF OPTION FOR CROSS (.00050")

  6" X 12" MITSUI "HIGH-PRECISION" (MADE IN JAPAN)

  HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE

  ** FINE FEED CROSS AXIS (0.000050" GRAD.)

  **  ACU-RITE 2-AXIS DIGITAL READOUT DISPLAY **

  MODEL: MSG-200MH      S/N: 85045753       NEW: 1985

  WIDTH& LENGTH GROUND ...................... 6" X 12"

  TABLE TO SPINDLE CENTER ................... 18"

  HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .... 11"

  LONGITUDINAL TABLE TRAVEL ................. 15"

  CROSS TRAVEL .............................. 8"

  GRINDING WHEEL CAPACITY ............... 8" x 3/4" x 1-1/4"

  CROSS FEED PER REV. OF HANDWHEEL

  (.001" GRAD.) ............................. 0.100"

  VERTICAL FEED PER REV. OF HANDWHEEL

  (.0001" GRAD.) ............................ 0.0500"

 FINE FEED SYSTEM FOR CROSS FEED, GRAD. TO .. 0.00005"

  APPROX. WEIGHT ............................ 1,500 LBS.

  APPROX. DIMENSIONS ........................ 58" X 46" X 71"H

  EQUIPPED WITH:

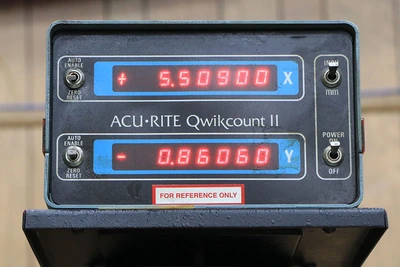

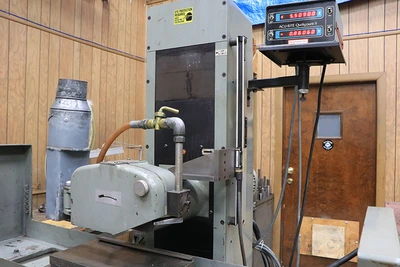

  "ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY

  FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRADUATION ON DIAL

  TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)

  MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...

  DRIVEN BY CABLE SYSTEM

  HARDENED & REPLACEABLE STEEL WAYS ON TABLE,

  CARRIAGE/SADDLE & COLUMN

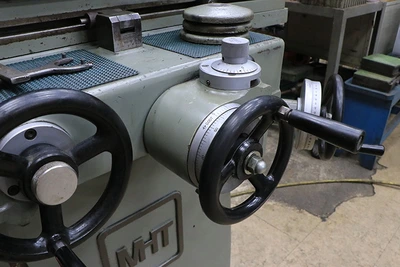

    CROSS FEED HANDWHEEL (.0001" VERNIER)

  PRECISION CARTRIDGE SPINDLE DESIGN

  1-1/3 HP SPINDLE MOTOR

  AUTOMATIC LUBRICATION SYSTEM

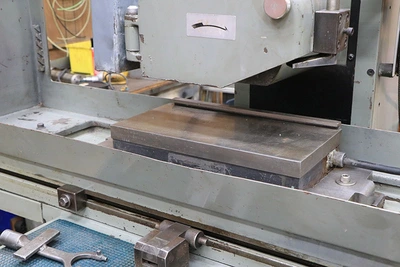

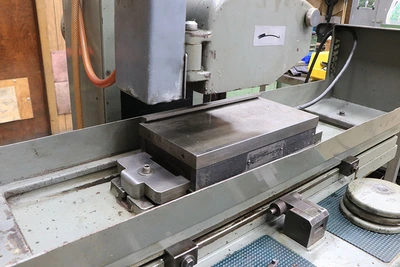

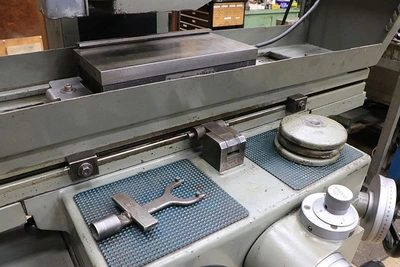

  6" X 12" "O.S. WALKER" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

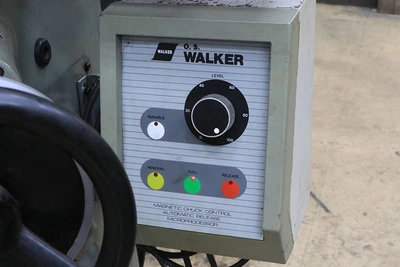

  O.S. WALKER "SMART SERIES" VARIABLE HOLD CHUCK CONTROLLER

  HAS OPTIONAL COOLANT GUARDING, COOLANT PUMP & TANK

    CAN BE PROVIDED FOR ADDITIONAL COST

  MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS

  LINK TO VIDEO:  https://youtu.be/tdrPDSsUQPw

  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **

  ** EXCLELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
