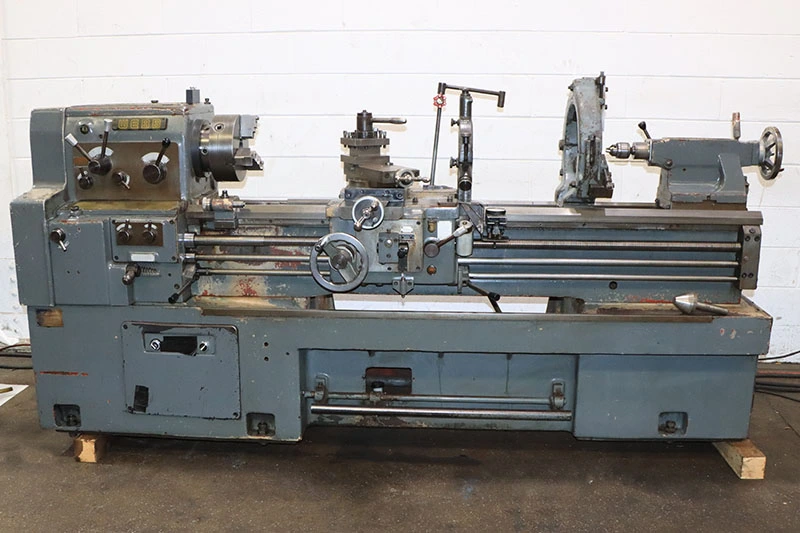

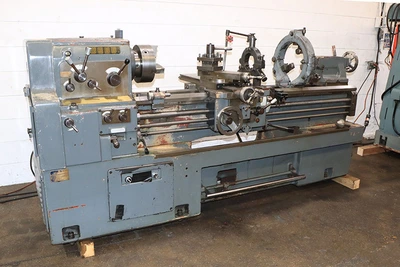

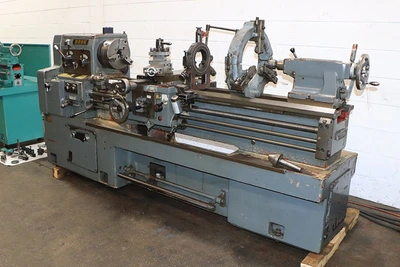

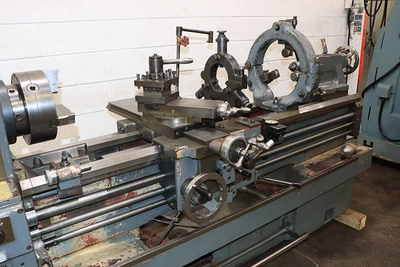

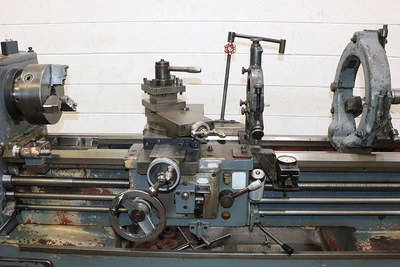

USED 1984 Webb WL435 / 17"x59"

17"/25-1/2" x 59" WEBB GAP BED ENGINE LATHE

MODEL: WL435, S/N: 9-8101-35, YEAR: 1984

SPECIFICATIONS:

SWING OVER BED ....................... 17-1/8"

SWING IN REMOVEABLE GAP .............. 25-9/16"

SWING OVER CROSS SLIDE ............... 9-3/4"

HOLE THRU SPINDLE .................... 2-3/64"

DISTANCE BETWEEN CENTERS ............. 59"

SPINDLE NOSE ......................... D1-6" CAMLOCK

BED WIDTH ............................ 13-3/4"

SPINDLE SPEED RANGE (12) ............. 32 - 1800 RPM

LONGITUDINAL FEED RANGE  ............. .0018 - .0247 IPR

CROSS FEED RANGE ..................... .00156 - .011 IPR

ENGLISH THREADING RANGE  ............. 4 - 80 TPI

METRIC THREADING RANGE ............... .25 -7mm

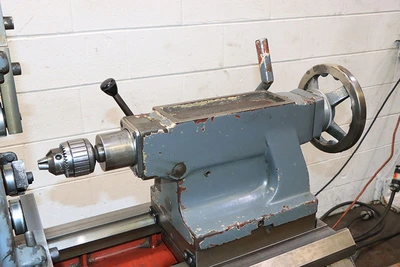

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4MT

APPROX WEIGHT ........................ 5,500 LBS

EQUIPPED WITH:

INCH/METRIC THREADING CAPABILITY

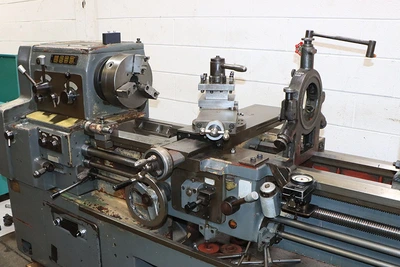

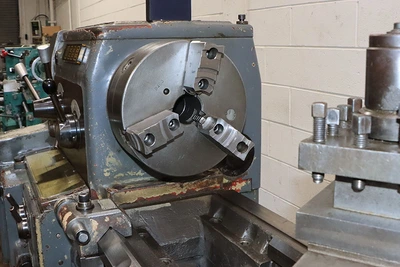

10" 3-JAW CHUCK

17" FACEPLATE

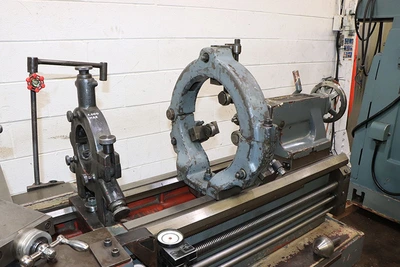

(2) STEADY RESTS

FOURWAY TOOLPOST

TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

THREAD DIAL INDICATOR

MICROMETER CARRIAGE STOP

COOLANT SYSTEM

FOOTBRAKE

HARDENED & GROUND BEDWAYS

5 HORSE POWER MAIN MOTOR - 220/440 VOLT 3 PHASE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
