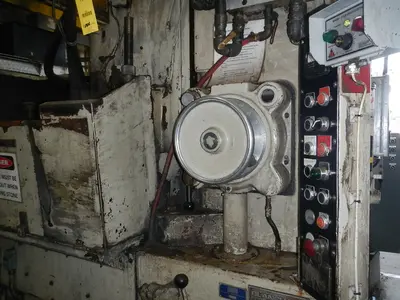

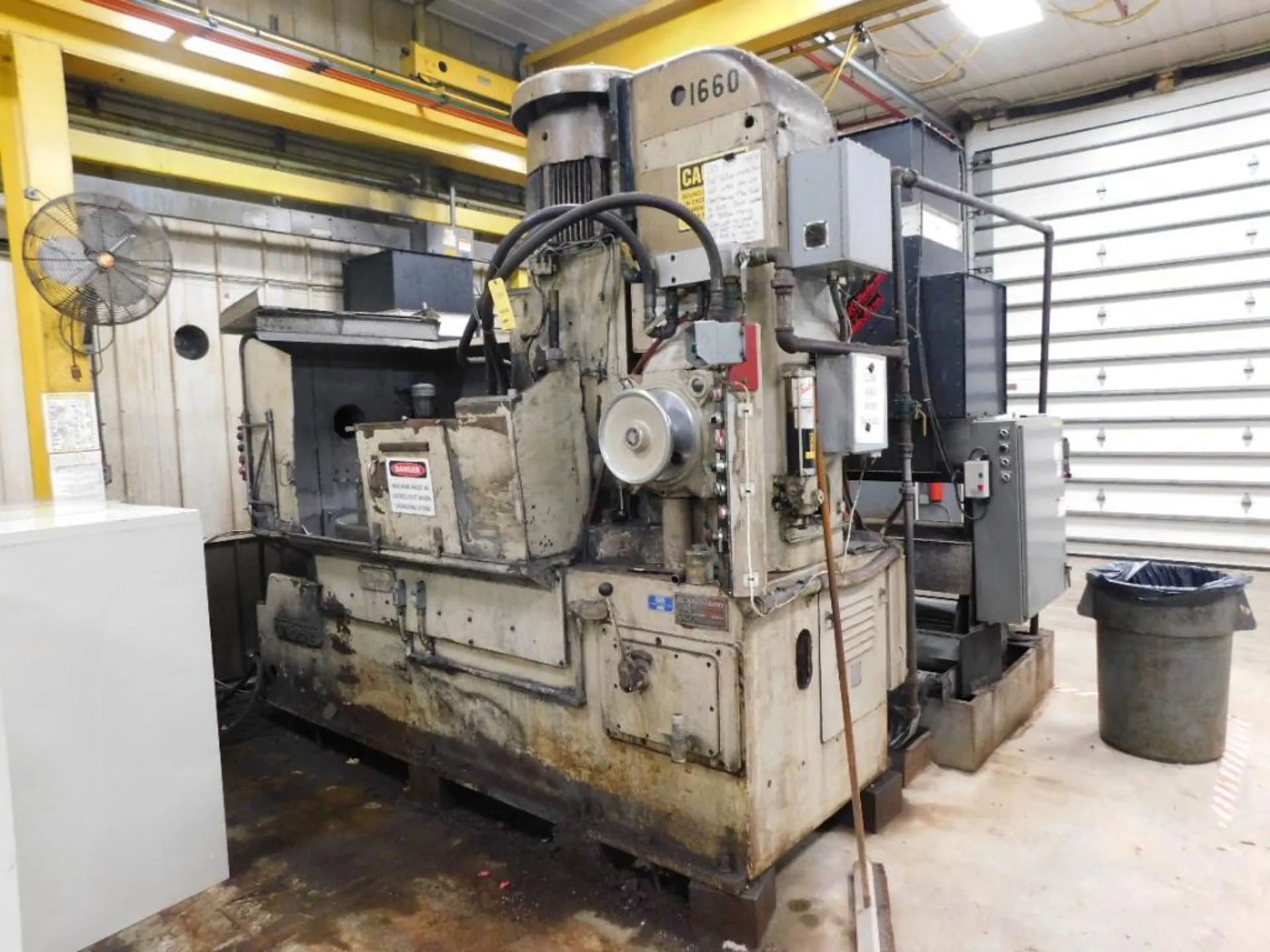

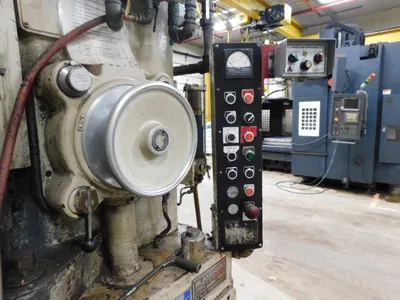

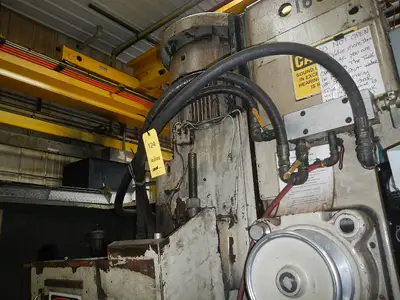

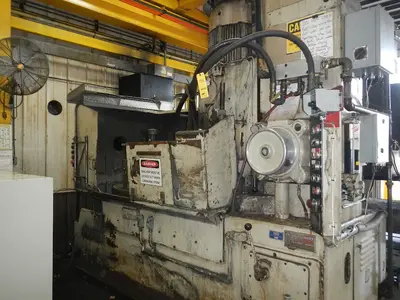

USED 1985 Blanchard 22HD-42, 1985, GEARED HEAD, 3/8" CHUCK LIFE

                42" Blanchard

           "Geared Head" 100 H.P.

   Vertical Spindle Rotary Surface Grinder

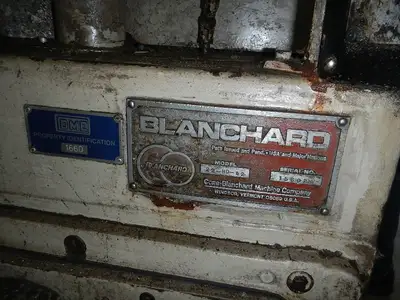

Model No. 22HD-42    S/N: 15602    New: 1985

Specifications:

22" Grinding Wheel Diameter

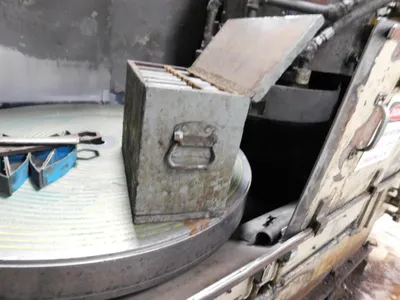

42" Magnetic Chuck Diameter

48" Swing Inside Water Guards

24" Vertical Range, Standard

3000 LBS. Maximum Load on Chuck

100 HP Grinding Wheel

230/460 Volt, 1775 RPM, 224/112 Amp, Main Drive Motor

Geared Head Design

Pick-Feed Type of Down Feed System

0.004-.080 IPM Down Feed Rates

6 to 33 RPM Chuck Rotation Speeds

Automatic Lube System

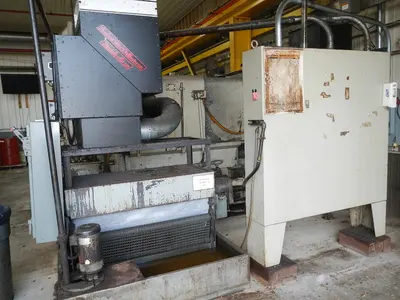

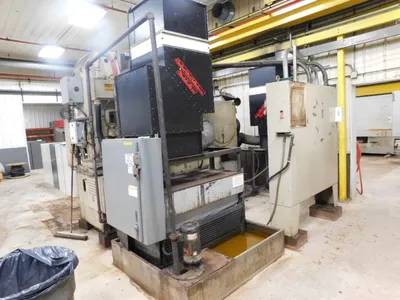

"Barnes" Model MPE-25 Coolant System, with

 Both Paper Filtration & a Magnetic Separator

Machine is Wired for 3/60/460 VOLTS, 136 FLA

17,000 LBS. Approximate Base Weight

Approximate Dimensions:

Grinder-64"D x 144"L x 114"H

Electrical Panel- 60"W x 78"H

** INSPECT IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION - MACHINE WAS MAINTAINED

    WELL, WE CAN PROVIDE YOU WITH THE GENTLEMAN

    WHO PERFORMED THE "PM" AT THE FORMER

    OWNER'S SHOP. **

 Link to video: https://www.youtube.com/watch?v=5WNHhc4-KmQ

FOR MORE INFORMATION: Call Andy at 973-497-7600
