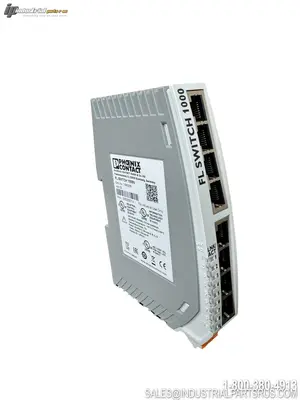

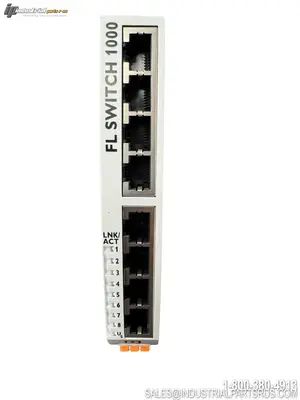

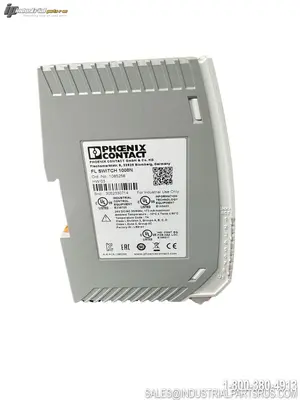

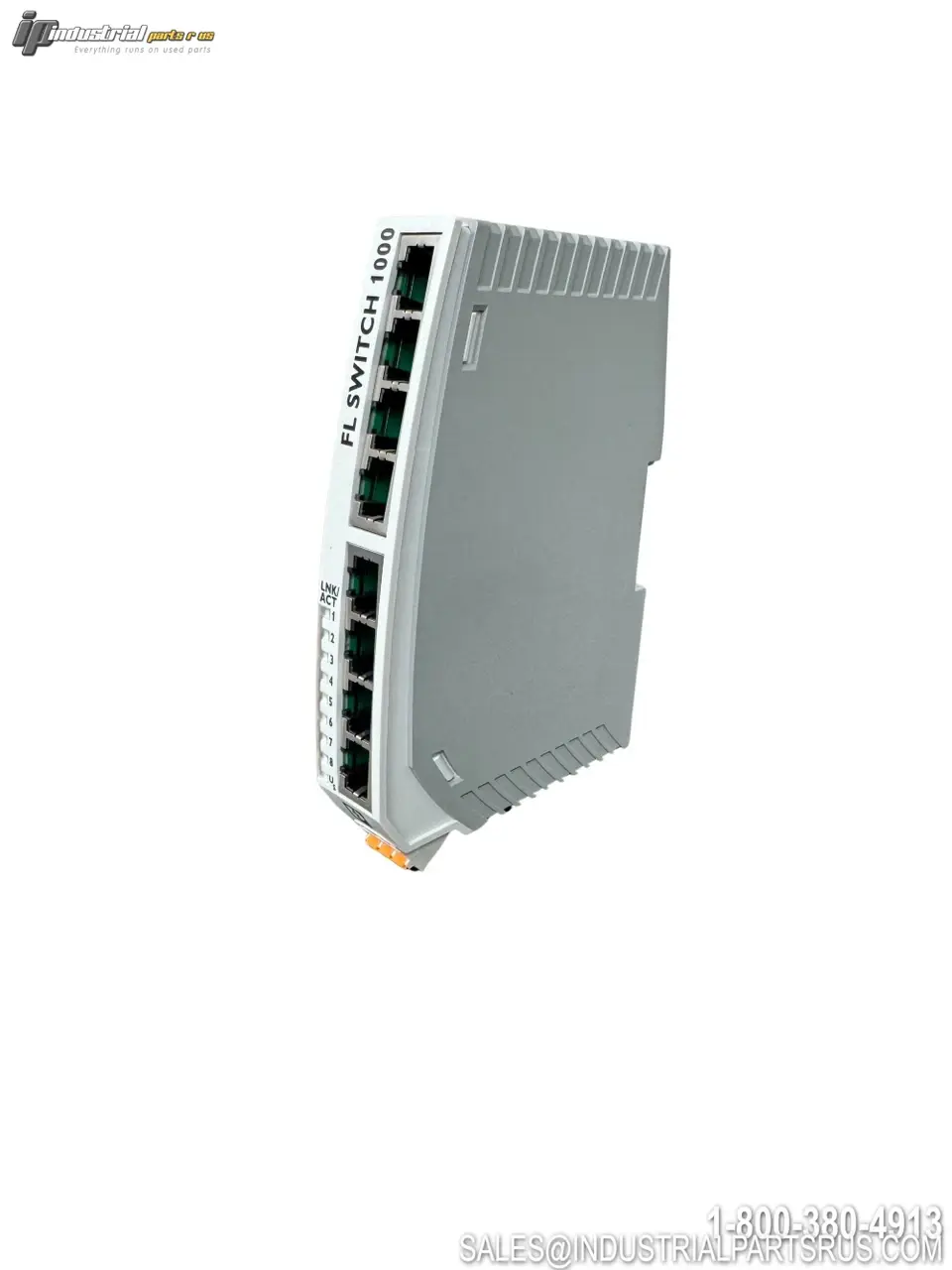

USED PHOENIX CONTACT FL SWITCH 1008N

The Phoenix Contact FL Switch 1008N (Part No. 1085256) is a compact, unmanaged industrial Ethernet switch featuring eight RJ45 ports, each supporting 10/100 Mbps auto-negotiation data transmission. Designed for demanding industrial environments, it supports PROFINET Conformance Class A, Quality of Service (QoS) prioritization, and Energy-Efficient Ethernet per IEEE 802.3az. The switch mounts on standard DIN rail and is housed in a narrow, reinforced polycarbonate enclosure just 22.5 mm wide. With an MTTF of 133.9 years (MIL-HDBK-217F, 25 °C, 100% duty cycle), this switch is built for long-term reliability in automation and process control applications.
Specification
Value
Brand
Phoenix Contact
Model / Part Number
FL Switch 1008N
Article / Item Number
1085256
Product Type
Unmanaged Industrial Ethernet Switch
Number of Ports
8 × RJ45
Transmission Speed
10/100 Mbps (Auto-Negotiation)
Transmission Physics
Ethernet in RJ45 twisted pair
Transmission Length
100 m per segment
Switching Mode
Store and Forward
MAC Address Table
2K entries
PROFINET Conformance Class
Class A
Network Standards
IEEE 802.3, 802.3u, 802.1p, 802.3az
Supply Voltage (DC Nominal)
24 V DC
Supply Voltage Range (DC)
9 V DC – 32 V DC
Supply Voltage (AC Nominal)
24 V AC (50/60 Hz)
Supply Voltage Range (AC)
18 V AC – 30 V AC (50/60 Hz)
Max Current Consumption
173 mA (at 9 V DC)
Max Power Dissipation
4.152 W (at 24 V DC)
Static Power Loss
1.557 W
Residual Ripple
3.6 V PP (within permitted voltage range)
Power Supply Connection
Via COMBICON plug-in connector, push-in spring connection
Conductor Cross Section (Rigid)
0.2 mm² – 2.5 mm²
Conductor Cross Section (AWG)
AWG 24 – AWG 12
Mounting Type
DIN Rail
Width
22.5 mm
Height
140.4 mm (147.5 mm with connector)
Depth
92.4 mm
Housing Material
Polycarbonate, fiber reinforced
Housing Color
Gray (RAL 7042)
Cover Color
Light Gray (RAL 7035)
Degree of Protection
IP30
Operating Temperature
-10 °C to +60 °C
Diagnostic Indicators
LEDs: US, link and activity per port
EMC Classification
Class A
Certifications
UL, FCC Class A, CB
GTIN / EAN
4055626833590
Weight (excluding packaging)
174 g
Weight (including packaging)
255 g
We warranty all items for 30 days from date of purchase.
