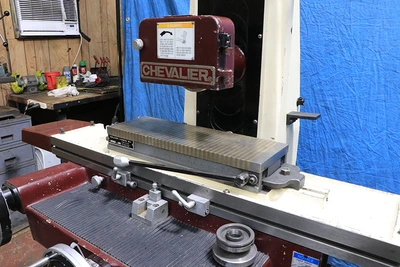

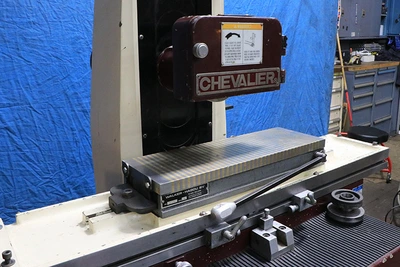

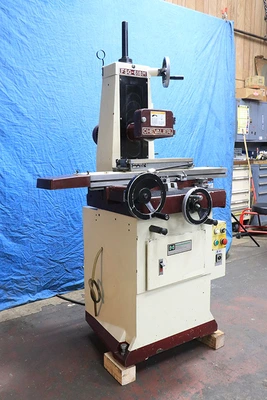

USED 1998 Chevalier FSG-618M, 1998, ROLLER BEARING TABLE, PMC,

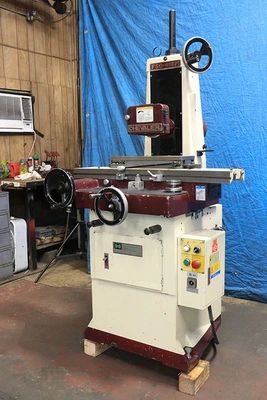

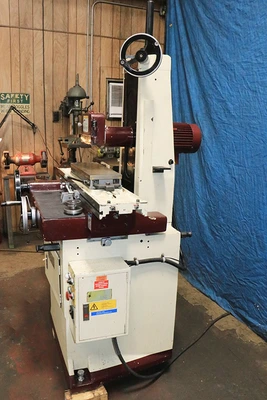

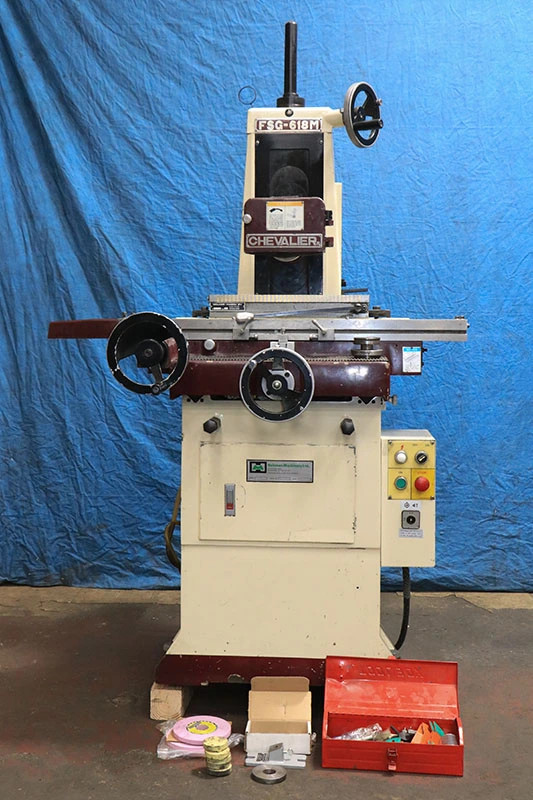

  6" x 18" Chevailer Hand Feed Surface Grinder

Model: FSG-618M     S/N: A3872040     New: 1998

Maximum grinding length:............... 18"

Maximum grinding width:................ 6"

Maximum table travel,

 longitudinal: ........................ 19"

 cross: ............................... 7"

Maximum distance from table

 working surface to spindle center .... 18"

Cross handwheel graduations: .......... 0.0005"

Cross handwheel per rev. .............. 0.100"

Downfeed handwheel graduations,:....... 0.0001"

Vertical handwheel per rev. ........... 0.050"

Spindle speed:......................... 3,450 RPM

Wheel size:...................... 8" x 1/2"W x 1-1/4"B

Approximate weight: ................... 1,500 lbs

Approximate Dimensions: ......... 55"W x 42"D x 68"H

Equipped with:

All meehanite cast iron construction

Hardened and ground table guideways with steel balls

Double V Guideways laminated with Turcite-B for saddle travel

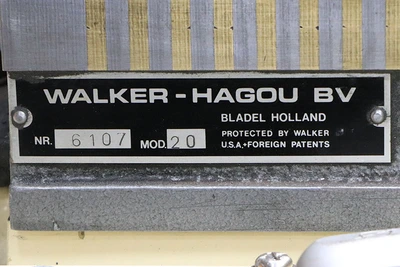

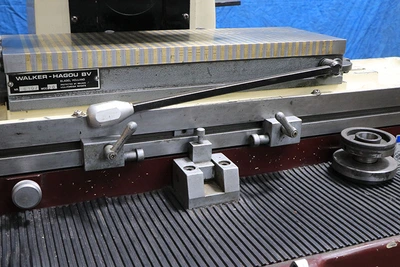

6" x 18" permanent magnetic chuck

Work light

Automatic lubrication of leadscrews and ways

1-1/2 HP 3/60/575 volt spindle motor

Machine will be supplied with a transformer for 230 volts

 LINK TO VIDEO: https://youtu.be/wv5mNn7sp_k

** Superb Condition & Appearance (Original Paint) **

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
