USED 2000 Clausing-Colchester 15", Inch/Metric, Newall DRO, 3-Jaw, 7.5 HP

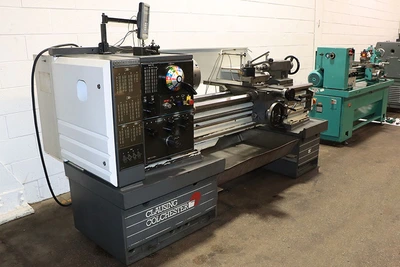

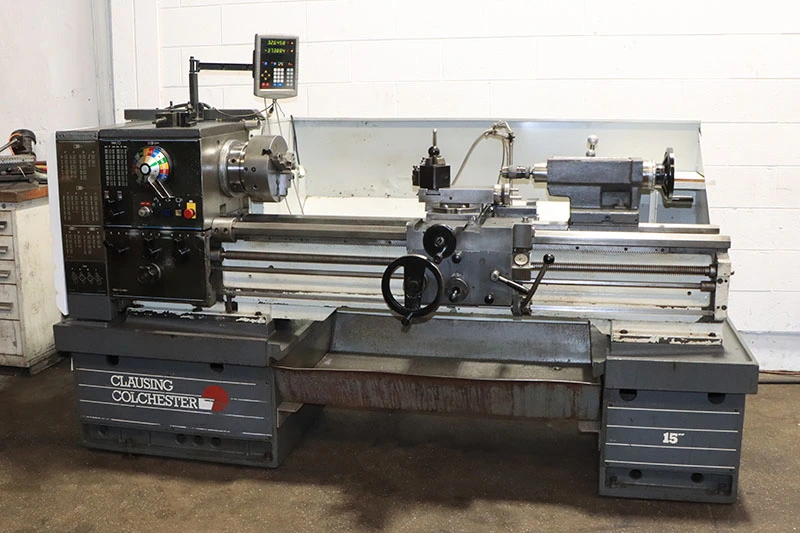

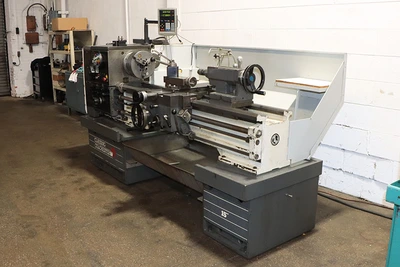

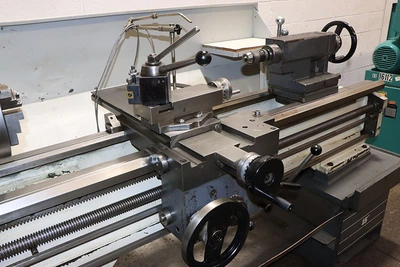

15" x 50" CLAUSING-COLCHESTER ENGINE LATHE

MODEL: 15", S/N: LGT50SILFV/00154, NEW: 2000's

SPECIFICATIONS:

SWING OVER BED ....................... 15.7"

SWING OVER CROSS SLIDE ............... 9.7"

DISTANCE BETWEEN CENTERS ............. 50"

HOLE THRU SPINDLE .................... 2.125"

SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"

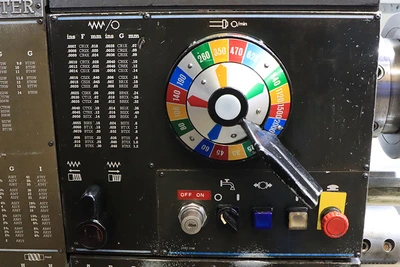

SPINDLE SPEEDS (16) .................. 25 - 2000 RPM

WIDTH OF BED ......................... 12.5"

FEEDS:

    LONGITUDINAL .................... .0007 - .048 IPR

    CROSS ........................... .00035 - .024 IPR

THREADS:

    INCH ............................. 2 - 56 TPI

    METRIC .......................... .2 - 14 mm

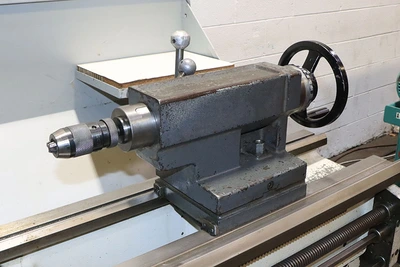

TAILSTOCK SPINDLE TAPER .............. #5 MORSE

TAILSTOCK SPINDLE TRAVEL ............. 5.5"

TAILSTOCK SPINDLE DIAMETER ........... 2.8"

DIMENSIONS ........................... 96" x 38" x 52"

APPROX WEIGHT ........................ 3,500 LBS

EQUIPPED WITH:

- INCH/METRIC THREADING CAPABILTIY

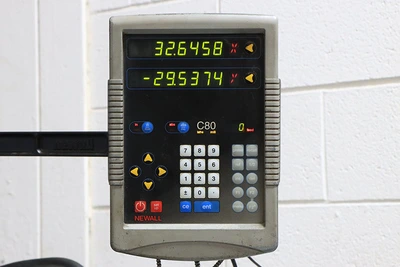

- NEWALL TWO AXIS DIGITAL READOUT

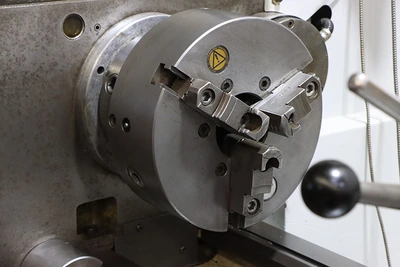

- 10" 3-JAW CHUCK PRATT BURNERD

- THREAD DIAL INDICATOR

- CARRIAGE STOP

- QUICK CHANGE TOOLPOST

- COOLANT SYSTEM WITH REMOVABLE CHIP PAN

- 7.5 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
