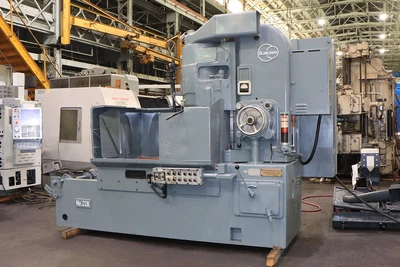

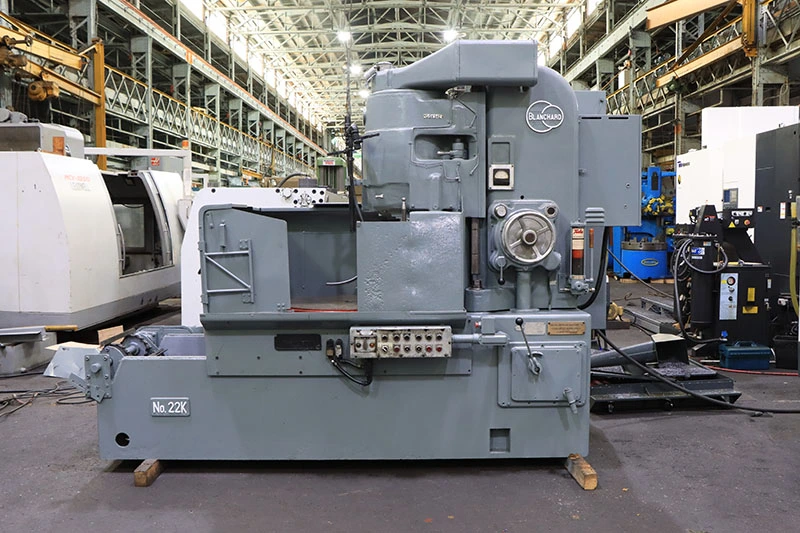

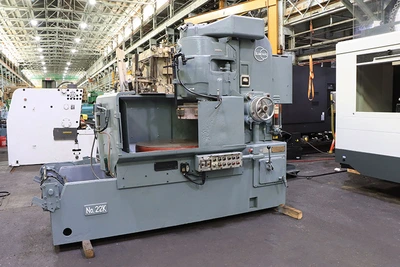

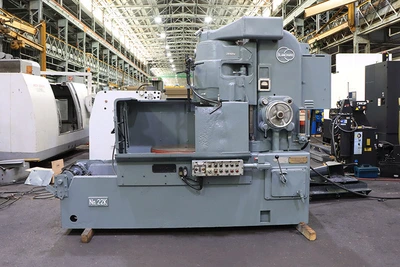

USED 1966 Blanchard 22K-42, S/N: 11708, 50 H.P., 24" VERT., COOLANT

42" BLANCHARD ROTARY SURFACE GRINDER,

 50 H.P. SPINDLE, 24" VERTICAL RANGE,

  WITH WET BASE, COOLANT IN BASE,

   & MOTORIZED SLUDGE CONVEYOR

MODEL: #22K-42   S/N: 11708   NEW: 1966

CHUCK DIAMETER ........................ 42"

SWING INSIDE GUARDS ................... 48"

VERTICAL RANGE UNDER NEW WHEEL ........ 24"

MAXIMUM LOAD ON CHUCK ................. 3,000 LBS

GRINDING WHEEL DIAMETER ............... 22"

GRINDING WHEEL SPEED .................. 720 RPM

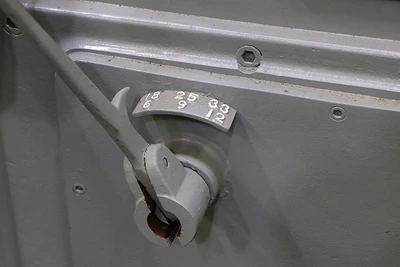

CHUCK SPEEDS (6) ...................... 6 TO 33 RPM

INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"

APPROXIMATE DIMENSIONS........... 13'6"L x 5'7"W x 10'7"H

DEPTH REQUIRED WITH ELECTRICAL

 DOOR OPEN ............................ 100"

APPROXIMATE WEIGHT .................... 14,500 LBS

EQUIPPED WITH:

50 HP 3/60/220-440 VOLT SPINDLE MOTOR

FACTORY OPTIONAL INCREASED VERTICAL CAPACITY,

  24" VERTICAL RANGE

WET BASE W/SELF-CONTAINED COOLANT SYSTEM

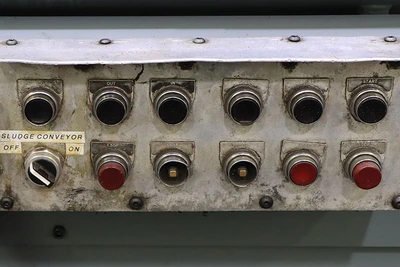

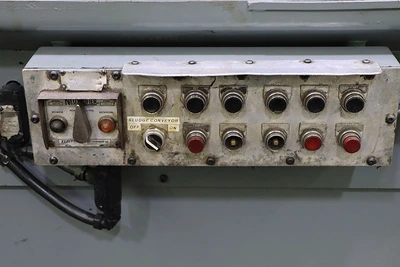

  & MOTORIZED SLUDGE CONVEYOR

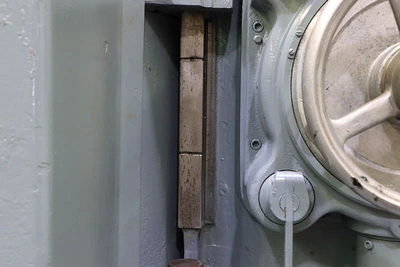

HARDENED & REPLACEABLE BED WAYS

TRABON HAND PUMP CENTRALIZED LUBRICATION SYSTEM

42" ELECTRO-MAGNETIC CHUCK, 7/16" CHUCK LIFE OR BETTER

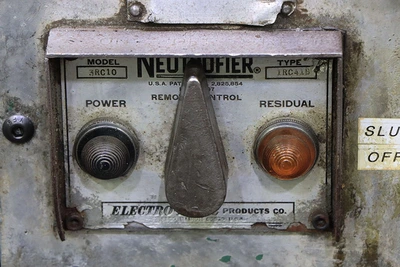

"ELECTRO-MATIC"  NEUTROFIER CONTROL,

  1500 WATT POWER SUPPLY

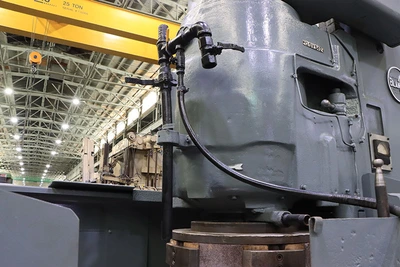

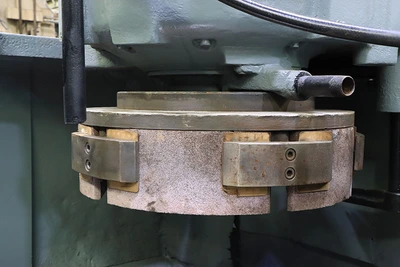

22" DIAMETER SEGMENTED WHEEL (CORTLAND)

WHEELHEAD HAS RAPID RAISE & LOWER BY POWER

  INTERLOCKED WITH FEED

WIRED PRESENTLY FOR 3/60/440 VOLTS, 90 KVA

Link to Video:

https://youtu.be/GRmT5TbHnnc?si=mohM6-dBvQIuVCoq

** EXCELLENT CONDITION & APPEARANCE **

** SERVICED, CLEANED, PAINTED & READY TO DELIVER **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
