USED LEAL AME-1250-SF

Manufacturer Information
Manufacturer: Lleal Model: AME-1250-SF Equipment Type: Industrial Mixer/Extruder Condition: Unused – Like-New Condition Year Built: 2022 Serial Number: 18725/1 Item Number: 5904 Country of Origin: Not specified
Lleal is a manufacturer of industrial mixing, blending, and processing equipment used in chemical, pharmaceutical, cosmetics, and specialty materials manufacturing.

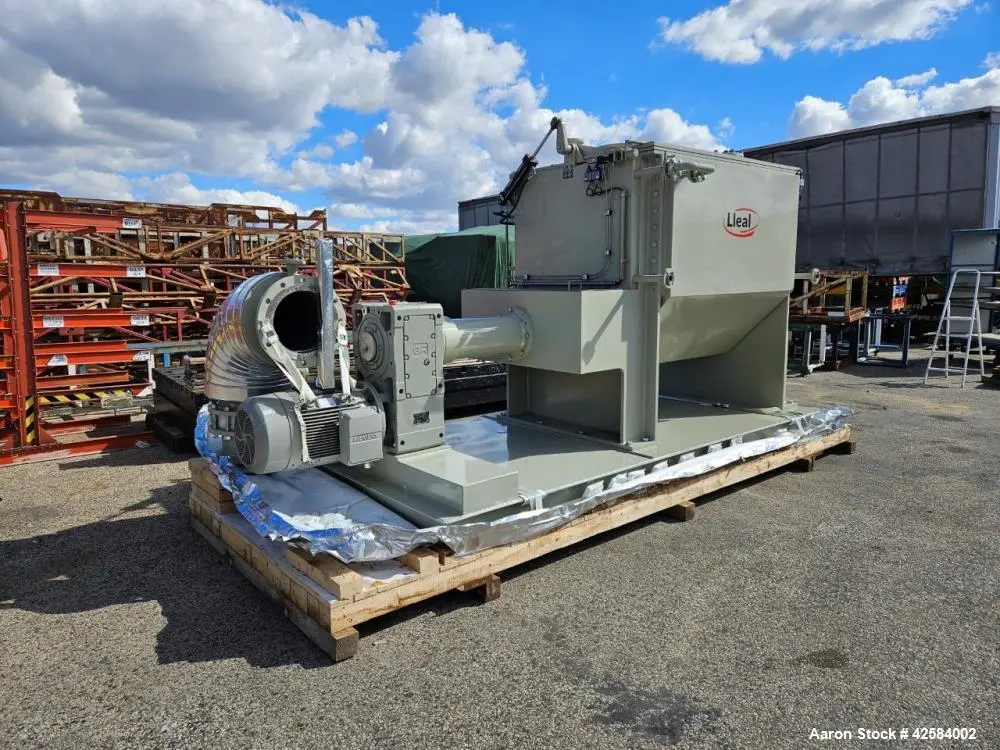

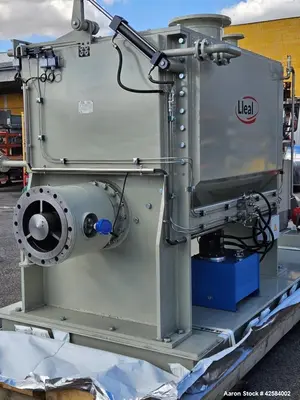

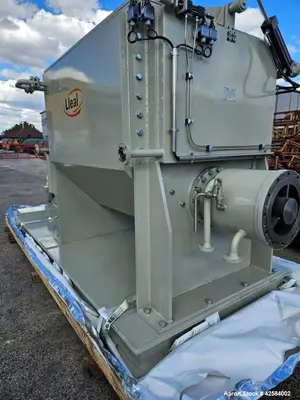

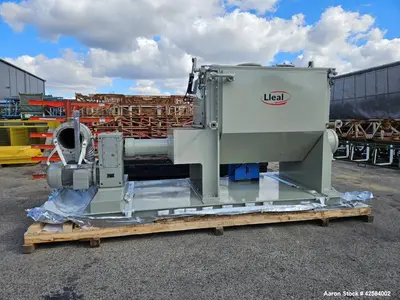

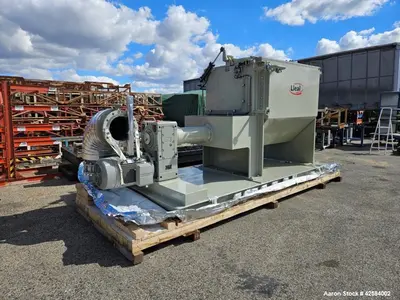

The Lleal AME-1250-SF Industrial Mixer/Extruder combines heavy-duty mixing and extrusion capabilities in a single processing machine.
This unused 2022 unit features a 1,400-liter stainless steel mixing vessel, 750-liter (198-gallon) working capacity, 80 HP combined mixing blade drive power, and a 40 HP extruder screw drive.
The machine is configured for ATEX / Ex Group II explosion-protected operation, making it a potential solution for industrial processes requiring equipment designed for designated hazardous environments, subject to verification of its complete certification and site-specific requirements.
Description
Available for sale is an unused 2022 Lleal Model AME-1250-SF industrial mixer/extruder, designed for heavy-duty mixing, blending, and extrusion of compatible industrial materials.
This machine is offered in unused, like-new condition, providing an opportunity to acquire industrial mixing and extrusion equipment without the operating history associated with a previously used machine.

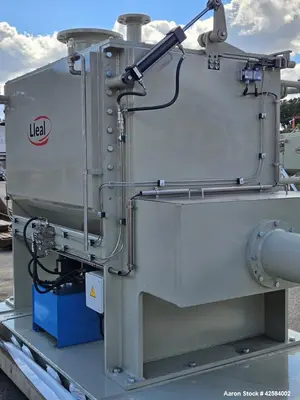

The system features a stainless steel mixing vessel with a total capacity of 1,400 liters and a working capacity of 750 liters (approximately 198 gallons).

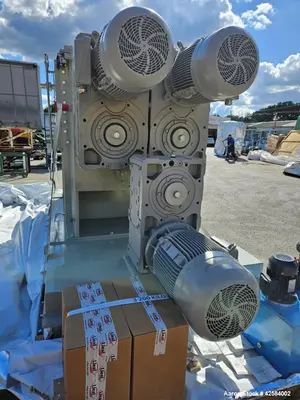

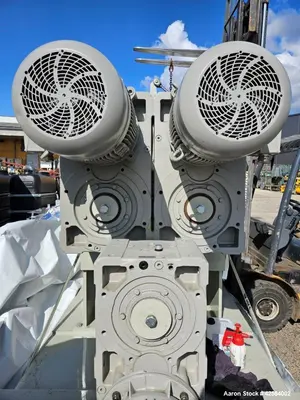

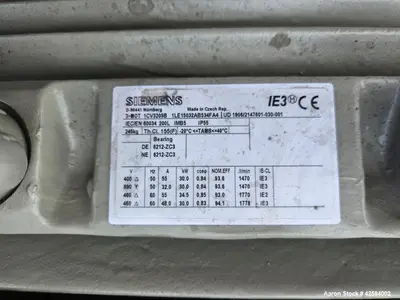

The mixing section is equipped with two mixing blade drive motors, delivering a combined 60 kW (approximately 80 HP) of mixing power.

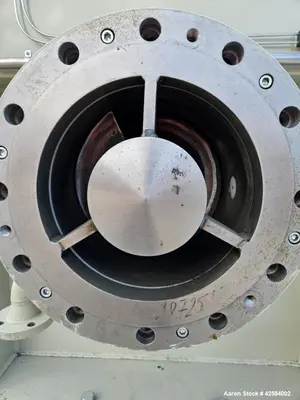

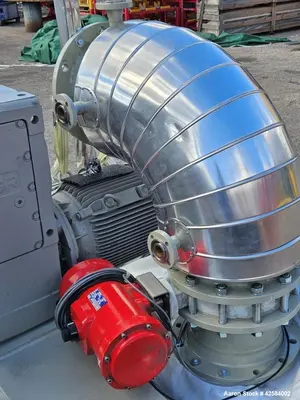

A separate 30 kW (approximately 40 HP) extruder screw drive provides the mechanical force required for discharge and extrusion of suitable processed materials.
By integrating mixing and extrusion into one machine, the AME-1250-SF can potentially reduce intermediate product handling between the blending and discharge stages.
The unit is configured for ATEX / Ex explosion-protected operation, Group II, a designation associated with equipment intended for certain potentially explosive atmospheres outside mining applications.
The precise ATEX equipment category, gas or dust classification, temperature class, and applicable operating zones should be verified against the equipment nameplate and manufacturer documentation before installation.

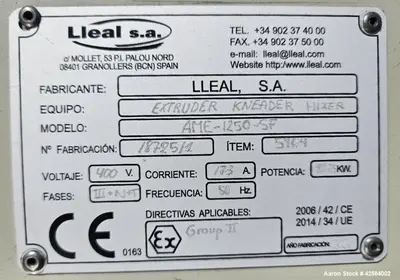

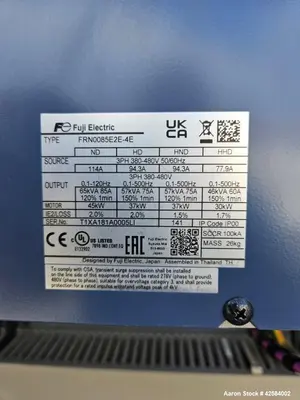

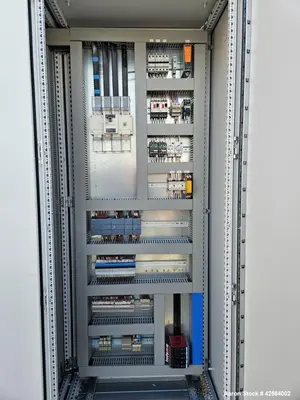

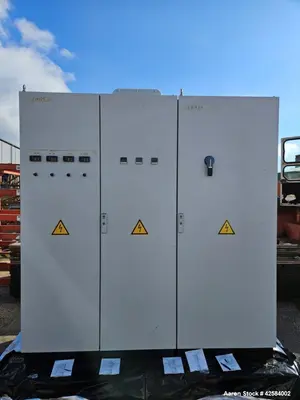

Electrical requirements are 400V, 3-phase + neutral + protective earth, 50 Hz, with a specified current of 173 amps.
Total installed power is 90.25 kW, incorporating the mixing and extrusion drive systems and additional electrical loads.
The overall dimensions are approximately 4,143 mm long x 2,635 mm wide x 1,950 mm high, equivalent to approximately 163" L x 104" W x 77" H.

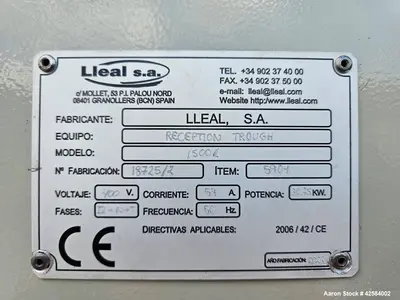

Manufactured in 2022, the unit is identified by Serial Number 18725/1 and Item Number 5904.
This Lleal industrial mixer/extruder could be suitable for specialty chemical processing, paste production, high-viscosity mixing, compound preparation, and industrial material extrusion, depending on product properties and machine configuration.
Specifications
General Equipment Specifications

Specification

Details

Manufacturer

Lleal

Model

AME-1250-SF

Equipment Type

Industrial Mixer/Extruder

Condition

Unused / Like-New

Year Built

2022

Serial Number

18725/1

Item Number

5904

Mixing Vessel Construction

Stainless Steel

Total Vessel Capacity

1,400 Liters

Working Capacity

750 Liters

Working Capacity in Gallons

Approx. 198 Gallons

Mixing Configuration

Dual Mixing Blade Drives

Extrusion System

Screw Extruder

Explosion Protection Configuration

ATEX / Ex, Group II

Total Installed Power

90.25 kW

Mixing and Extrusion Drive Specifications

Specification

Details

Mixing Blade Drive Motors

(2)

Combined Mixing Motor Power

60 kW

Combined Mixing Horsepower

Approx. 80 HP

Extruder Screw Drive Power

30 kW

Extruder Screw Horsepower

Approx. 40 HP

Combined Mixing and Extrusion Drive Power

90 kW

Total Installed Power

90.25 kW

Electrical Specifications

Specification

Details

Operating Voltage

400V

Electrical Phase

3-Phase

Neutral Connection

Required

Protective Earth

Required

Electrical Frequency

50 Hz

Rated Current

173 Amps

Total Installed Power

90.25 kW

Explosion Protection

ATEX / Ex Group II

Overall Dimensions

Dimension

Metric

Approximate Imperial

Length

4,143 mm

163"

Width

2,635 mm

104"

Height

1,950 mm

77"

The machine is configured for 400V/50Hz electrical service. Operation on 460V/60Hz or other power supplies would require manufacturer and electrical engineering review. ATEX Group II designation alone does not establish suitability for a particular hazardous-area zone or material. Detailed mixing blade geometry, screw dimensions, discharge configuration, temperature-control features, and operating pressure ratings were not provided.
Included Equipment and Features

(1) Lleal AME-1250-SF industrial mixer/extruder

Stainless steel mixing vessel

(2) Mixing blade drive motors

Combined 60 kW / 80 HP mixing drive power

(1) 30 kW / 40 HP extruder screw drive

ATEX / Ex Group II configuration

Integrated mixing and extrusion assembly

400V, 3-phase, 50Hz electrical configuration

Typical Applications

Heavy-duty industrial mixing

High-viscosity material processing

Specialty chemical blending

Industrial paste preparation

Compound mixing and extrusion

Chemical intermediate manufacturing

Industrial formulation processing

Batch mixing with screw discharge

Adhesive and sealant compound preparation

Specialty materials production

Dense material homogenization

Industrial extrusion feed preparation

Products This Lleal Mixer/Extruder Could Be Used For

Industrial pastes

Specialty chemical compounds

Compatible adhesive formulations

Sealant compounds

High-viscosity chemical mixtures

Industrial filler compounds

Compatible polymer-based mixtures

Specialty coating compounds

Dense industrial formulations

Chemical intermediates

Compatible pigment dispersions

Other heavy-bodied industrial materials

Product suitability depends on viscosity, chemical compatibility, mixing requirements, extrusion characteristics, temperature limitations, and the machine's installed tooling. Food, pharmaceutical, or hazardous-material applications require additional verification of construction, documentation, and applicable regulatory requirements.
Frequently Asked Questions
- What is the capacity of the Lleal AME-1250-SF mixer/extruder? The machine features a 1,400-liter total mixing vessel capacity and a 750-liter (approximately 198-gallon) working capacity.
- How much mixing and extrusion power does the machine provide? It includes two mixing blade drive motors totaling 60 kW (approximately 80 HP) and a separate 30 kW (approximately 40 HP) extruder screw drive.
- Is this Lleal mixer/extruder new or used? The machine was manufactured in 2022 and is offered in unused, like-new condition.
- Is this machine designed for hazardous-area applications? The unit is configured for ATEX / Ex Group II explosion-protected operation. Buyers should verify the specific ATEX classification, equipment category, temperature class, and suitability for their installation.
- What are the electrical requirements? The machine requires 400V, 3-phase + neutral + protective earth, 50 Hz, with a specified current of 173 amps and total installed power of 90.25 kW.
- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with equipment preparation, rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning. The unit's approximately 163" x 104" x 77" dimensions should be considered when planning transportation and facility installation.
