USED 2012 VANTAGE PA-35

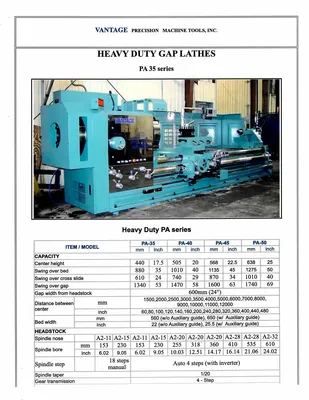

2012 Vantage Lathe, Model: PA-35 Heavy Duty Big Bore Engine
Lathe with 24" 4-Jaw Big Bore Chucks with 12.5" Thru-Hole Front &
Back Work Holding Installed Newall Digital Readout and All Options.

* Bed Ways Allow Close to Face to Under Chuck Turning!

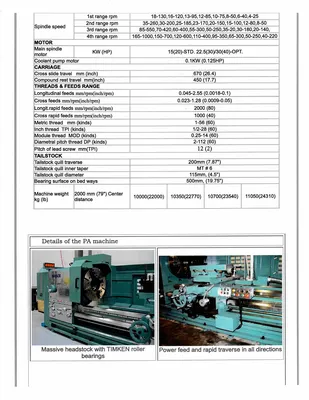

Main Specifications:
Swing over bed:.................................35"
Swing over cross slide:.....................24"
Center distance from Spindle Nose to Hex Turret vertical surface:........ 118”
Headstock Spindle bore:..................12.50"
Spindle speed:...................................18--700 rpm
(4) speed frequency inverter variable
speed, with power air gear ranges.
Spindle nose----------------------------------A2-20
Main motor------------------------------------Gear Transmission 20 HP

• Headstock oil lubrication with electrical pump
Threads and Feeds

Carriage
Standard with Tool Compound Type
6-way rapid traverse and feeds
Threads & Feed Range
Inch Metric
Tail Stock
(1) Steady Rest
Newall Digital Readout

Machine Bed Specifications
Width:...............................22" without Aux. Guide
Width:.............................. 25" with Aus Guide
Height:..............................26”
Machine Weight:..............23,540 Lbs. *Confirming

Standard Accessories:
​Spindle variable speed, 4-range speeds, by inverter frequency
control, each range gear changed by power air.

​Hardened and ground bed and cross slide ways, ways lubrication
with adjustable timer control pump
​Tool compound post (8” X 8” Indexing every 45 degrees)
Rear spindle adapter plate
Automatic lubrication system with adjustable timer control
Chuck guard at front and rear of spindle
Cross slide constant surface feed on both carriages
Thread chasing dial
Low voltage control
Coolant system on both carriages
One halogen work light on front carriage
Tool box

Optional Accessories:
1. Full length splash guard (120”) and chip conveyor (120”)
2. One steady rest, capacity from 1” to 14”
3. One steady rest, capacity from 14” to 32”
4. Hydraulic tracer attachment on both carriages
5. Heavy duty coolant pump 280 PSI X 8 Gallon/Min
6. Semi auto-threading in front carriage

More Specifications Confirming on Questions or Inspection
Under Power Available 1-2 Weeks on Technician Scheduling

Machine Stock Subject to Prior Sale or Hold with Travel Schedule!
