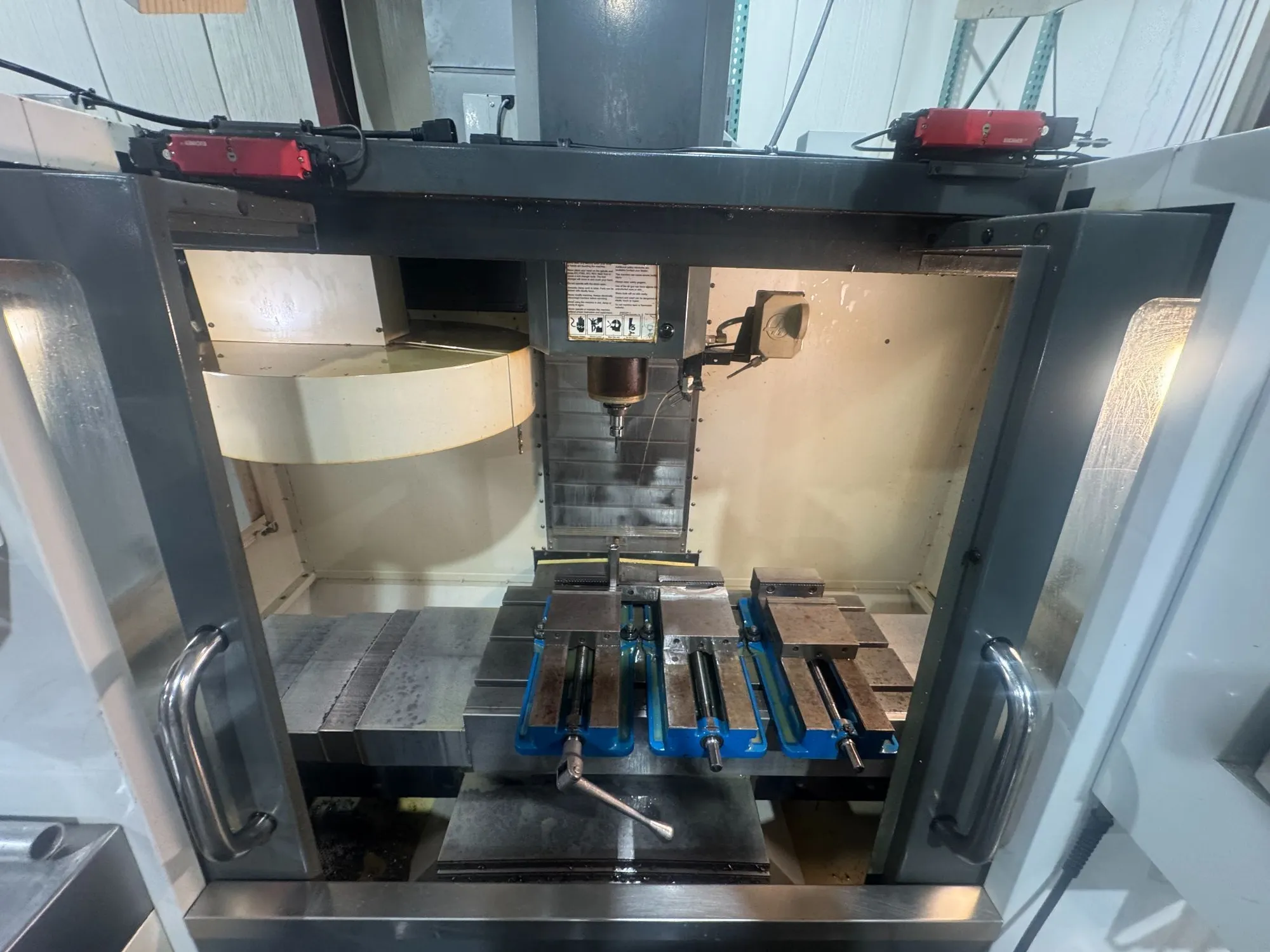

USED 2013 HAAS VF-2

ONE USED HAAS VF SERIES, 4-axis, Geared Head VMC
Model: VF-2
Table size: 36” x 14”
Max. load on table: 3,000 lbs.
Travels: 30” x 16” x 20”
Spindle nose to table: 4” to 24”
Spindle taper: Cat 40
Spindle HP: 20
Spindle RPM: 8,100 rpm, 2-speed geared head, 8.1k-40T-GBX
Rapid travels: X,Y,Z, 710 x 710 x 710 ipm
Max. Cutting feeds: 500 ipm
ATC: 20 Place
Max. tool diameter: 3.5”
Max. tool weight: 12 lbs.
Door open width: 35.50”
Weight: 8,000 lbs.
Wired: 195-260v/3ph/50-60cy
CE rated
EQUIPPED WITH:
Programmable Coolant Nozzle
Chip auger
RTAP-3, Rigid tap
4th axis drive, 4AXBL
Coolant w/ 30-8957A, 55 gallon coolant tank for TSC 1000
High Intensity Lighting
Ethernet
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
New: 8/2013
In plant and under power
