USED 2021 TECHNO CNC HD II

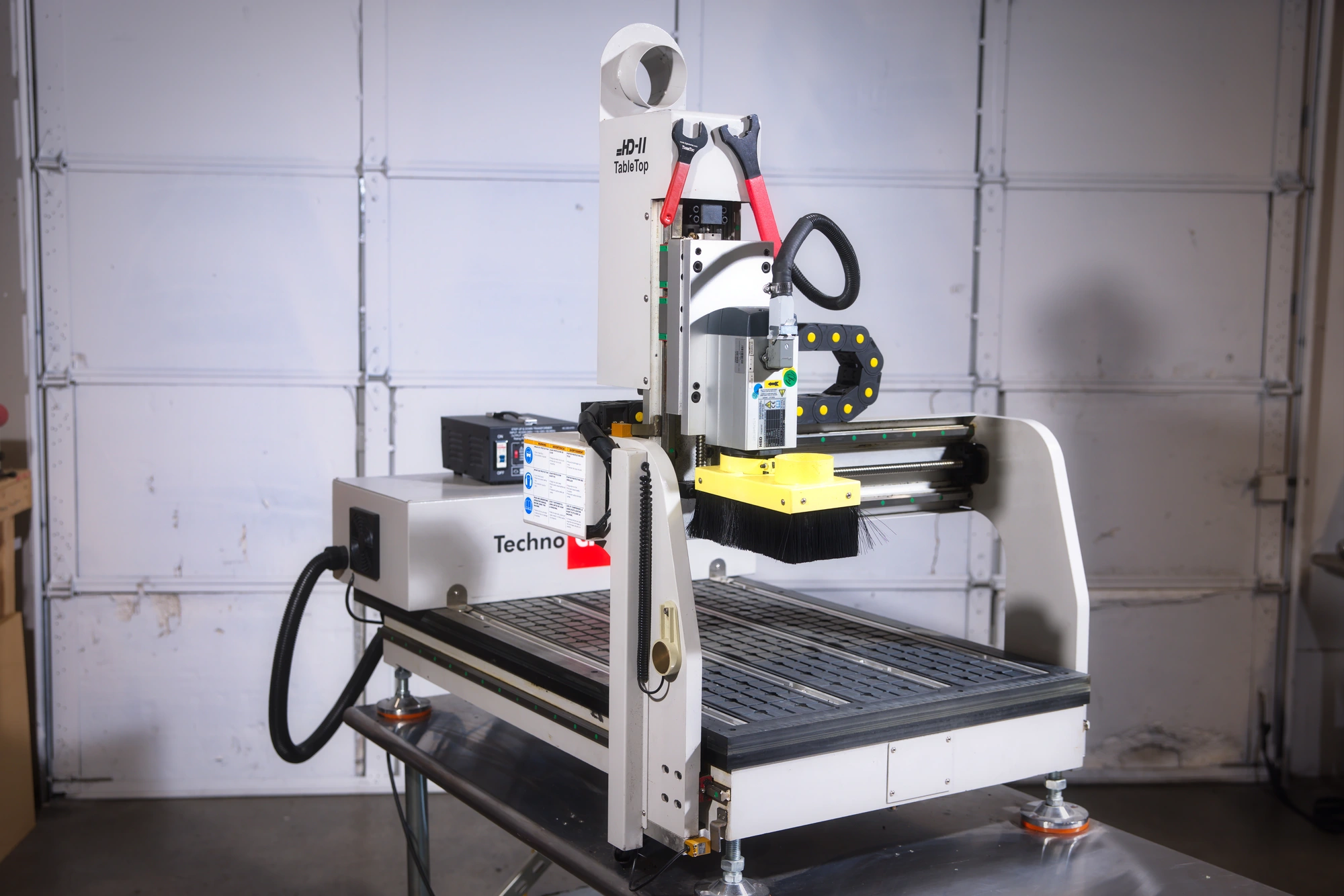

Techno HD-II Table Top CNC Router — Stepper version (2021), from Ronkonkoma, NY
(New 2026 Techno CNC pricing is $12,950), OBO
Professional compact CNC router from Techno CNC Systems. Ideal for wood, plastics, and light non-ferrous work.

CONFIGURATION
• Model: HD-II Table Top 20×34
• Controls: Stepper electronics (brushless micro-stepper)
• Spindle: 2 HP (1.5 kW) HSD high-frequency collet spindle
• Spindle speed: 6,000–18,000 rpm
• Collets: ER25
• Voltage: 120 V (20 amp circuit), 220V→120V step-down transformer included
• Gantry clearance: 7.5"
• Z-axis stroke: 9.5"
• Process area: 20" × 34"
• Table: Phenolic vacuum T-slot table — table only, no vacuum pump (1 vacuum zone)
• Controller: Techno handheld pendant
• Software/format: G-code
• Motion: Precision ball screws on X/Y/Z, precision linear rails & bearings
• Auto tool-length calibration pad
• Dust hood with ~3" hose connection
• Includes heavy stainless steel rolling table with locking casters

PUBLISHED SPECS (Techno HD-II brochure)
• 20" × 34" process area
• 7-1/2" gantry clearance / 9-1/2" Z stroke
• Vacuum T-slot table with aluminum T-slots for mechanical fixturing
• Easy-to-use handheld controller with feed/speed override, E-stop, jog, tool calibrate, etc.

LOCATION / PICKUP
• Located in Arlington, WA area (update address/pickup notes as needed)
• Buyer responsible for pickup / freight unless otherwise arranged
