USED 2018 OKAMOTO OGM-1220NCAGIII
Overview

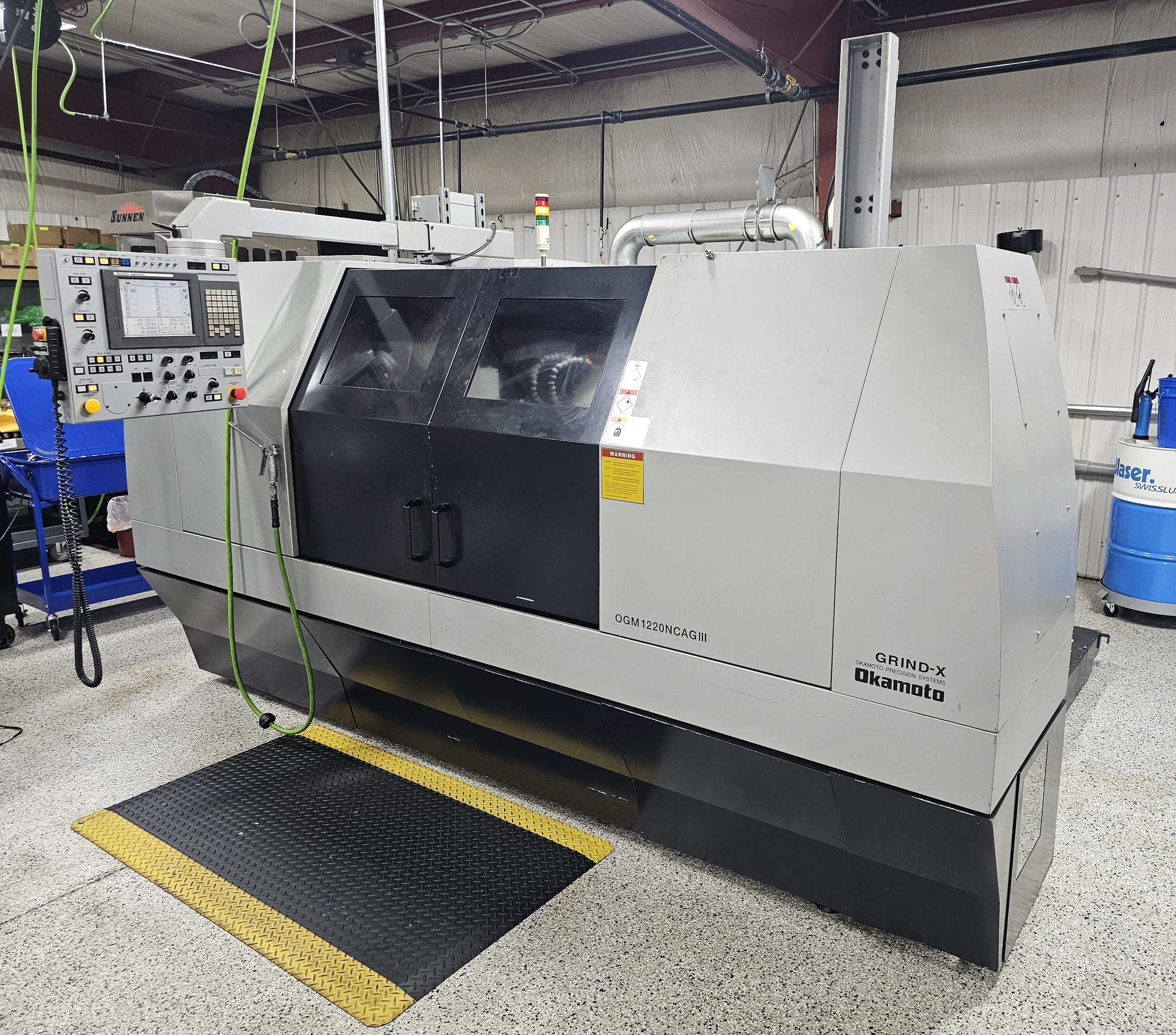

Okamoto OGM-1220NCAGIII High Precision Angle Head CNC Cylindrical Grinding Machine
Specs
Capacity:
Swing Over Table...........................12.6"
Distance Between Centers...................19.7"
Maximum Diameter to be ground..............12"
Maximum weight between centers.............330 LBS
Grinding Wheel:
Size ( D x W x B ).........................20" x 4" x 8"
Wheel Speed................................500 - 1,600 RPM
Wheel head:
Total Stroke ..............................11.8"
Swivel Angle...............................30 Degrees Fixed
Automatic lnfeed, traverse grind...........0.00001" -0.004"
Continuous Feed Rate.......................0 -157 inch/min.
Manual Pulse Feed ( x.1, x1, x10)..........0.00001 ", 0.0001 ", 0.001"
Rapid Feed Rate............................157 inch/min.
Feed Rate Override.........................0-200% (Max. 400 inch/min.)
Table:
Max. Table Travel..........................31.5"
Swivel Angle...............................0 to -8.5 Degree (Only Minor adjustment)
Traverse Speed.............................0 -393 inch/min.
Manual Pulse Feed ( x.1, x1, x10)..........0.00001", 0.0001", 0.001"
Rapid Feed Rate............................393 inch/min.
Feed Rate Override.........................0 - 200% (Max. 400 inch/min.)
Work head: (Dead/Live Spindle)
Center.....................................MT#5
Swivel Angle...............................30 ~-90 (Fixed )
Spindle Speed..............................10 - 500 RPM
Tailstock:
Center.....................................MT#4
Spindle Stroke.............................1.2"
Motors:
Grinding Wheel Spindle.....................7.5 HP
Work head Spindle..........................1.3 HP AC Servo
Wheel head Feed & Rapid Feed...............0.3 HP AC Servo
Table Feed & Rapid Feed....................1.3 HP AC Servo
Electrics..................................200V/3PH/60HZ
Floor Space (L x W x H)....................106" X 94" X 79"
Net Weight.................................9,460 LBS
Equipped With
Fanuc OiTD Controller
Okamoto conversational software
Remote manual pulse generator
Grinding wheel & Wheel adaptor
Grinding wheel rpm meter
Infinitely variable work head
Wheel load meter relay
Dressing device with diamonds
Fully enclosed splash guard
Carbide tip center
Servo driven wheel spindle
Tail stock with taper adjustment
Marposs shoulder flagging device
Door Interlock
Universal Work head (dead/live center)
LED Work Light
Toolbox with necessary tools
Instruction manuals and inspection reports
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
