USED 2018 MURATEC MW120G
Overview

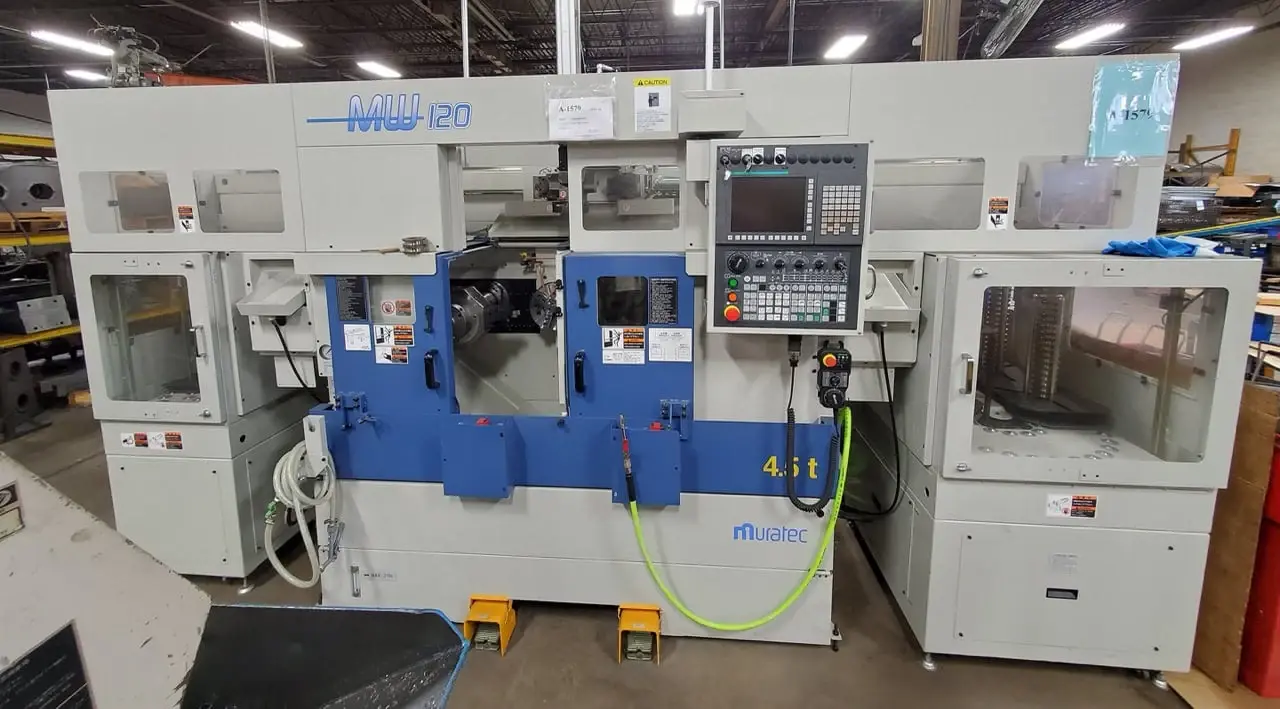

This 2018 Muratec MW120G twin spindle CNC lathe comes with an overhead gantry loader and a 14-pallet stocker feeder table, running 15 HP spindle drive motors up to 4,500 RPM on a Fanuc 31iTB control. It offers 11.61" of swing, a 9.440" max turning diameter, and 13.39" between spindles, with an 8-station turret.
Specs
Distance Between Spindles: 13.39"
Nominal Turning Diameter: 4.72"
Nominal Turning Length: 3.150"
Turret Stations: 8
X-Axis Travel: 5.12"
Z-Axis Travel: 5.71"
Rapid Traverse (X and Z): 945 IPM
Spindle Nose: A2-5
Spindle Bore: 1.850"
Tool Shank Size: 0.75" Square, 1.570" Round
Approximate Weight with Loader: 11,800 lbs
Approximate Floor Space: 139.37" x 136.22"
Equipped With
Fanuc 31iTB Control
Overhead Gantry Loader
14-Pallet Stocker Feeder Table
LNS Chip Conveyor
Remote MPG
