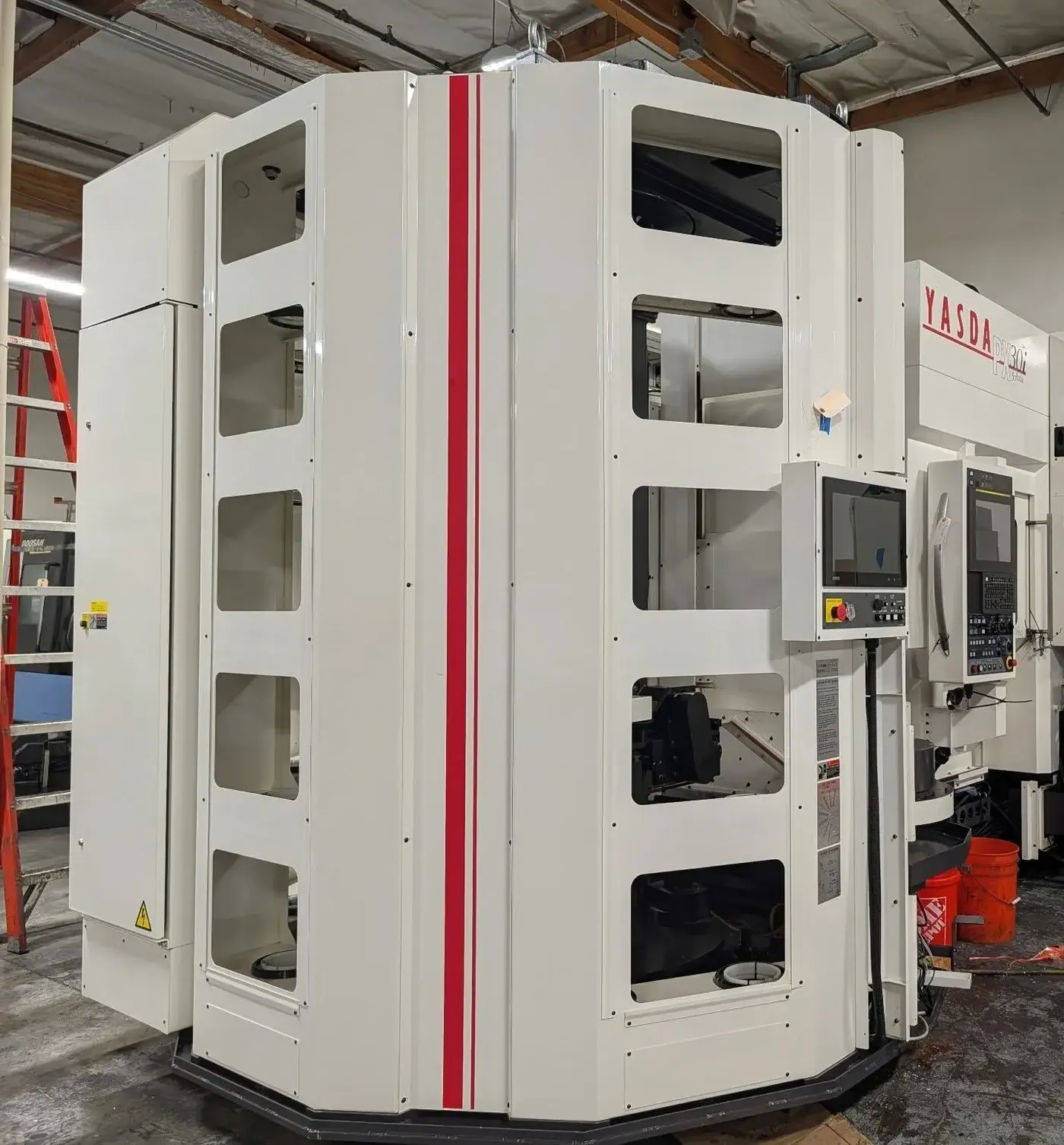

USED 2020 YASDA PX-30I
Overview
This 2020 Yasda PX30i 5-axis vertical machining center runs a 32-pallet shelf system and a 20,000 RPM, 24.8 HP spindle on a Fanuc 31i-A5 control. Travels measure 26.8" in X, 15.8" in Y, and 19.7" in Z, with B-axis tilt from -125° to +65° and continuous 360° C-axis rotation.
Specs
B-Axis Travel: -125° to +65°
C-Axis Travel: 360° Continuous
Pallet Working Size: 7.28" Diameter
Max Workpiece: 15.75" Diameter x 12.40"
Max Loading Capacity: 176.37 lbs
Rapid Traverse (X, Y, Z): 2,362.20 IPM
Table Tilting Speed (B): 75 RPM
Table Rotation Speed (C): 125 RPM
Approximate Dimensions: 262.99" x 162.99" x 133.27"
Approximate Weight: 41,887.83 lbs
Equipped With
32 Pallet Shelf System
Fanuc 31i-A5 Control
High Pressure Coolant
Spindle Chiller
Chip Conveyor
Hardened and Ground Ways
