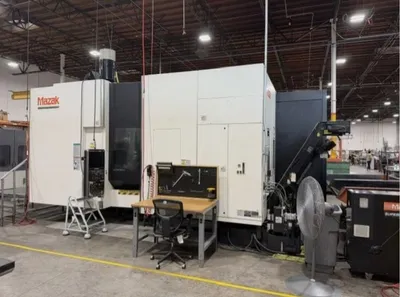

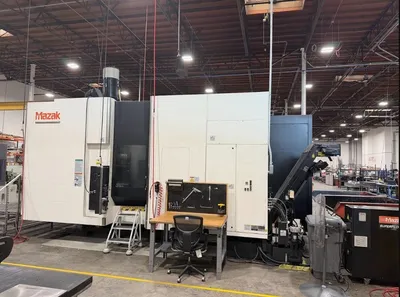

USED 2014 MAZAK HCN-6800

Title: 2014 Mazak HCN-6800 CNC HMC CAT50 10K RPM 120 ATC Matrix Nexus 2 Renishaw SuperFlow
Brand: Mazak
Model: HCN-6800
Year: 2014

Specifications

Serial Number: Upon Request
Year of Manufacture: 2014

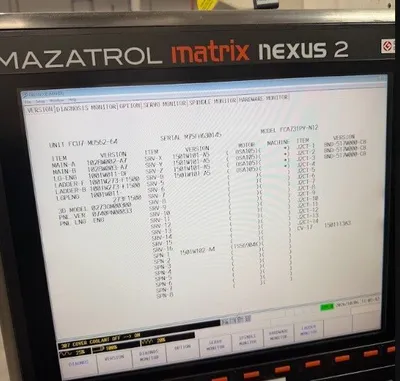

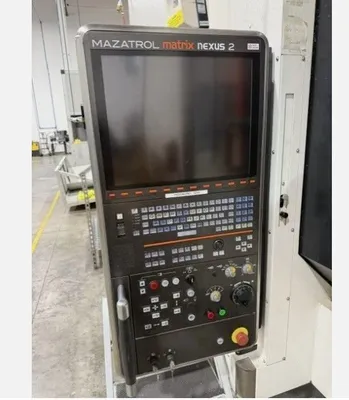

Control: Mazatrol Matrix Nexus 2 CNC Control (Unit: FCU7-MU562-64 / S/N: Upon Request)
Taper / Spindle: CAT-50 / 10,000 RPM
Tool Capacity: 120-Position Chain-Type ATC
Pallet Size: Twin 24.8″ × 24.8″ (630 mm × 630 mm) Automatic Pallet Changer (APC)

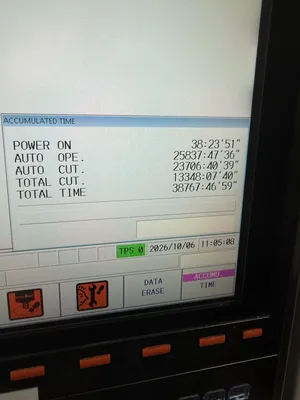

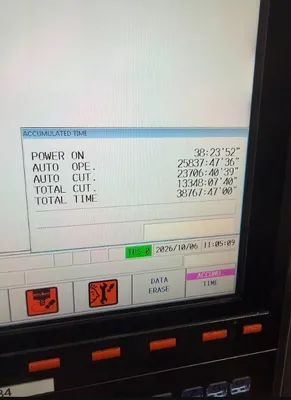

Machine Hours (Logged October 6, 2026)
Total Power-On Time: 38,767 Hours, 47 Min
Auto Operation Time: 25,837 Hours, 47 Min
Auto Cutting Time: 23,706 Hours, 40 Min
Total Cutting Time: 13,348 Hours, 07 Min
X-Axis Travel: 41.34″ (1,050 mm)
Y-Axis Travel: 35.43″ (900 mm)
Z-Axis Travel: 38.58″ (980 mm)
Spindle Center to Pallet Top: ~3.94″ – 39.37″ (100 – 1,000 mm)
Spindle Nose to Pallet Center: ~5.91″ – 44.49″ (150 – 1,130 mm)
B-Axis Rotary Table: Full NC Rotary Table (360,000 Positions / 0.0001° continuous contouring)
Spindle Speed: 10,000 RPM (High-Torque Integral Spindle Drive)
Spindle Taper: CAT-50
Tool Storage Capacity: 120-Tool Chain Magazine
Automatic Pallet Changer: 2-Pallet Rotary System
Pallet Dimensions: 24.8″ × 24.8″ (630 mm × 630 mm)
Maximum Workpiece Envelope: 41.34″ Diameter × 51.18″ Height (1,050 mm × 1,300 mm)
Maximum Pallet Load Capacity: 3,307 lbs per pallet (1,500 kg)
Rapid Traverse Rate (X, Y, Z): 2,362 IPM (60 m/min)

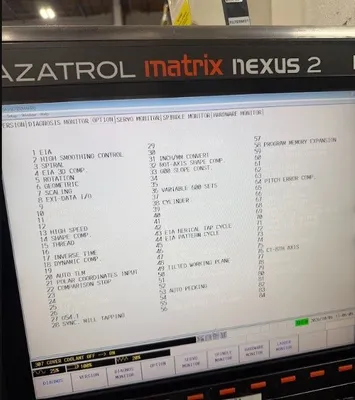

Mazacc-3D High-Speed Software Package (G61.1 & G05P2)
High Smoothing Control
High Speed Machining
EIA 3D Compensation
Inverse Time Feed
Full 4th-Axis Rotary Table Integration (B-Axis continuous)
Tilted Working Plane (TWP / 3+2 milling positioning)
Cylindrical Interpolation (requires NC rotary table)
Rotary-Axis Shape Compensation
Dynamic Compensation (2, 1)
Dynamic Work Coordinate System (G54.1)
Polar Coordinates Input, Coordinate System Rotation, Scaling, Geometric Commands
Auto Pecking Cycle with Load Detection
Synchronized Mill Tapping (Rigid Tapping)
EIA Helical Tap Cycle & EIA Pattern Cycle
Pitch Error Compensation & Shape Compensation
8 MB Maximum Program Size Expansion
Variable Macro 600 Sets
Auto TLM (Automatic Tool Length Measurement integration)
Inch/Metric Conversion
Renishaw OMP60 Optical Spindle Probe: Includes CAT-50 toolholder and rigid extension shank

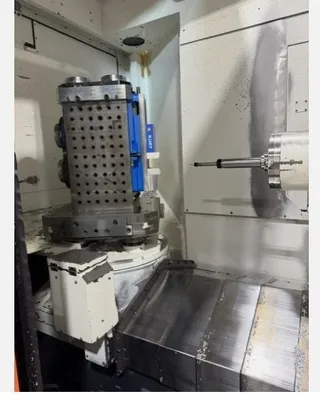

4-Sided Precision Grid Tombstone: Heavy-duty cast iron construction mounted to a 630 mm pallet base with a multi-hole grid matrix (tapped holes and precision dowel/bushing receiver pattern)
Precision Production Vises: Dual-station Kurt (or Kurt-style) CNC precision vises mounted directly to the tombstone grid
Mazak SuperFlow V8M-1000 High-Pressure Coolant System: 1,000 PSI programmable multi-port high-pressure through-spindle coolant unit
Eriez FilterMaster Auxiliary Filtration Cart: Dual-canister mobile bag/cartridge filter unit plumbed inline with the coolant system
Chip Conveyor: Mayfran / Mazak lift-up hinge-belt discharge conveyor

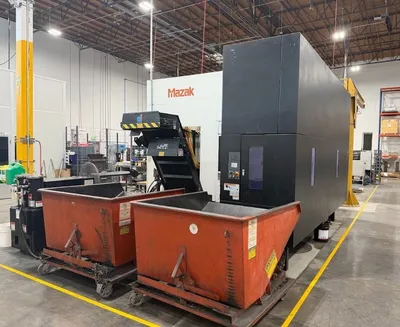

Self-Dumping Chip Hoppers: (2) 1.0–1.5 yard heavy-gauge orange dumping hoppers with caster bases and forklift pockets
Mist Collector: Machine-mounted Filtermist unit with ducting
Workpiece Air Blast: Factory-plumbed spindle blast

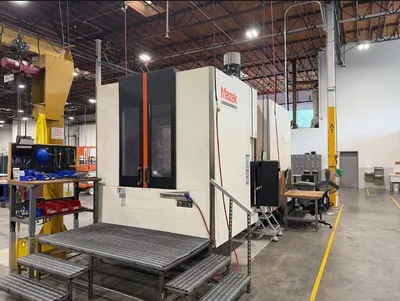

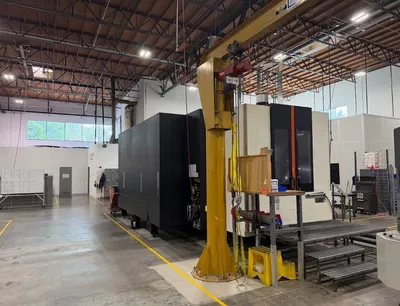

Operator Work Platform: Custom heavy-duty steel expanded-metal elevated setup mezzanine with dual access stairways and perimeter safety rails
Overall Shipping Footprint: 2 Truckloads Required (1 Permitted Heavy-Haul Lowboy/RGN + 1 Standard Step-Deck/Flatbed)
Total Estimated Transport Weight: ~54,500 lbs

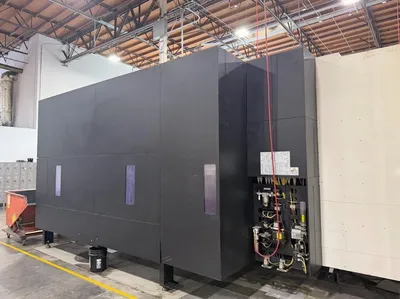

Main Machine Body (Bed, Column, Spindle Head, APC & Enclosure): Dimensions: 232″ L × 140″ W × 135″ H (19′ 4″ × 11′ 8″ × 11′ 3″) | Weight: ~42,000 lbs | Transport: Step-Deck or RGN Lowboy (Oversize Width & Height Permitted)
120-Tool Chain Magazine Assembly: Dimensions: 185″ L × 55″ W × 130″ H (15′ 5″ × 4′ 7″ × 10′ 10″) | Weight: ~6,000 lbs | Transport: Standard Step-Deck or Flatbed
Chip Conveyor: Dimensions: 180″ L × 40″ W × 75″ H | Weight: ~2,200 lbs
Mazak SuperFlow V8M-1000 Unit: Dimensions: 48″ L × 28″ W × 50″ H | Weight: ~750 lbs
Eriez FilterMaster Cart: Dimensions: 28″ L × 26″ W × 48″ H | Weight: ~300 lbs
Tooling Package (Tombstone, Vises, Renishaw OMP60): Dimensions: 36″ L × 36″ W × 40″ H (Skidded) | Weight: ~1,600 lbs
Chip Hoppers (Pair): Dimensions: 60″ L × 48″ W × 44″ H each | Weight: ~1,200 lbs total
Operator Staging Platform: Dimensions: 72″ L × 48″ W × 24″ H | Weight: ~450 lbs
Description HCN-6800-II (Matrix Nexus 2 era)

High-performance heavy-duty horizontal machining center engineered for maximum rigidity, speed, and continuous unattended production. This 2014 Mazak Horizontal Center Nexus 6800-II is powered by the advanced Mazatrol Matrix Nexus 2 CNC control and features a high-torque 10,000 RPM CAT-50 integral spindle coupled with a dual 630 mm pallet changer system. With a massive 120-tool chain matrix and low total cutting hours logged at 13,348, this machine offers exceptional capacity for large part processing and complex prismatic components.

Key Features & Benefits
Equipped with a full NC continuous 4th-axis B-table (360,000 positions), Mazacc-3D high-speed machining software package, dynamic work coordinate tracking, and tilted working plane capabilities. Complete production package includes a 1,000 PSI Mazak SuperFlow V8M-1000 high-pressure through-spindle coolant unit, Eriez FilterMaster secondary bag filtration system, Renishaw OMP60 optical spindle probe, 4-sided precision grid tombstone with dual-station vises, Filtermist extraction unit, Mayfran hinge-belt chip conveyor, and dual self-dumping chip hoppers.

This machine carries four high-demand, high-margin options:

120-Tool Chain ATC (instead of standard 43)

Full NC 0.0001° continuous B-axis table

Mazak SuperFlow V8M-1000 (1,000 PSI) + Eriez bag filtration cart

Turnkey Chamber Package: 4-sided grid tombstone, Kurt vises, and Renishaw OMP60 optical probe

Machine was well maintained by reputable CNC maintenance company whom is willing to vouch for the overall condition and integrity of the machine if when necessary.

Additional videos of the machine running are available upon request.

Dimensions & Weight

Physical Footprint: 232″ L × 140″ W × 135″ H (Main Unit); 2 Truckloads Required for Total System
Weight: Approximately 54,500 lbs
Shipping & Location Details

Location: Everett, WA
This machine is offered FOB Everett, WA. Buyer is responsible for all applicable freight and rigging expenses.

Fair Sell Price Analysis

Market Context: Clean, well-maintained 630 mm horizontal machining centers equipped with 120-tool chain magazines, high-pressure coolant units, full 4th-axis continuous rotary tables, and complete production tooling packages command strong demand in the industrial resale marketplace. Priced competitively to deliver substantial capital savings relative to comparable pre-owned heavy-duty HMCs.

The original purchase price on the 2014 Mazak sales order confirmation and conditional sales contract was $491,028.00

Equivalent As-Built Replacement Cost: $700,000 – $760,000 HCN-6800 NEO
