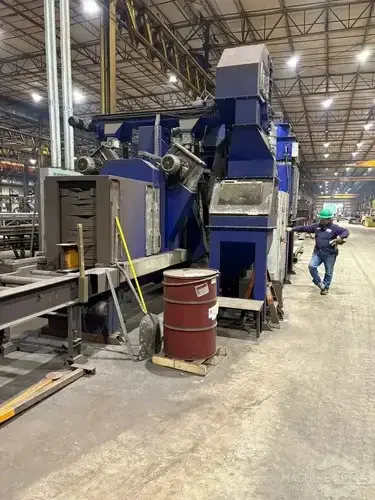

USED 2020 OCEAN ELIMINATOR

Request a Quote
Add to Cart
Max profile height:: 40"
Max profile width:: 20"
Min workpiece height:: 0.5"
Min workpiece length:: 96.5"
Max workpiece weight:: 66 lbs/Piece
Material type:: Handles Beams, Channel, Angle, Tube, Flat Bar And Other Profiles
Wheel diameter:: 15" (380 mm) @ 50 Hz
6 blades per wheel:: 2.16" (55 mm) Blade Width
Turbine drive:: 10 HP (7.5 kW) Each
Abrasive flow:: 300 lbs/min Per Turbine
Throwing speed:: Approx. 290 ft/sec (88 M/Sec)
Approx. Shipping Weight (Blaster Only):: 17,622 lbs Net / 18,154 lbs Gross
Approx. Dimensions:: 12.4' L X 13.2' W x 23.2' H Overall
Heaviest piece:: Main Machine + Turbines, 9,614 lbs, Approx. 18.1' x 6.9' x 8.6'

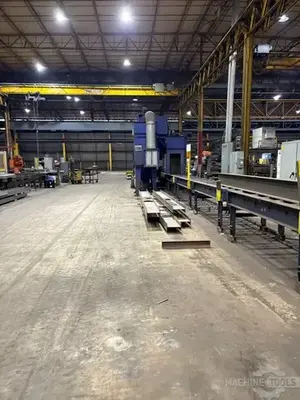

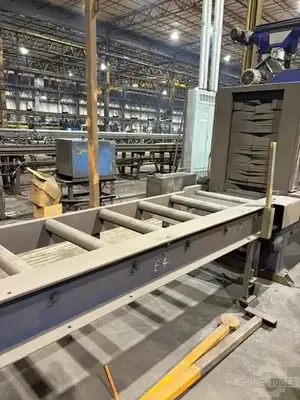

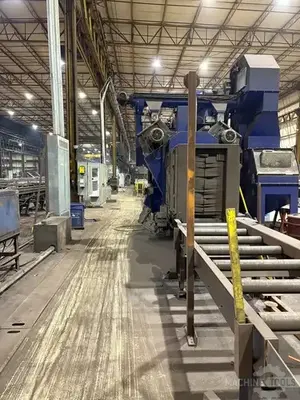

Powered roller sections: 9' And 4' Lengths (1' Gap Between Sections For Future Cross Transfers)
Convey capacity:: 700 lbs/ft
Conveyor inverter variable-speed drive: 20 FPM Forward/Reverse
Compressed air:: 58 To 87 PSI
(4) Agtos High-Performance Direct-Drive Turbines: 2 Bucket Elevators
3-Phase Power + Clean: Air-Wash Separator

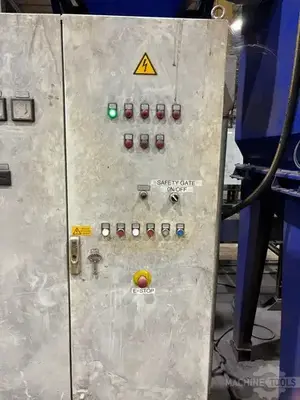

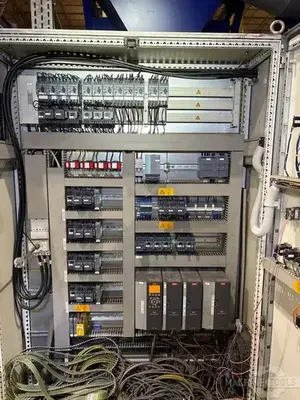

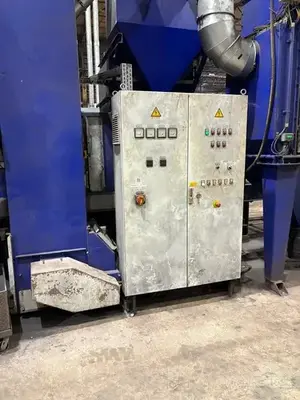

Central Electrical Cabinet: Collection Hopper

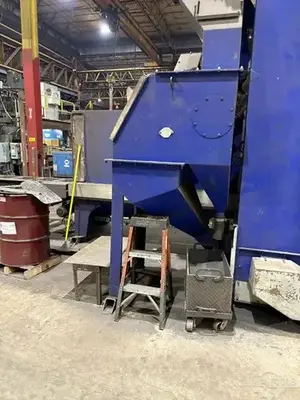

Drop-Out Box: Dry Compressed Air
Fault Lamps: Finish Up To SSPC-SP5 / NACE 1 (White Metal)
Full Abrasive Recycling: High-Velocity Air Blow-Off At Exit

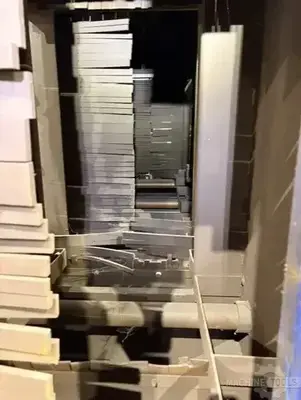

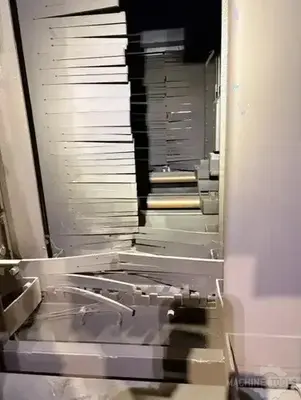

Maintenance Platform: Manganese Steel Blast Cabinet

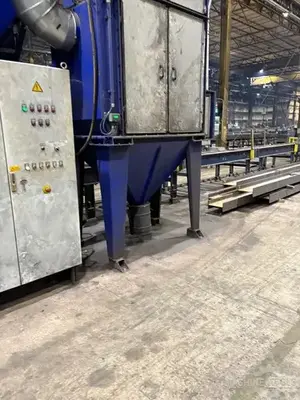

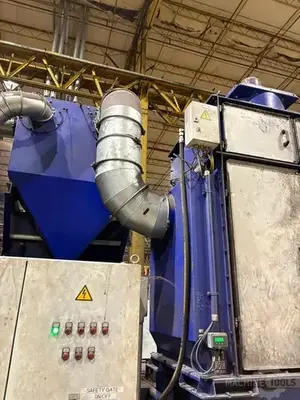

Optical Sensor Auto Start/Stop: Self-Cleaning Cartridge Dust Collector

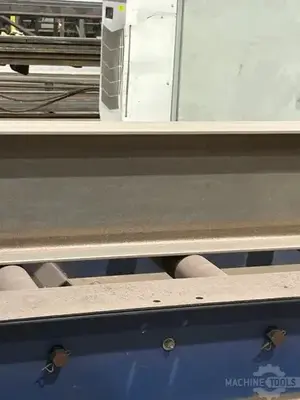

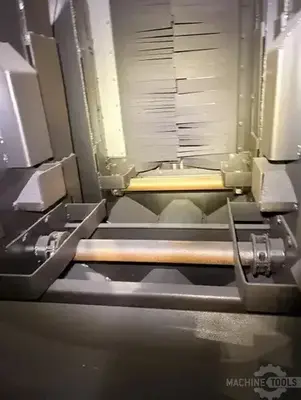

Turbine Ammeters: Variable-Speed Chain-Driven Internal Roller Conveyor
Working And Blasting Hour Meters: Speed Control
E-Stop
