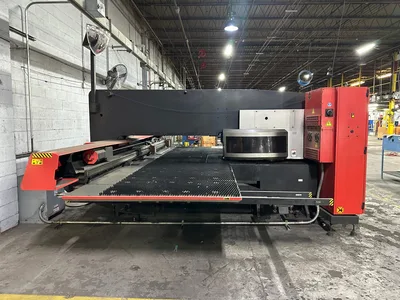

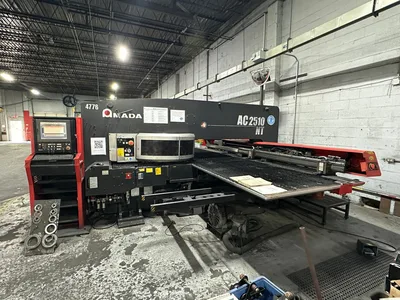

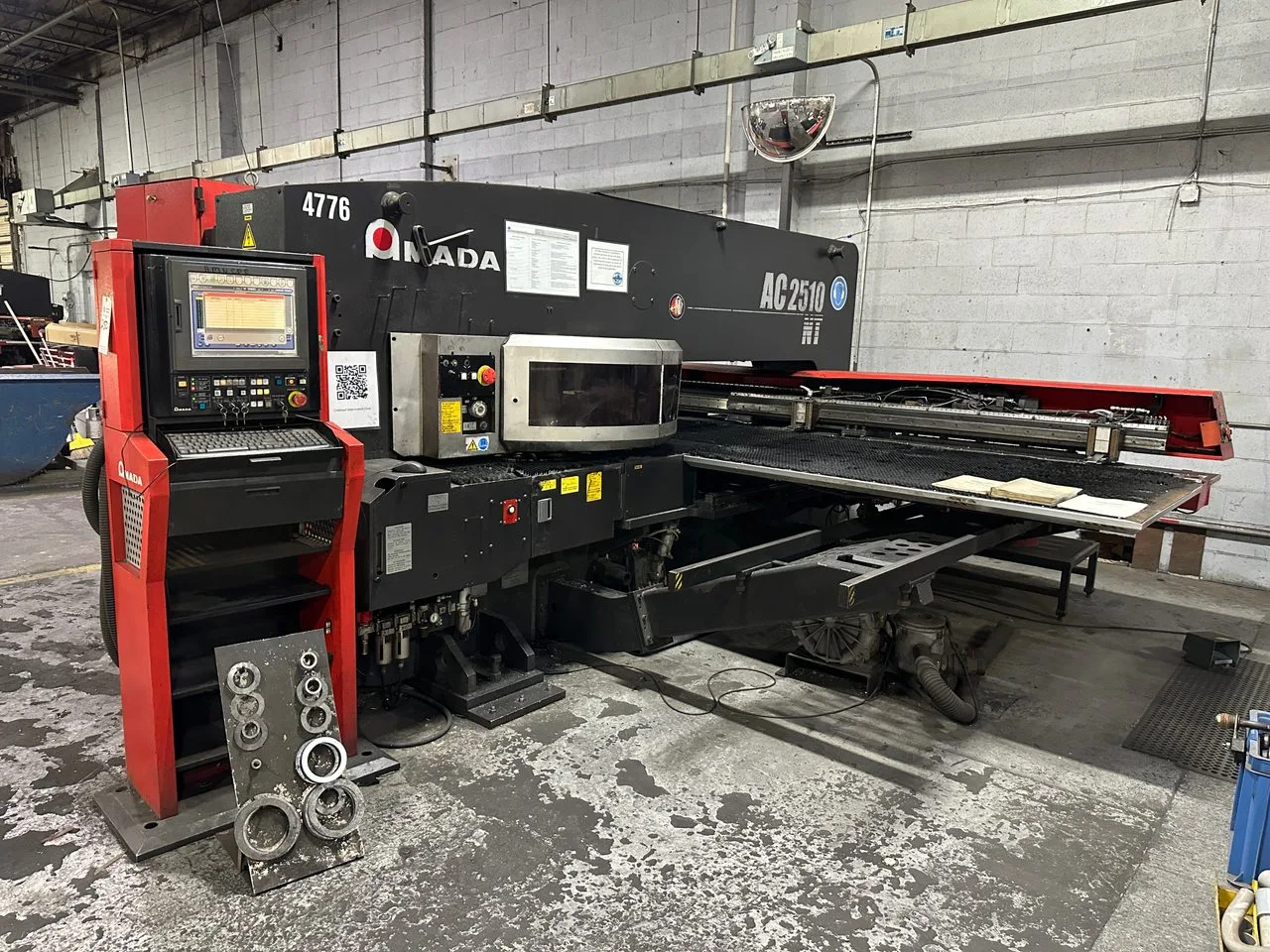

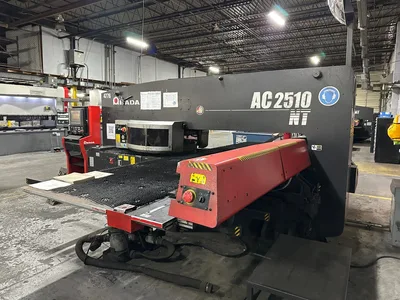

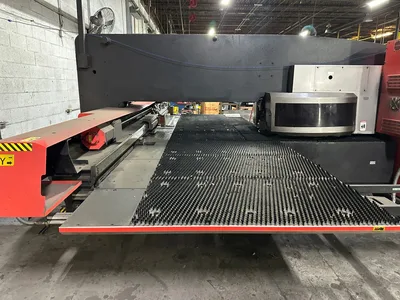

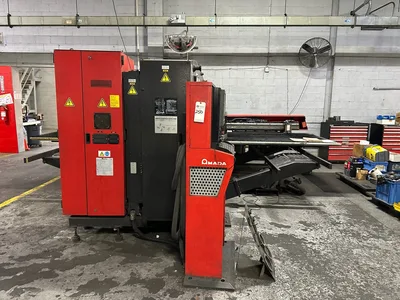

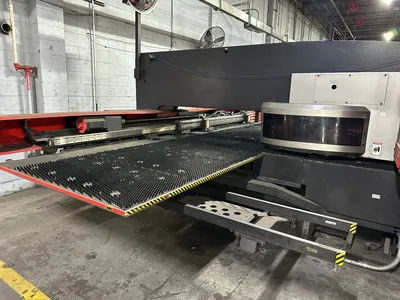

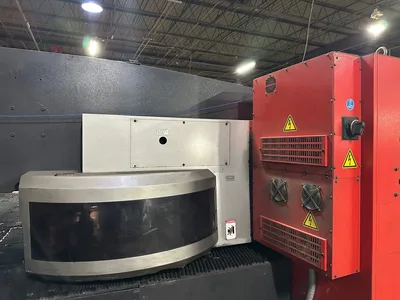

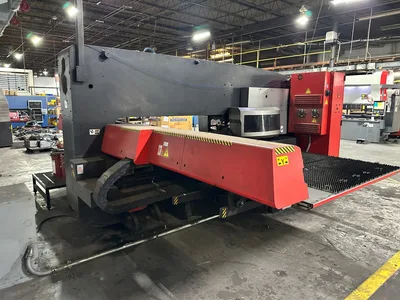

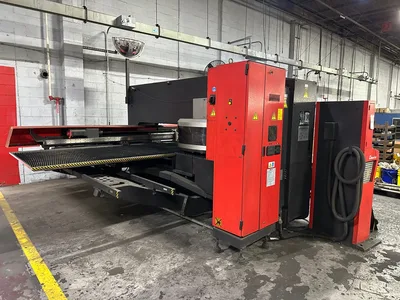

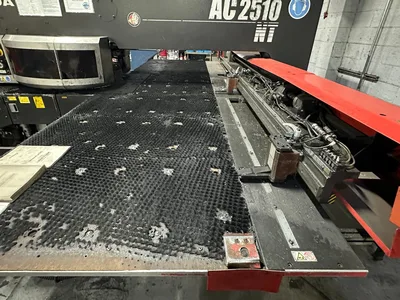

USED 2008 AMADA AC2510NT

Capacity: 22 Ton

Press Capacity: 22 US Tons (200 kN)
Max Sheet Size: 50″ x 196.85″ (1270 mm x 5000 mm)
Max Sheet Thickness: 0.126″ (3.2 mm) / 0.252″ (6.4 mm)
Max Sheet Mass: 110 lbs (50 kg) at F1 / 330 lbs (150 kg) at F4
X-Axis Travel: 98.425″ (2500 mm)
Y-Axis Travel: 50″ (1270 mm)
Punching Accuracy: ±0.004″ (±0.1 mm)
Max Press Stroke Length: 1.654″ (42 mm)
Max Feed Speed (X-Axis): 262 ft/min (80 m/min)
Max Feed Speed (Y-Axis): 197 ft/min (60 m/min)
Turret Speed: 30 RPM

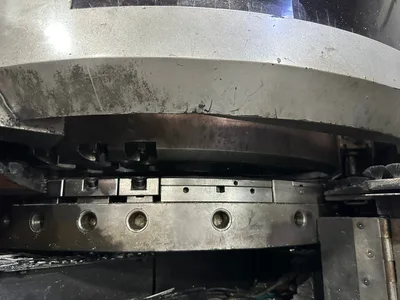

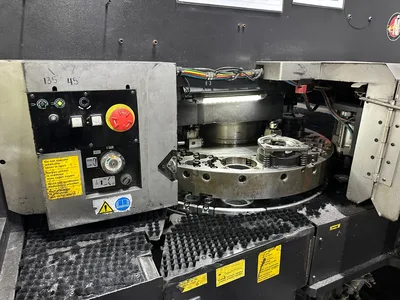

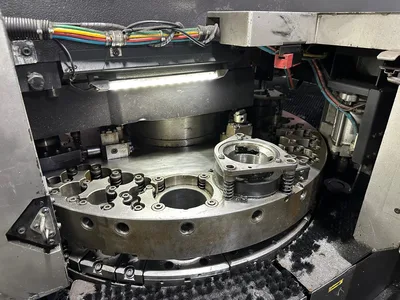

Turret Stations: 51 Stations

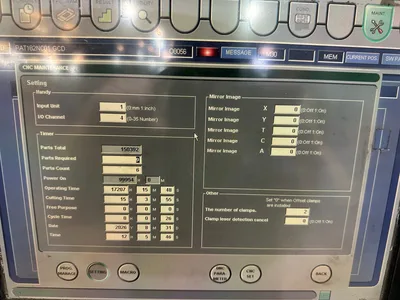

Power On Hours: 99,954 Hours
Operating Time: 17,207 Hours
Cutting Time: 15 Hours

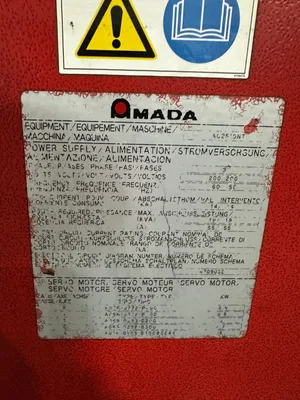

Power Supply: 19 kVA, 3-Phase, 200V, 50/60 Hz
Air Supply: 500 L/min, 72 PSI (0.5 MPa)
Weight: 28,660 lbs (13,000 kg)
Dimensions: 163.5″ x 201.6″ x 82″H (119.2″H with mirror installed)

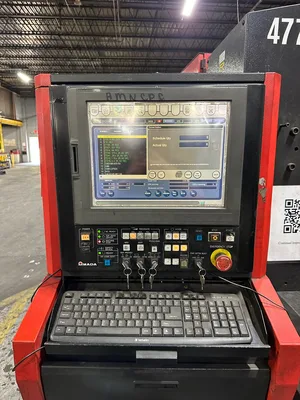

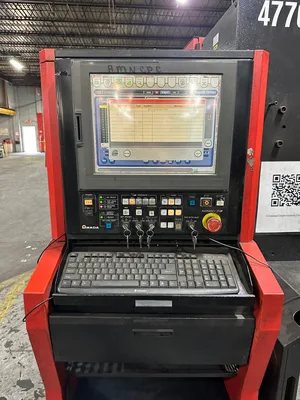

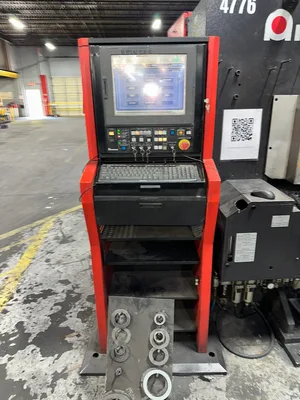

Control: AMNC-F (FANUC 180i-PB)
Equipped With:

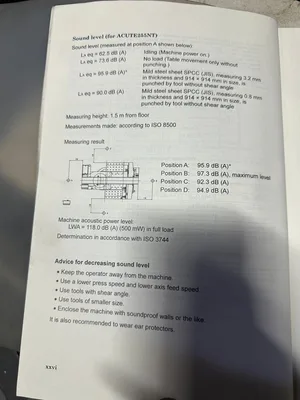

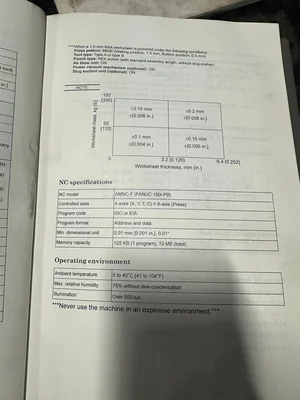

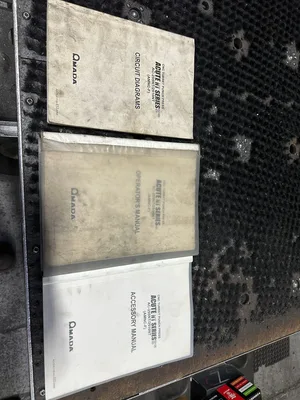

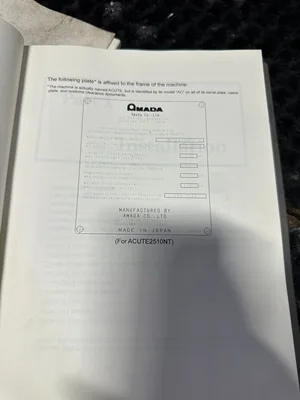

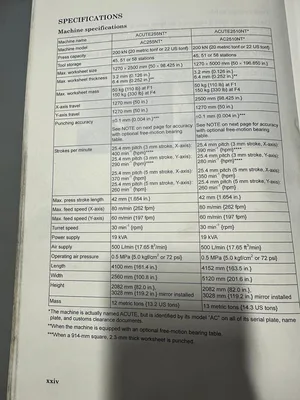

Operator’s, Accessory, and Circuit Diagram Manuals
