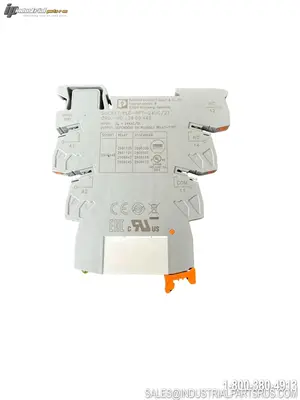

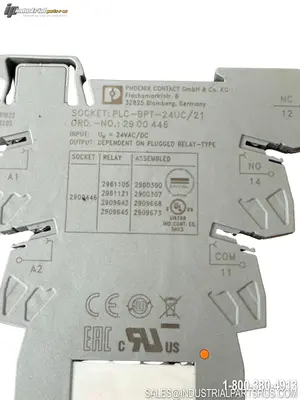

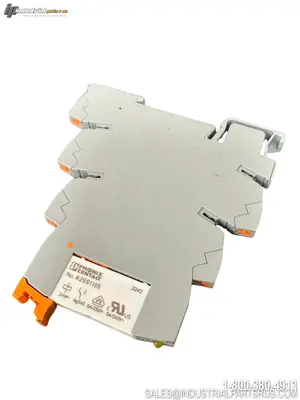

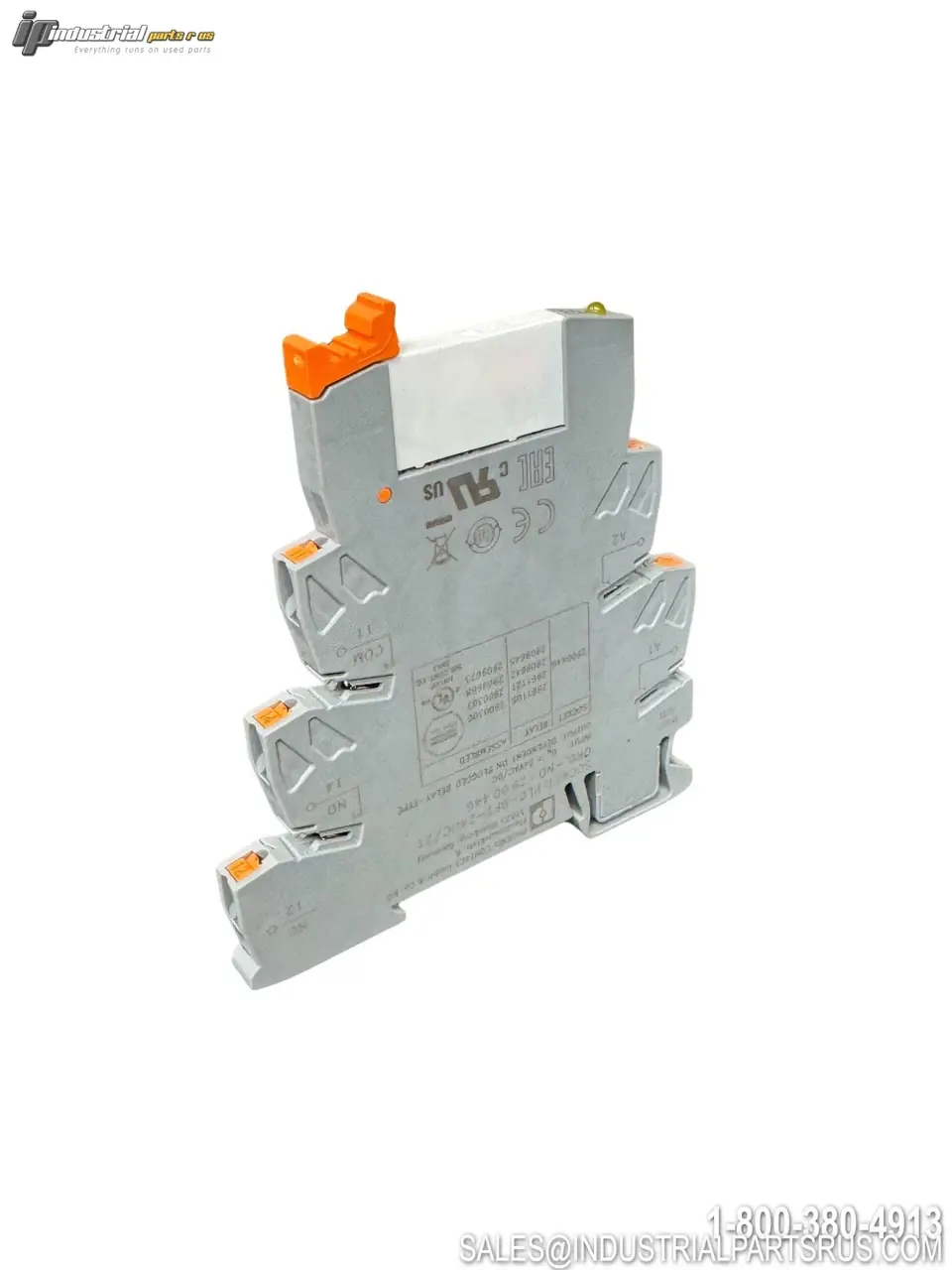

USED PHOENIX CONTACT PLC-BPT-24UC/21

The Phoenix Contact PLC-BPT-24UC/21 (Article No. 2900446) is a 6.2 mm PLC basic terminal block (relay base/socket) from the PLC-INTERFACE product family. It features a push-in connection and is designed for mounting on DIN rail NS 35/7.5, accommodating 1 changeover contact (SPDT) with a nominal input voltage of 24 V AC/DC and a maximum current rating of 6 A. This base block is sold without a relay or solid-state relay and requires a compatible plug-in miniature relay for operation.
Specification
Value
Brand
Phoenix Contact
Model / Part Number
PLC-BPT-24UC/21
Article Number
2900446
Product Type
Relay Base / Relay Socket
Product Family
PLC-INTERFACE
Nominal Input Voltage
24 V AC/DC
Number of Changeover Contacts
1
Connection Method
Push-in connection
Stripping Length
10 mm
Conductor Cross Section (Rigid)
0.14 mm² ... 2.5 mm²
Conductor Cross Section (Flexible)
0.14 mm² ... 2.5 mm²
Conductor Cross Section (Single Ferrule)
0.2 mm² ... 2.5 mm²
Conductor Cross Section (TWIN Ferrule)
2x 0.5 mm² ... 1 mm²
Conductor Cross Section (AWG)
26 ... 14 AWG
Protective Circuit
Bridge rectifier
Status Display
LED
Mounting Type
DIN Rail NS 35/7.5
Mounting Position
Any
Assembly Note
In rows with zero spacing
Operating Mode
100% operating factor
Overvoltage Category
II
Pollution Degree
3
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
Gray (RAL 7042)
Flammability Rating (UL 94)
V0 (Housing)
Ambient Temperature (Operation)
-40 °C ... 60 °C
Ambient Temperature (Storage/Transport)
-40 °C ... 85 °C
Number of Pins
5
Application Standards
IEC/EN 60664-1
EMC Classification
Class A
Approvals / Certifications
CE, UKCA, cULus Recognized, UL Recognized, DNV GL, EAC, Shipbuilding (TAE0000196)
Packing Unit
10 pc
Application
Universal
We warranty all items for 30 days from date of purchase.
