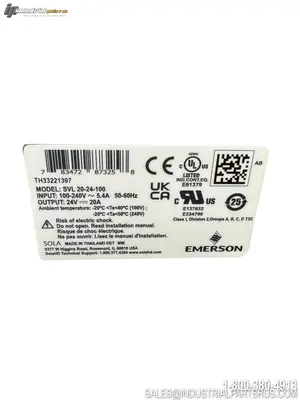

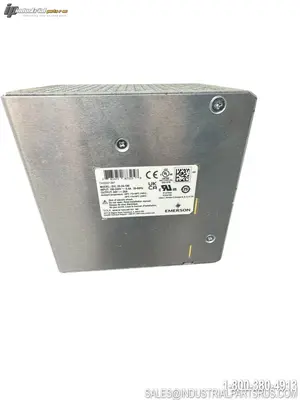

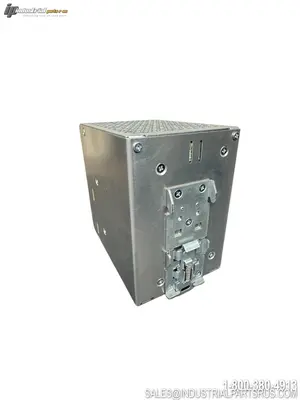

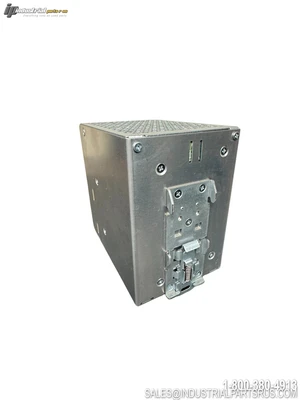

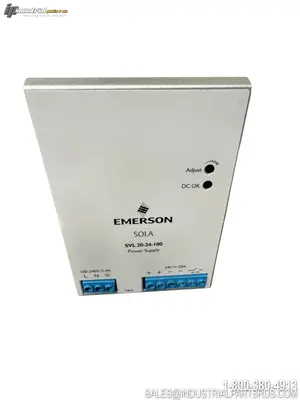

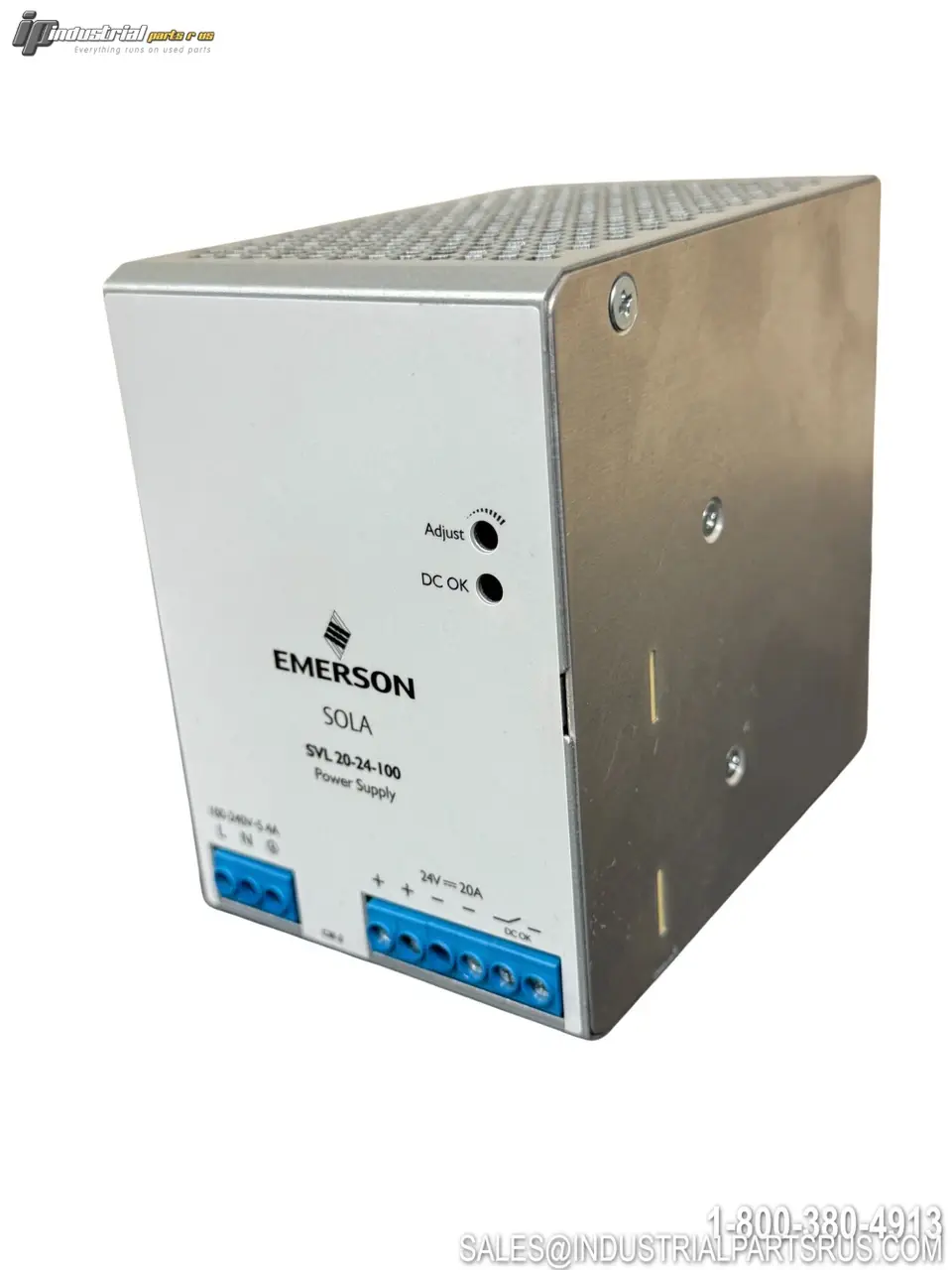

USED EMERSON SOLA SVL 20-24-100 POWER SUPPLY

The Emerson SolaHD SVL 20-24-100 is a single-output, DIN rail-mounted AC/DC switching power supply (SMPS) rated at 480 Watts with a regulated 24 VDC output at 20 Amps. Designed for high-volume industrial and ITE applications, it features a universal input voltage range of 85–264 VAC, active power factor correction, and comprehensive protection against short circuit, overvoltage, overload, and over temperature conditions. Its compact, enclosed plastic housing is convection-cooled (fanless) and includes a DC OK LED indicator, a blinking OCP diagnostic LED, and a DC OK relay output. IP20 rated and RoHS compliant.
Specification
Value
Brand
Emerson SOLA (SolaHD)
Model / Part Number
SVL 20-24-100
Series
SVL Essential DIN Rail
Product Type
DC Power Supply / AC-DC Switching Power Supply
Output Voltage
24 VDC (adjustable 24–28 VDC, ±2% tolerance)
Output Current
20 A (nominal, adjustable)
Output Power
480 W (maximum)
Input Voltage (AC Range)
85–264 VAC (nominal: 100–240 VAC)
Input Voltage (DC Range)
120–375 VDC
Input Frequency
50/60 Hz
Input Current (Nominal)
5.4 A @ 115 VAC; 2.7 A @ 230 VAC
Inrush Current (Max)
40 A @ 115 VAC; 80 A @ 230 VAC
Phase
Single Phase (1AC) or DC
Number of Outputs
1
Ripple & PARD
<100 mVp-p
Load Regulation
<0.5% line; <1.0% load
Efficiency
88% typical
Isolation Voltage (I/P to O/P)
3 kVAC
Cooling Method
Convection (fanless)
Mounting Type
DIN Rail (35mm)
Enclosure / Construction
Enclosed, Plastic Housing
Connection Type
Screw Terminals
Status Indication
DC OK Green LED; Blinking OCP LED; DC OK Relay
Overvoltage Protection (OVP)
28.8–35.2 V; Latch mode, re-power to recover
Overload Protection (OLP)
Current foldforward then hiccup; auto-recovery
Short Circuit Protection (SCP)
Hiccup mode; non-latching (auto-recovery)
Over Temperature Protection (OTP)
Latch mode; no component damage
Operating Temperature
-20°C to +70°C (with derating above rated temp)
Dimensions (H × W × D)
4.87 in × 3.37 in × 5.06 in (123.6 mm × 85.5 mm × 128.5 mm)
Weight
3.200 lbs (1,452 g)
Approvals / Certifications
cULus (UL 508, CSA C22.2 No. 107.1), cRUus (UL 60950-1), CE (IEC/EN 60950-1), RoHS Compliant
Applications
Industrial Control, ITE, Test & Measurement, Scanners, Instrumentation, ATM, Vending Machines
NAED Number
78347287325
We warranty all items for 30 days from date of purchase.
