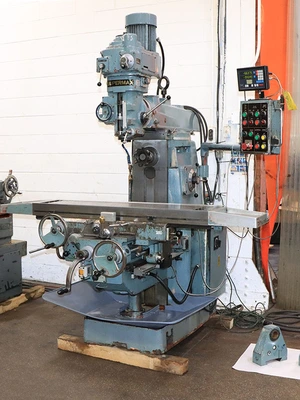

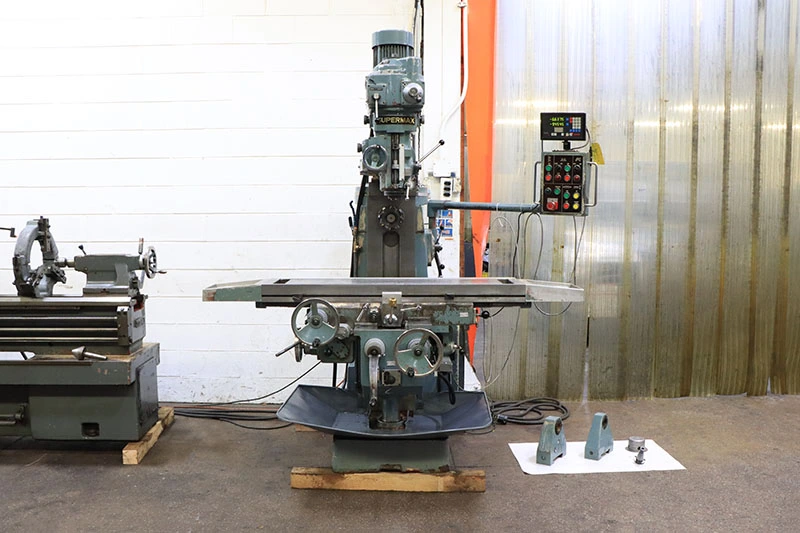

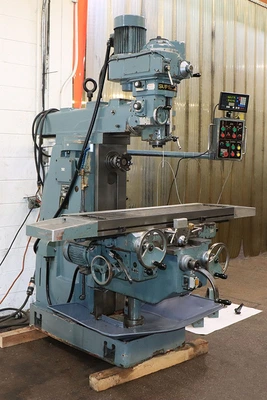

USED 1986 Supermax YCM-2GS

SUPERMAX COMBINATION

VERTICAL AND HORIZONTAL MILL

MODEL YCM-2GS, S/N: 081738, YEAR: 1986

SPECIFICATIONS:

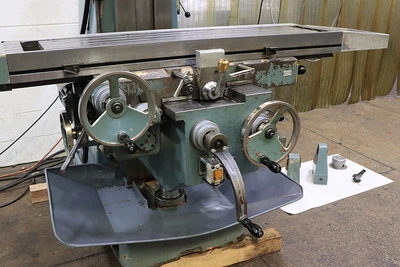

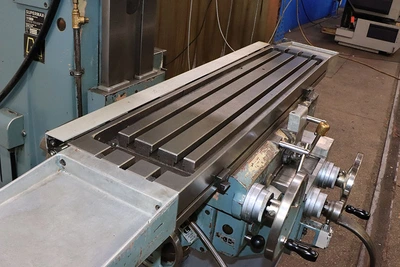

TABLE WORKING SURFACE ..................... 11" X 51-1/8"

RANGE: LONGITUDINAL ....................... 39-3/8"

CROSS: .................................... 11-¾"

VERTICAL (KNEE) ........................... 17-¾"

TAPER IN HORIZONTAL SPINDLE ............... N.S.T. 40

MAX DIST HORIZ SPINDLE CENTER TO TABLE .... 17-¾"

DIS, HORIZ SPINDLE CENTER TO RAM .......... 7"

HORIZONTAL SPINDLE SPEEDS (9) ............. 85 - 1300 RPM

LONGITUDINAL & CROSS FEEDS (12) ........... 5/8"- 17-2"IPM

LONGITUDINAL & CROSS RAPID TRAVERSE RATE .. 98 7/16 IPM

VERTICAL RAPID TRAVERSE RATE: ............. 26 3/16 IPM

DIST VERT SPINDLE NOSE TO TABLE ........... 4-1/8" MIN

                                 .......... 21-7/8"MAX.

DIST FROM VERT SPINDLE CENTER TO COLUMN ... 6 11/16" MIN

                                        ... 27 15/16" MAX

TAPER IN VERTICAL SPINDLE: ................ N.S.T. 40

QUILL FEED: ............................... 5 ½"

POWER VERTICAL FEEDS: (3) .......... .0015, .003 & .005 IPR

SWIVEL: ................................... ± 45°

INF VAR VERT SPINDLE SPEEDS: .............. 75 - 4200 RPM

HORIZ TRAVEL OF RAM ....................... 21 ¼"

SWIVEL OF RAM: ............................ 360°

APPROX WEIGHT: ............................ 5,500 LBS.

DIMENSIONS: ............................... 75" x 83"

                                            93 ½" HIGH

EQUIPPED WITH:

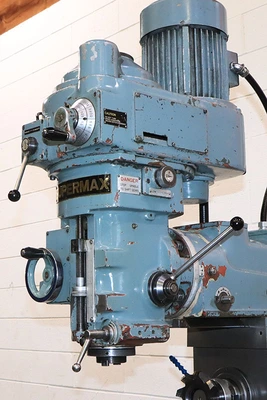

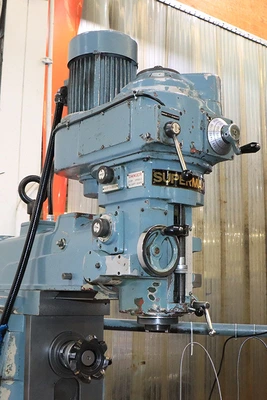

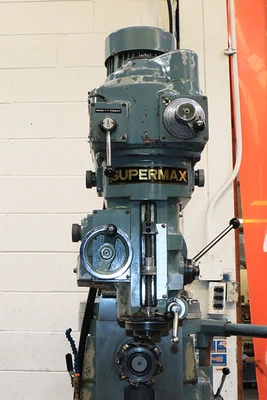

- VARIABLE SPEED VERTICAL HEAD

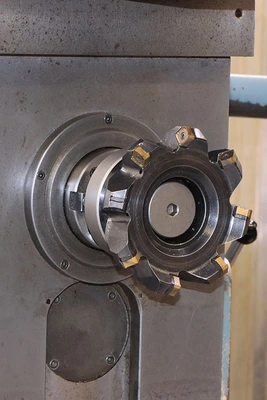

- HORIZONTAL GEARED SPINDLE

- POWER RAPID TRAVERSE

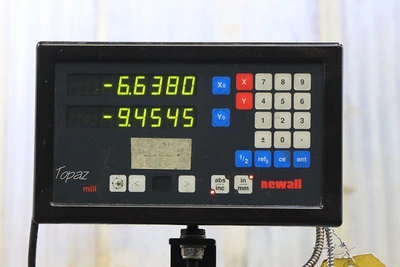

- 2-AXIS DIGITAL READ OUT

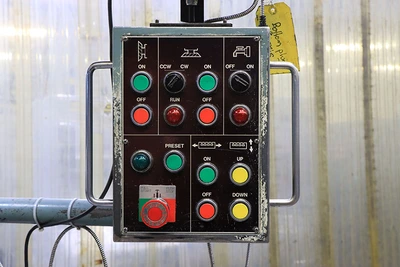

- SWING PENDANT CONTROL

- 5 HORSE POWER VERTICAL SPINDLE DRIVE

- 5 HORSE POWER HORIZONTAL SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
