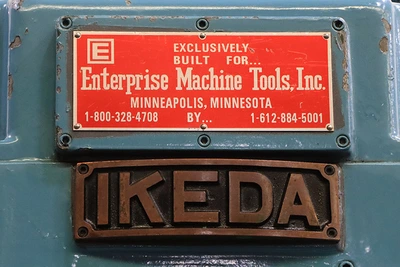

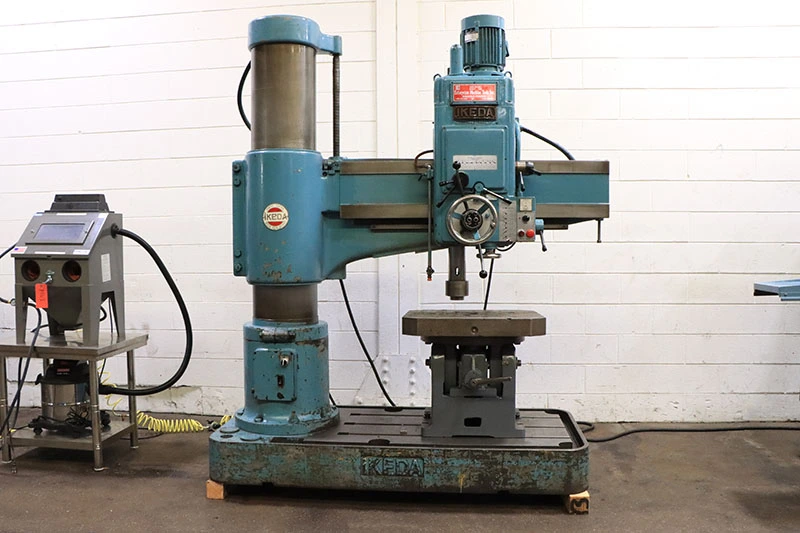

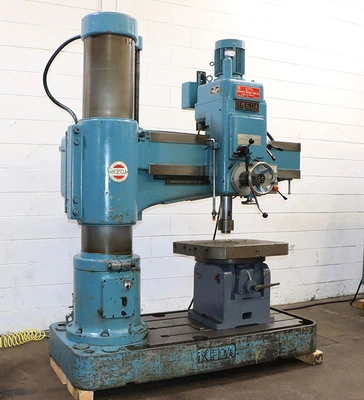

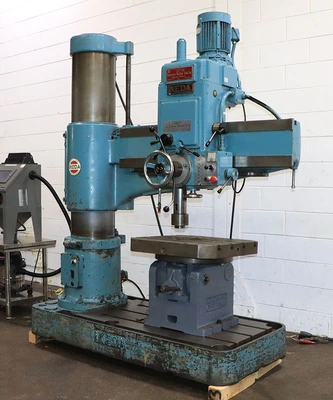

USED 1981 Ikeda RM-1175

4' X 13" IKEDA RADIAL DRILL

MODEL: RM-1175, S/N: 81369, NEW: 1981

SPECIFICATIONS:

COLUMN DIAMETER .................. 13-5/8"

CENTER OF SPINDLE TO COLUMN ...... 48"

MINIMUM COLUMN TO SPINDLE ........ 10"

MAXIMUM DISTANCE SPINDLE TO BASE . 54-1/2"

MINIMUM DISTANCE SPINDLE TO BASE . 12-1/2"

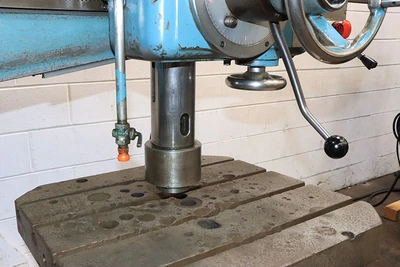

STROKE OF SPINDLE ................ 14-1/2"

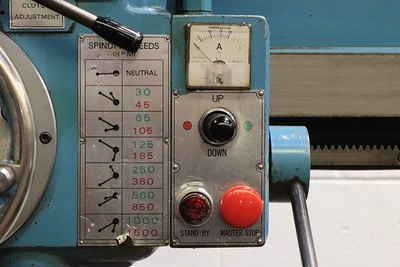

SPINDLE SPEED RANGE (12) ......... 30 - 1500 RPM

SPINDLE TAPER .................... NO. 5 MORSE

QUILL DIAMETER ................... 3-5/8"

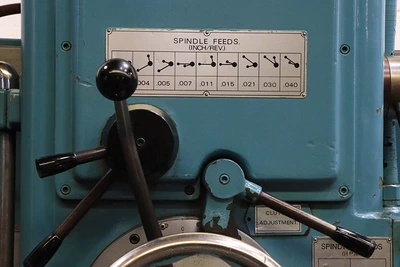

SPINDLE FEEDS (9) ................ .003 - .040 IPR

DRILLING CAPACITY:

IN STEEL ......................... 2-1/2"

IN CAST IRON ..................... 2-3/4"

TAPING CAPACITY:

IN STEEL ......................... 2"

IN CAST IRON ..................... 2-3/8"

BORING CAPACITY:

IN STEEL ......................... 4"

IN CAST IRON ..................... 6"

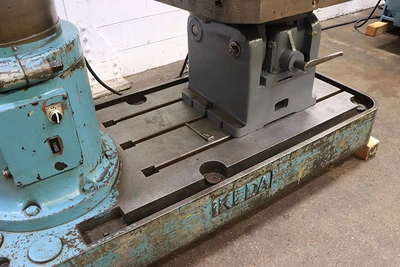

WORKING SURFACE OF BASE .......... 34" X 50"

T-SLOTTED BOX TABLE .............. 18" X 26-1/2" X 16"

APPROXIMATE MACHINE WEIGHT ....... 7,100 LBS

APPROXIMATE DIMENSIONS ........... 78" X 39" X 92"

EQUIPPED WITH

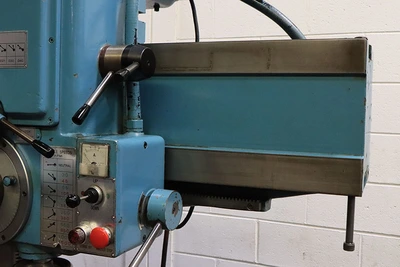

POWER ELEVATION OF ARM ON COLUMN

POWER CLAMPING (HEAD & ARM)

JOYSTICK CONTROL FOR REVERSE TAPPING

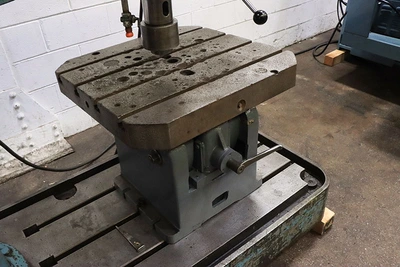

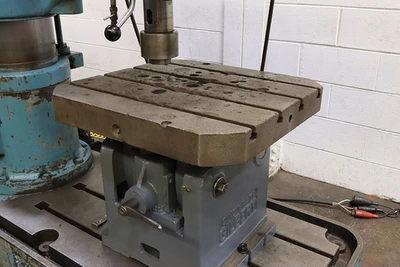

CINCINNATI-GILBERT T-SLOTTED UNIVERSAL TABLE

COOLANT SYSTEM

7.5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
