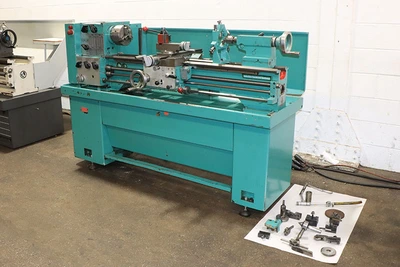

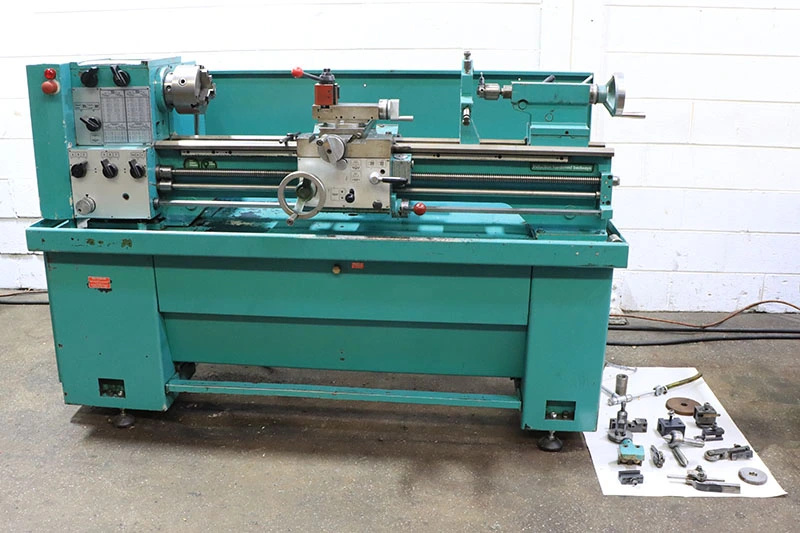

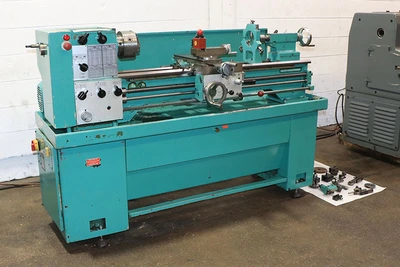

USED 1980 Harrison M300

13" X 40" HARRISON ENGINE LATHE

MODEL: M300, S/N: 311075, NEW: 1980's

SPECIFICATIONS:

SWING OVER BED ......................... 13-1/8"

SWING OVER SADDLE ...................... 8-1/4"

DISTANCE BETWEEN CENTERS ............... 40"

HOLE THROUGH SPINDLE ................... 1-1/2"

SPINDLE NOSE, CAMLOCK, SIZE ............ D1-4"

SPINDLE SPEED RANGE(12) ................ 40 - 2,500 R.P.M.

LONGITUDINAL FEED RANGE ................ .001 - .040 IPR

CROSS FEED RANGE ....................... 1/2 OF LONGITUDINAL

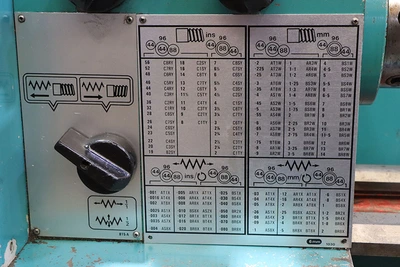

THREAD RANGE:

     INCH .............................. 2 TO 56 T.P.I.

     METRIC ............................ .2 TO 14 MM

TAILSTOCK SPINDLE DIAMETER ............. 2.2"

TAILSTOCK SPINDLE TAPER ................ #3MT

TAILSTOCK SPINDLE TRAVEL ............... 4-3/8"

APPROXIMATE FLOOR SPACE ................ 84" X 37" X 56"H

APPROXIMATE WEIGHT ..................... 2,000 LBS.

EQUIPPED WITH:

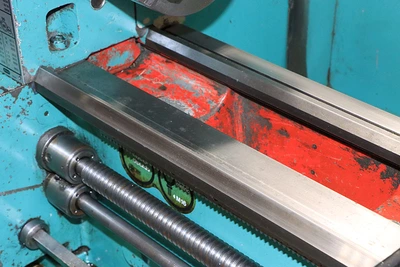

- HARDENED BED WAYS

- INCH/METRIC THREADING CAPABILITY

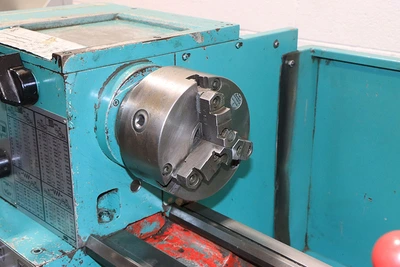

- 3-JAW PRATT BURNERD CHUCK

- TAPER TURNING ATTACHMENT

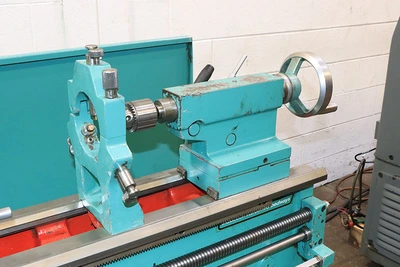

- STEADY REST

- DORIAN QUICK CHANGE TOOLPOST

- JACOBS DRILL CHUCK FOR TAILSTOCK

- HEADSTOCK CENTER SLEEVE

- LIVE CENTER FOR TAILSTOCK

- THREADING DIAL

- FOOT BRAKE

- 3 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
