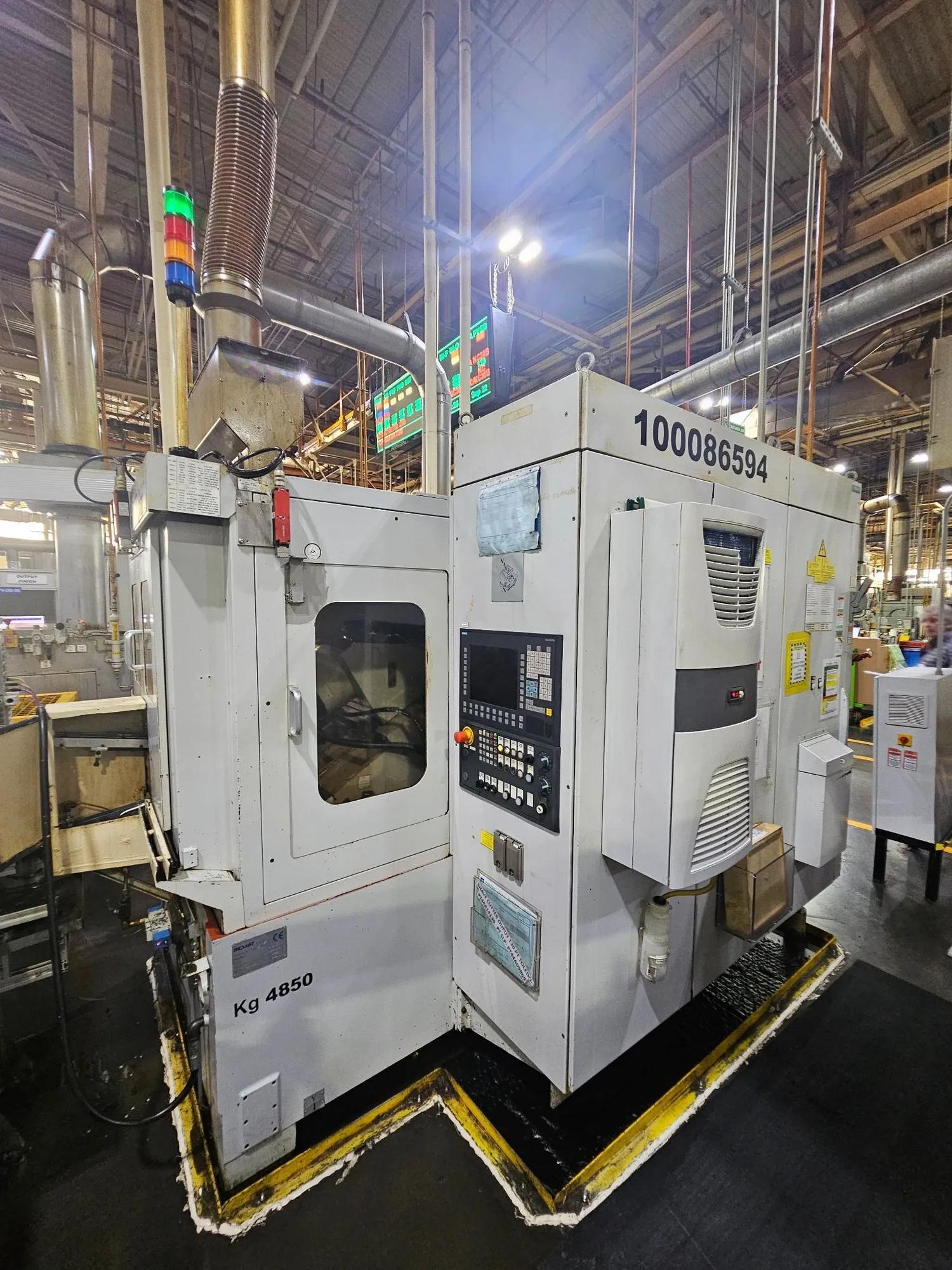

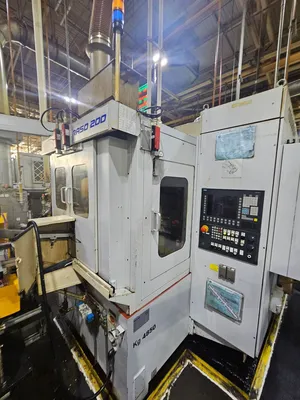

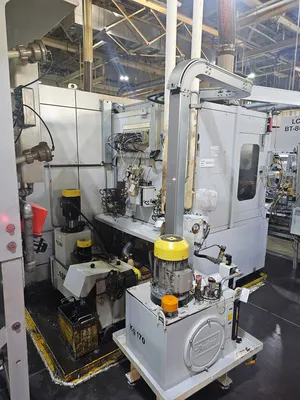

USED SICMAT RASO 200
Overview
The RASO 200 shaving machine is the ideal match for transmission gears, motorcycle gears, pump gears. Speed and flexibility are unsurpassed...inspect one today.
Specs
Specifications:
Maximum Workpiece Diameter: 200 mm
Maximum Workpiece Length: 100 mm
Maximum Outside Diameter: 200 mm
Maximum Face Width: 100 mm (42)
Minimum/Maximum Module: 0.5 - 5.0 mm
Minimum/Maximum Distance Between Shaving Cutter & Work piece Axis
(Standard Tailstock Height): 110-202 mm
Minimum/Maximum Diameter Of Shaving Cutter: 178-245 mm
Shaving Cutter Bore Diameter: 63.5 (100)
Minimum/Maximum Shaving Cutter Width (Standard): 19-50.8
Table Oscillation: +/- 1.7 degrees
Shaving Cutter Spindle Speed: 400 RPM
Equipped With

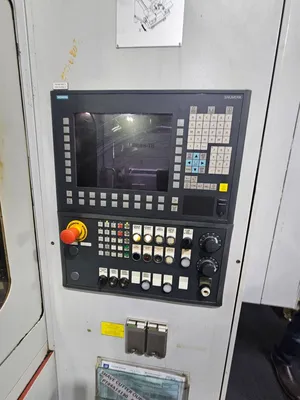

Siemens 840D Control
Auto Load
Chip Separator
Panel AC
