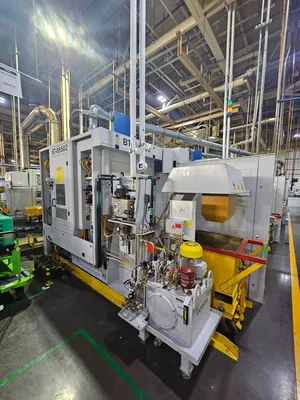

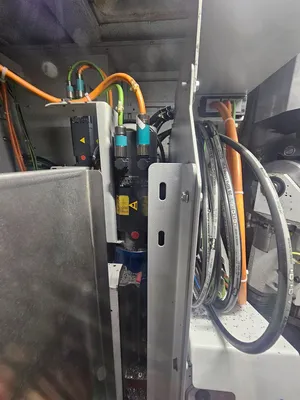

USED 2008 LIEBHERR LC-80
Overview

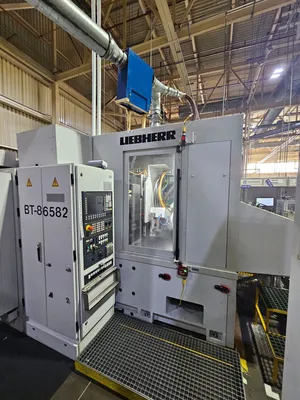

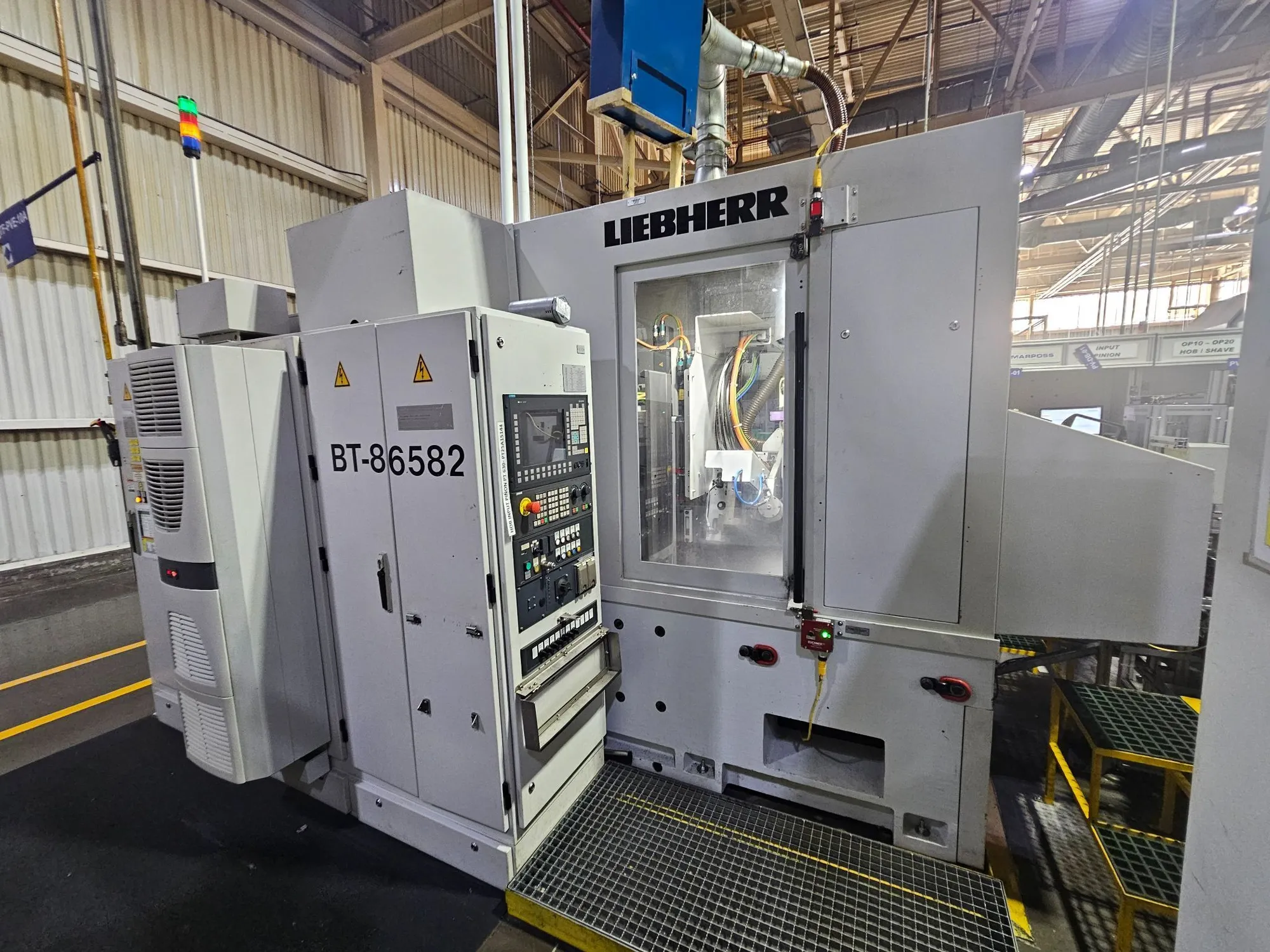

LIEBHERR LC-80 CNC Gear Hobber available. Max workpiece dia. 80 (*120) mm, module 3, axial travel 250 mm, hob speed up to 6,000 RPM. Equipped with Siemens 840D, hydraulic clamping, and more. Ideal for precision gear manufacturing of transmission & motorcycle gears.
Specs
Specifications:
Maximum Workpiece Diameter: 80 mm (*120 mm)
Maximum Nominal Module: 3(5)
Workpiece Weight: 15 kg
Maximum Workpiece Length (Manual Loading): -50mm,+450
Maximum Hob Slide Travel: 250/400 mm
Table Diameter: 145 mm
Table Speed: 150/250/800 Min-1
Center Distance Hob/Work Table: 10-200 Min-Max
Hob Head Swivel Angle: +/-45 Degrees
Maximum Shift Travel: 180 mm
Maximum Hob Diameter: 90 mm
Maximum Hob Length: 220 mm
Maximum Hob Speeds: 1,000-6,000 RPM
Driving Power Hob Spindle: 15/23 kW
Total Connected Load: 25-35 ca. kVA
Weight of Machine W/Tailstock Column: 10,000 ca. kg
Equipped With

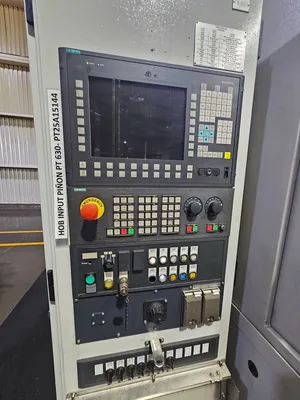

Siemens 840D Control
Hydraulic Work Clamping
Auto Load
120 Degree Ring Loader
Deburr Tool
Tailstock
Chip Conveyor
Dry Cutting

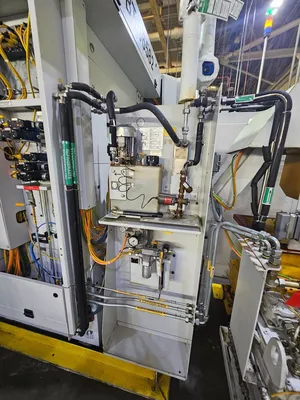

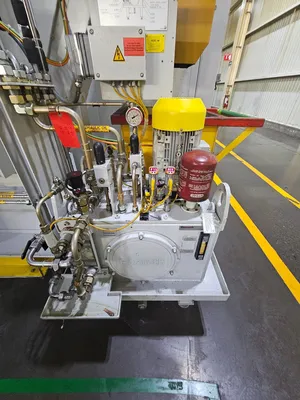

Hydraulic System
Vogel Lube

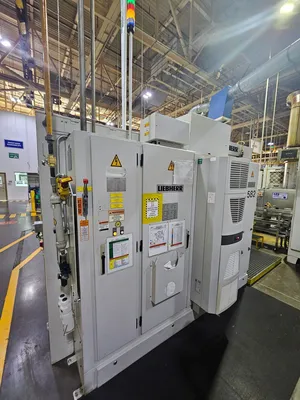

Panel AC

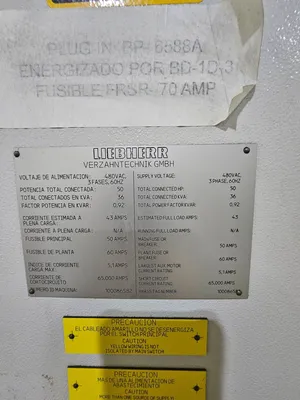

480/3/60 Electrics
CE Mark
