USED D.C. MORRISON K

Ontario, Canada
288Listings|157Followers
Overview
Keyseaters

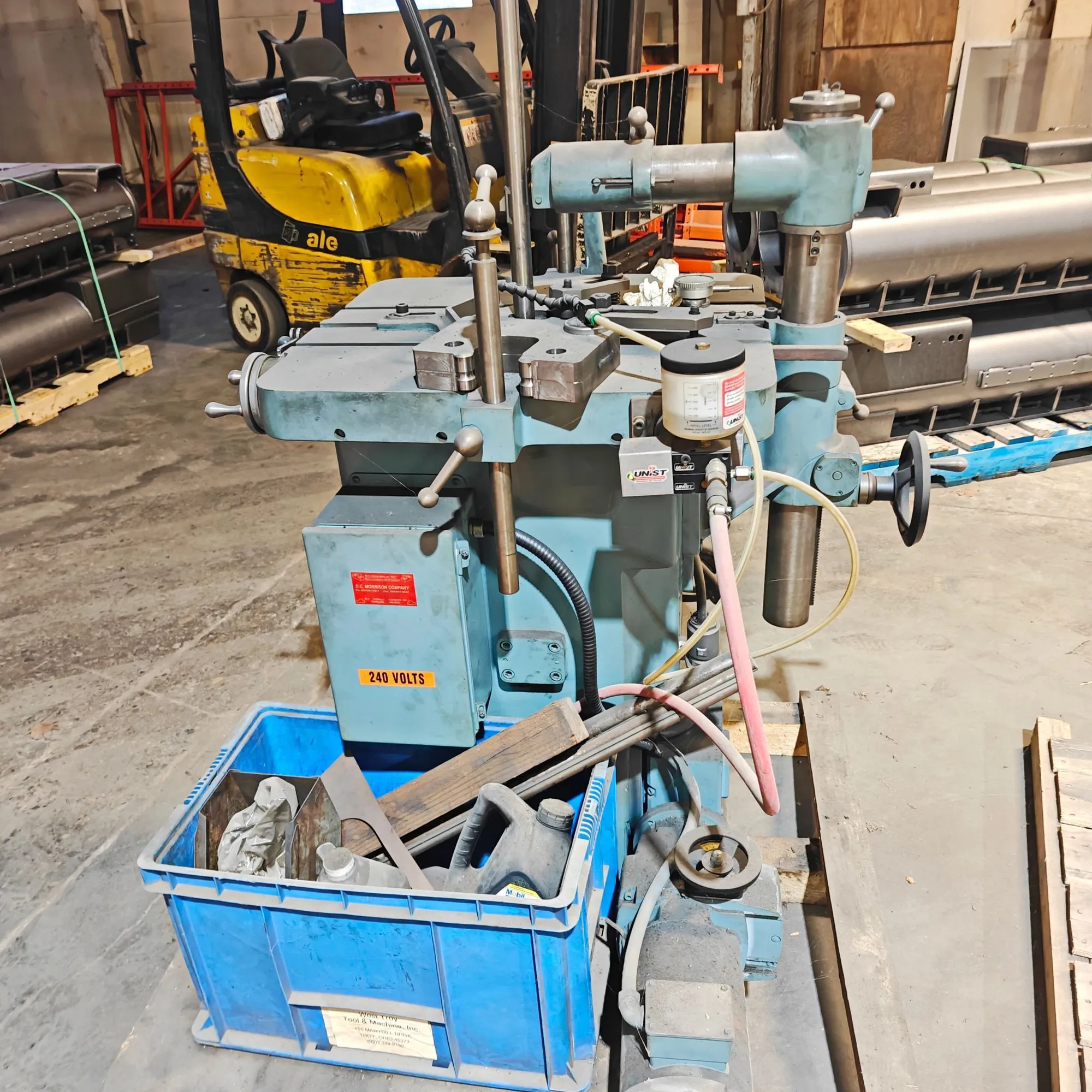

D.C. Morrison Model K 1-1/4" Heavy Duty Keyseater, Adjustable Speed Drive, 3-Position Automatic Feed, Cross-Slide Table W/ Handwheel Adjustment, Adjustable Workholding Clamps, Integrated Coolant System, Automatic Lubrication System, Cutter Bar Support Assembly

Specs
Max Keyway Capacity
1.25"
31.75 mm
Min Keyway Capacity
0.0325"
0.8255 mm
Max Length of Cut
9"
228.6 mm
Length Of Stroke
3" / 4.5" / 6" / 7.5" / 9"
3" / 4.5" / 6" / 7.5" / 9"
Strokes Per Minute
Adjustable
Adjustable
# Of Feeds
3
3
Feeds
0.002" / 0.004" / 0.006"
0.002" / 0.004" / 0.006"
Max Dia. Cutting Bar
1.25"
31.75 mm
Distance 1" Cutter To Column
16.25"
412.75 mm
Max Distance Under Std Clamps
14"
355.6 mm
Distance Between Clamps
25.5"
647.7 mm
Table-L
27"
685.8 mm
Table-W
24"
609.6 mm
Table Height From Floor
36"
914.4 mm
Power
2 hp
1.5 kW
Made In
United States
United States
Dimensions
36" X 48" X 54"
36" X 48" X 54"
Weight
1,400 lb
1,400 lb
Equipped With

Adjustable speed drive
Adjustable stroke length
3-position automatic feed
Cross-slide table w/ handwheel adjustment
Adjustable workholding clamps
Cutter bar support assembly
Manual stroke positioning controls
Integrated coolant system
Automatic lubrication system
Magnetic starter w/ start/stop controls
