USED ZEISS 435000

MEASURING & ANALYSIS: Microscopes

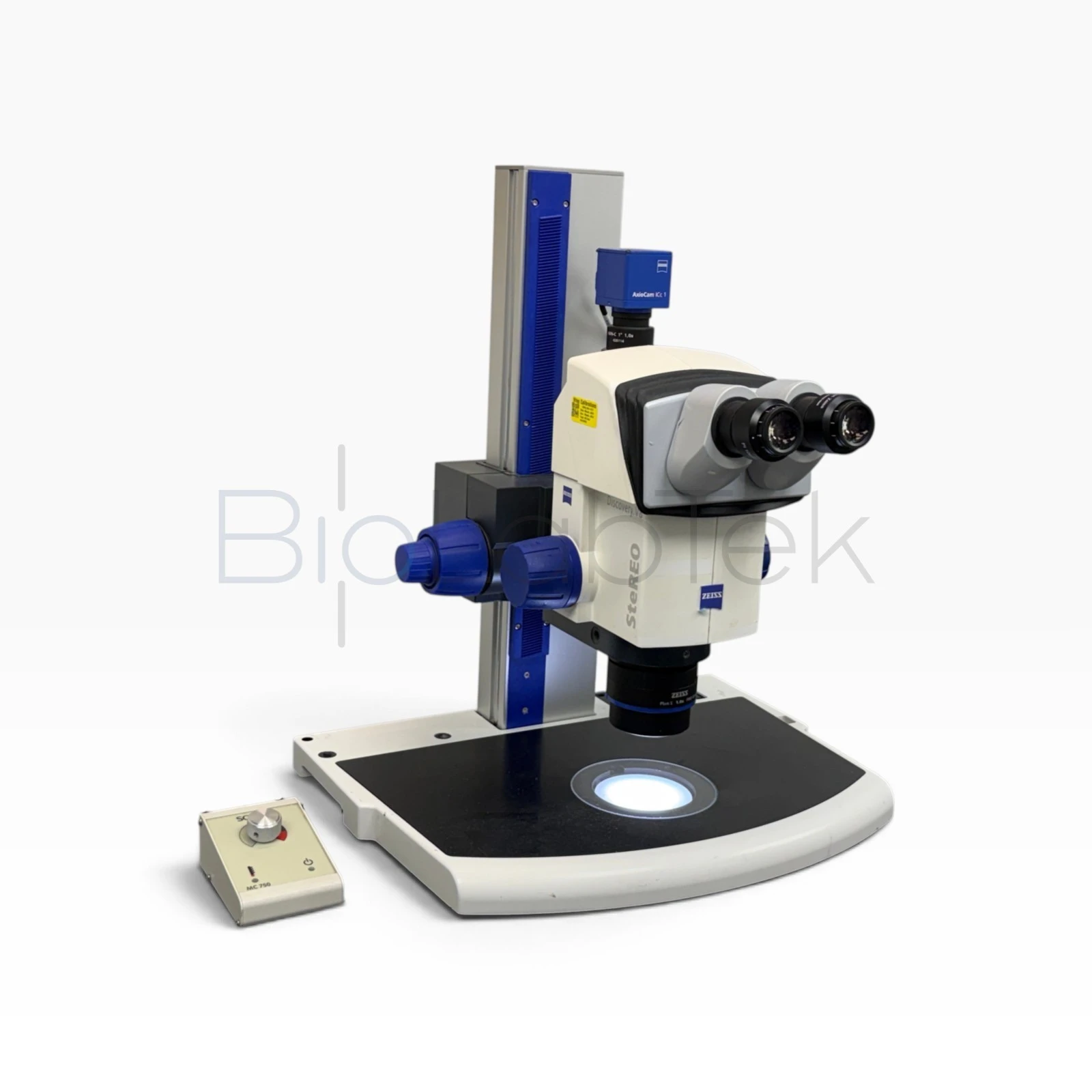

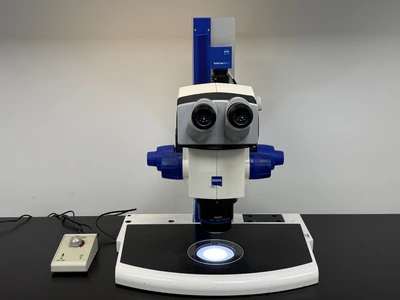

Zeiss SteREO Discovery.V8 Microscope AxioCam ICc 1
Plan S 1.0x Trinocular

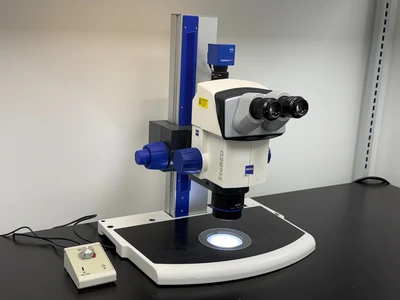

Trinocular stereo zoom microscope with 8:1 zoom, Plan S 1.0x objective, AxioCam ICc 1 camera, and transmitted-light stand.
QC PASS
Tested & Working (NOTE: base adjustment skips)
At a glance
Manufacturer
Carl Zeiss MicroImaging GmbH
Model
SteREO Discovery.V8
Part / Catalog #
435000
Serial #
3911001312
Condition
Used, Base Focus Drive skips (broken thread)
What's Included
Zeiss SteREO Discovery.V8 stereo microscope body (435000) on column focus stand with transmitted-light base
Zeiss Plan S 1.0x FWD 81mm objective
Pair of Carl Zeiss Pl 10x/23 eyepieces (444036-9000)
Zeiss 60N-C 1" 1.0x camera adapter (426114)
Zeiss AxioCam ICc 1 camera (426552-9903-000)

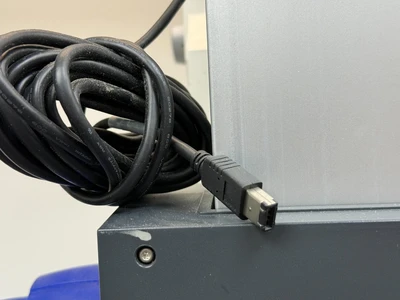

FireWire camera cable
SCHOTT MC 750 illumination controller
24V DC plug-in power supply for the MC 750
Nothing else is included unless shown in the photos
Condition & Testing

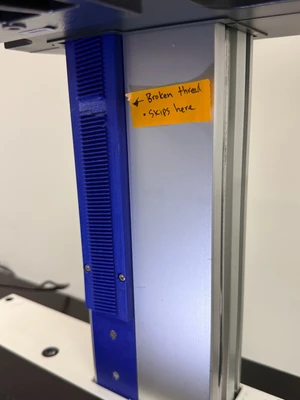

Optics, zoom and illumination function normally, but the focus column has a broken thread on the rack and the focus drive skips at that point as marked on the unit in the photos, so the stand is sold as-is for repair.
Specifications
Microscope type
Stereo zoom microscope, CMO (common main objective) design
Stand / body

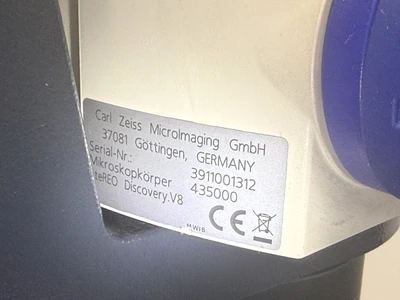

Carl Zeiss MicroImaging GmbH, Göttingen, Germany — "Mikroskopkörper SteREO Discovery.V8", marked Made in Germany
Zoom ratio
8:1
Zoom range
0.8x – 6.4x
Head configuration
Trinocular, tiltable ergonomic binocular tube with camera port
Objective (engraved)

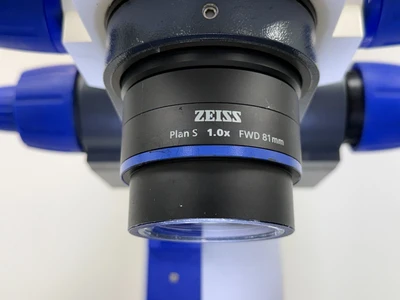

ZEISS "Plan S 1.0x FWD 81mm" — Plan S 1.0x, free working distance 81 mm
Objective mount
Threaded front objective mount on zoom body (single objective position)
Eyepieces (engraved)

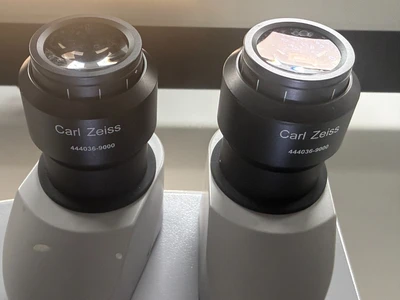

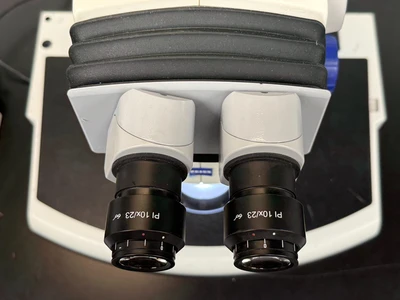

2x "Pl 10x/23" with adjustable diopter rings and foldable rubber eyecups; barrel engraved "Carl Zeiss 444036-9000"
Eyepiece field number
23
Camera port adapter (engraved)

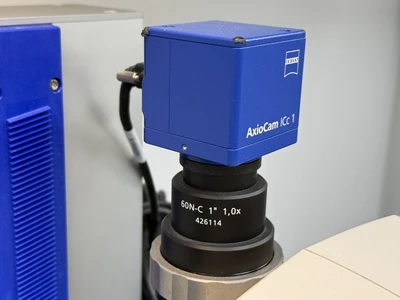

ZEISS "60N-C 1" 1,0x" — 60N C-mount adapter, 1x, for 1" sensor; engraved 426114
Camera attached

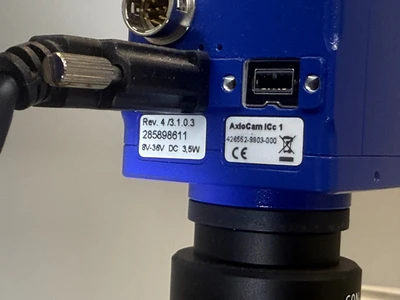

ZEISS AxioCam ICc 1, color CCD microscope camera
Camera part number (label)
426552-9903-000
Camera serial
S/N 285898611, Rev. 4
Camera power
8 V – 36 V DC, 3.5 W
Camera interface
FireWire (IEEE 1394) port plus multi-pin circular connector
Stand type

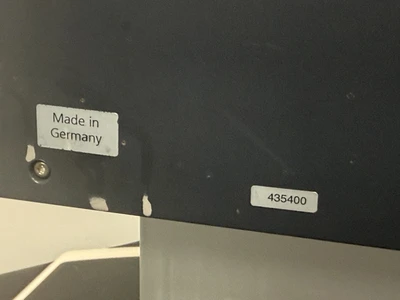

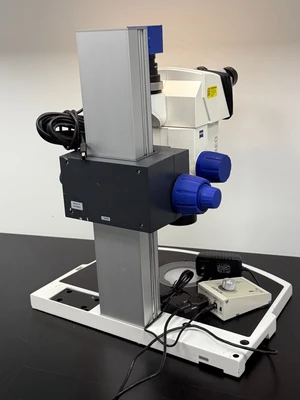

Column stand with coarse/fine focus drive and rack-and-pinion vertical column; column drive marked 435400
Focus controls
Dual-sided coaxial focus knobs (left and right), plus dual-sided zoom knobs on the body
Base

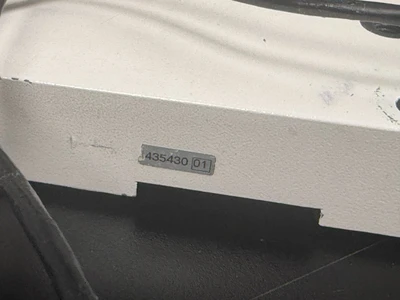

Transmitted-light base plate with circular illuminated aperture and removable black stage plate; base marked 435430 01
Illumination
Transmitted light through base aperture, cold-light source driven by external controller
Illumination controller

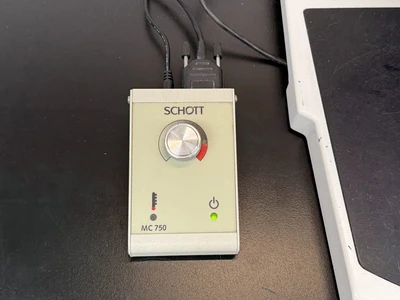

SCHOTT MC 750 benchtop controller with continuous intensity dial, power LED and thermal indicator
Controller power input
24 V DC via external plug-in power supply
Origin marking
"Made in Germany" label on focus drive housing
Specs from manufacturer literature for reference. Verify against your application.
