Unused 2023 Chicago Boiler Company 6,890 Gallon ASME Pressure Vessel – 40 PSIG / Full Vacuum, 650°F Carbon Steel Tank

Manufacturer Information
Manufacturer: Chicago Boiler Company Equipment Type: Vertical ASME Pressure Vessel / Industrial Process Tank Condition: Unused Year Built: 2023 Construction: Carbon Steel ASME Code: Section VIII, Division 1
Chicago Boiler Company is the identified manufacturer of this industrial pressure vessel, designed for demanding process applications involving elevated temperatures, pressure, and vacuum conditions.
This unused 2023 Chicago Boiler Company vertical pressure vessel features an approximately 6,890-gallon flooded capacity, carbon steel construction, and an ASME Section VIII, Division 1 design and stamp.
The vessel is rated for 40 PSIG / full vacuum at 650°F, making it a potential solution for compatible high-temperature liquid processing, thermal oil systems, and industrial pressure or vacuum applications.
Description
Available for sale is an unused 2023 Chicago Boiler Company vertical ASME pressure vessel, featuring approximately 6,890 gallons of flooded volume and heavy-duty carbon steel construction.
The vessel measures approximately 96" outside diameter x 200" straight shell, with an overall height of approximately 365-9/16" (30.46 feet).
Designed and stamped in accordance with ASME Section VIII, Division 1, the vessel has a maximum allowable working pressure of 40 PSIG and full vacuum capability at 650°F.
Its minimum design metal temperature is -20°F, providing a defined lower temperature design limit for suitable operating conditions.
The vessel is equipped with an 18" manway for internal access, inspection, and maintenance.

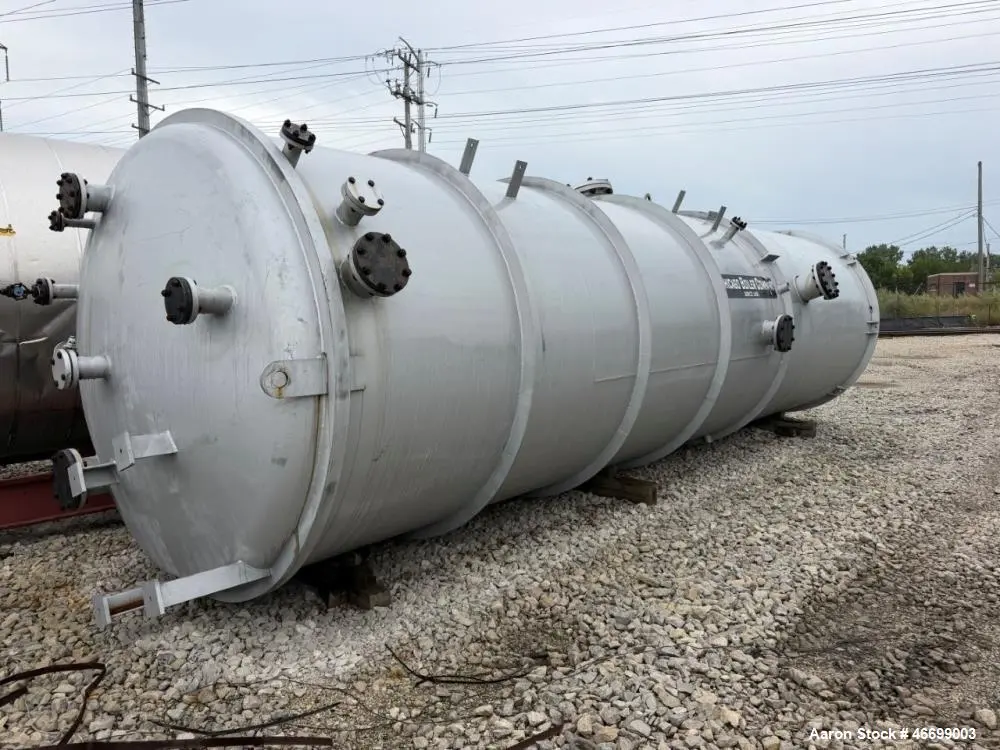

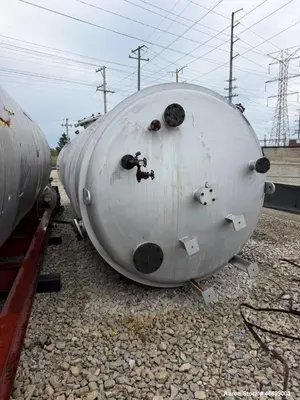

Process connections include a 6" oil inlet, 8" oil connection, 6" relief connection, additional instrument and spare nozzles, and a bottom discharge.

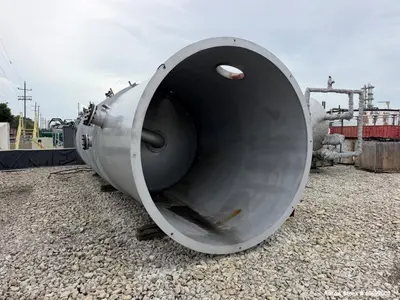

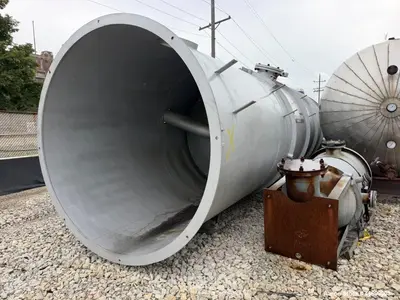

The vessel features a skirt support designed for vertical installation, along with lifting and tail lugs to assist with handling and erection.
Additional features include ladder and platform attachment points and insulation supports, allowing integration into a suitable industrial processing facility.
With an approximate empty weight of 14,157 lbs., this pressure vessel requires appropriate heavy-lift equipment, transportation planning, and engineered installation.

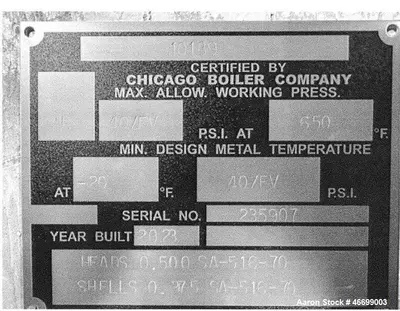

Manufactured in 2023, the vessel is identified by National Board No. 10189 and Serial No. 235907.
This unused Chicago Boiler Company vessel could be suitable for thermal oil processing, high-temperature liquid holding, industrial process systems, vacuum applications, and other compatible pressure vessel services, subject to engineering review.
Specifications

Specification

Details

Manufacturer

Chicago Boiler Company

Equipment Type

Vertical ASME Pressure Vessel

Condition

Unused

Year Built

2023

Material of Construction

Carbon Steel

Vessel Orientation

Vertical

ASME Design Code

Section VIII, Division 1

ASME Status

Designed and Stamped

Approximate Flooded Volume

6,890 Gallons

Vessel Outside Diameter

96"

Straight Shell Height

200"

Overall Height

Approx. 365-9/16"

Overall Height in Feet

Approx. 30.46 Feet

Maximum Allowable Working Pressure

40 PSIG

Vacuum Rating

Full Vacuum

Maximum Design Temperature

650°F

Minimum Design Metal Temperature

-20°F

Manway

18"

Oil Inlet

6"

Oil Connection

8"

Relief Connection

6"

Additional Nozzles

Instrument and Spare Connections

Bottom Discharge

Included

Support Type

Skirt Support

Lifting Lugs

Included

Tail Lugs

Included

Ladder Attachment Points

Included

Platform Attachment Points

Included

Insulation Supports

Included

Approximate Vessel Weight

14,157 Lbs.

National Board Number

10189

Serial Number

235907

The 6,890-gallon figure represents approximate flooded volume, not necessarily recommended operating capacity. Pressure and temperature limits must be evaluated together using the vessel nameplate, drawings, and manufacturer documentation. Relief devices, insulation, ladders, platforms, and process controls should not be assumed included unless separately confirmed.
Typical Applications

High-temperature liquid processing

Thermal oil systems

Industrial pressure vessel service

Vacuum process applications

Process liquid holding

Chemical manufacturing

High-temperature process storage

Industrial fluid handling

Heat transfer fluid systems

Process surge vessel applications

Industrial utility systems

Large-capacity pressure and vacuum processing

Products and Materials This Pressure Vessel Could Be Used For

Compatible thermal oils

Heat transfer fluids

Industrial process oils

High-temperature process liquids

Compatible hydrocarbon-based fluids

Specialty chemical liquids

Industrial liquid intermediates

Compatible process condensates

Liquid process mixtures

Industrial utility fluids

Compatible vacuum-process liquids

Other process fluids suitable for carbon steel construction

Actual suitability depends on fluid chemistry, corrosion allowance, operating pressure, temperature, vacuum conditions, relief-system design, and applicable codes. The vessel should not be assumed suitable for every oil, solvent, or chemical service without engineering verification.
Frequently Asked Questions
- What is the capacity of this Chicago Boiler Company pressure vessel? The vessel has an approximate flooded volume of 6,890 gallons, with a 96" outside diameter and 200" straight shell.
- Is this pressure vessel ASME certified? The vessel is reported as designed and stamped to ASME Section VIII, Division 1, with National Board No. 10189 and Serial No. 235907. Buyers should review the nameplate and supporting documentation.
- What are the pressure and temperature ratings? The vessel is designed for 40 PSIG / full vacuum at 650°F, with a minimum design metal temperature of -20°F.
- What connections are included? The vessel features an 18" manway, 6" oil inlet, 8" oil connection, 6" relief connection, additional instrument and spare nozzles, and a bottom discharge.
- How is this vessel supported and installed? It features a vertical skirt support, lifting and tail lugs, ladder and platform attachment points, and insulation supports. Final installation should be engineered for site-specific requirements.
- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with heavy-equipment rigging, loading coordination, oversized-load transportation, domestic and international freight, customs documentation, and logistics planning. Given the vessel's approximately 30.46-foot overall height, 8-foot diameter, and 14,157-pound weight, specialized transportation and installation planning will be necessary.
