USED 2025 WULFTEC SML-277

The Wulftec 277 Series (SML-277 / SMLCA-277) stretch wrapper, configured with a 104-inch extended height mast and a 30-inch NO-THREAD® powered pre-stretch roll carriage, is a heavy-duty, highly customized industrial pallet wrapping system. Built entirely with structural steel, this platform is specifically tailored to handle ultra-tall, oversized, or high-volume pallet loads that exceed standard warehouse height parameters and require wider film containment.
Key Specifications
Component / Feature Standard Configuration This Custom Configuration
Maximum Wrap Height 80 inches 104 inches (Extended Mast)
Film Carriage Size 20-inch NO-THREAD® 30-inch NO-THREAD® Powered Pre-Stretch
Turntable Deck 77" oversized low-profile 77" oversized low-profile
Weight Capacity 5,000 lbs 5,000 lbs
Turntable Speed Variable up to 16 RPM Variable up to 16 RPM
Control Architecture Allen-Bradley Micro800 / MicroLogix Allen-Bradley PLC with AC variable frequency drives
Custom Module Breakdown
104" Extended Height Mast
The standard 80-inch vertical mast limit is replaced with a 104-inch structural steel tower extension. This modification is vital for stabilizing top-heavy, tall, or lightweight stacked goods (such as empty plastic containers, e-commerce boxes, or insulation bundles) before they leave the facility. The carriage travel is smoothly guided by a heavy-duty dual-chain drive to eliminate vibration at peak heights.

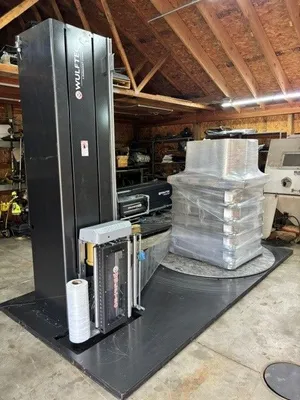

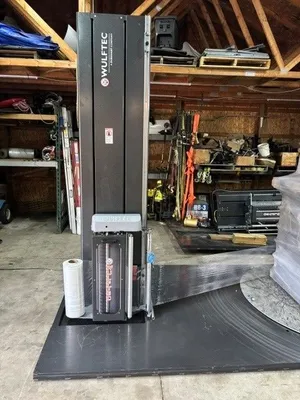

30" NO-THREAD® Powered Pre-Stretch Carriage
Upgrading from the standard 20-inch roll to a 30-inch carriage drastically reduces the total number of rotations required to fully wrap a 104-inch load, boosting overall throughput efficiency.
• Zero Threading Gate: The spring-loaded carriage gate opens completely for fast, effortless film placement. Operators do not need to thread film manually through interlocked rollers.
• Pre-Stretch Efficiency: The system is engineered with a standard 200% pre-stretch ratio (capable of adjusting from 50% up to 400% based on film quality), significantly lowering film costs per pallet load.
• Lifetime Roller Guarantee: Wulftec provides a lifetime warranty exclusively on the blue compound material used on its pre-stretch rollers.
Low-Profile 77" Turntable Base
The machine features an oversized 77-inch diameter turntable made from 3/8-inch solid steel plate. Supported by 40 lubrication-free, heavy-duty table supports, it effortlessly manages asymmetric or massive loads up to 5,000 pounds. Because it sits just 3 inches off the ground, it is easily accessible by warehouse hand pallet jacks when equipped with an optional ramp attachment.

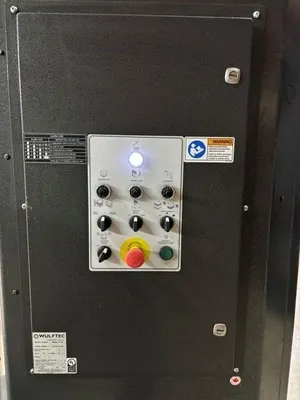

Industrial Grade Control Systems
The unit is managed via a NEMA 4/12 dust-tight and waterproof control enclosure. Powered by an Allen-Bradley PLC, it gives operators discrete control over separate up/down carriage speeds, variable turntable RPM, and customizable top/bottom wrap counters via an intuitive interface.
