USED MAGNAPOWER ECS1500RE
Overview

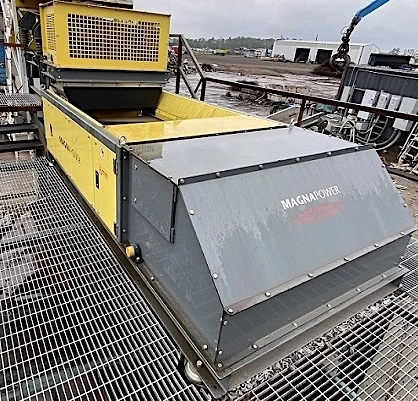

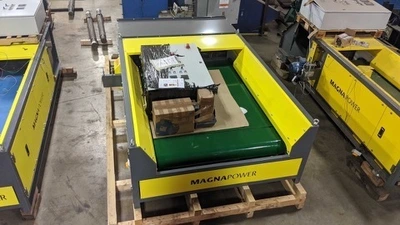

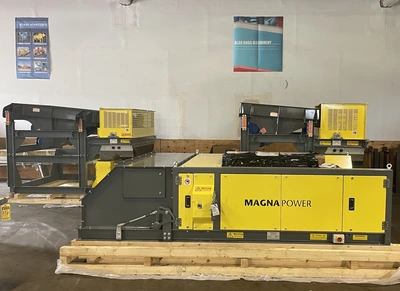

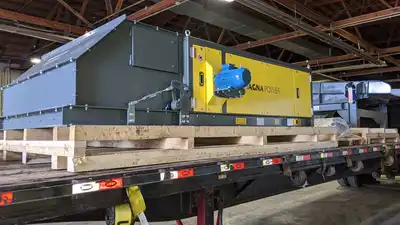

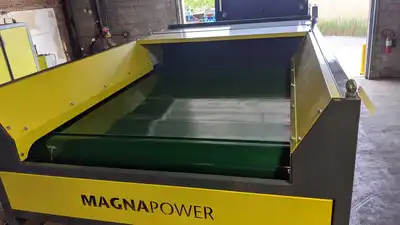

60" New Magnapower Eddy Current Sorting System w Controls
● Standard 60” ECS Rotor
● Splitter Hood Lighting w/ Control for ECS 1500
● 60” PMDS RE Top Fed Drum & 60” Vibratory Feeder with Stand & Integrated Controls
● Custom covers with three inspection/de-dust hatches.
● Magnapower’s OEM limited warranty
● Motor mounted on the left side viewed from the feed end
● Standard length machine.
● Feed enclosure customization with opening for material entry
Eccentric Rotor / High Frequency / High Inductive Force / Easy Maintenance
Put proven Magnapower performance to work for you. In use throughout North America, Europe & Globally, Magnapower enjoys a well earned reputation for quality engineering, outstanding performance & ease of use/maintenance.
Specs
• Manufacturer: Magnapower Equipment Ltd.
• Model: ECS1500RE
• Equipment Type: Eddy Current Sorter
• Condition: New
• SEPARATION SYSTEM
• Effective Belt Width: 60" (1,500 mm)
• Rotor: High-Frequency Eccentric Design
• Magnet System: Rare Earth Neodymium
• Function: Non-Ferrous Metal Recovery
• POWER & DRIVE
• Rotor Motor: 3 kW (Approx. 4 HP)
• Belt Motor: 1.5 kW (Approx. 2 HP)
• Electrical: 240/480V, 3-Phase, 60 Hz
• VFD Controls
• FEATURES
• Heavy-Duty Cantilever Frame
• Adjustable Splitter Box
• Labyrinth Bearing Seals
• Quick-Change Belt Design
🧲 High Intensity Top Fed Rare Earth Drum Magnetic System Overview:
See attached drawing for additional detailed information & specifications.

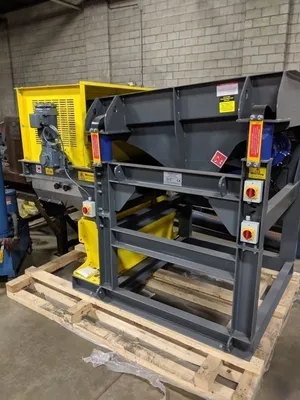

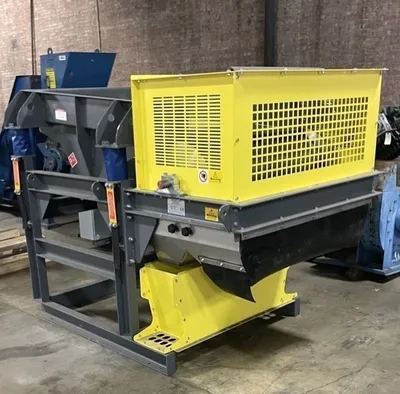

Rare Earth Magnetic Drum:
📏 Size: 12" Diameter x 60" Face RE Drum, designed for high-intensity magnetic separation of magnetic and weakly magnetic materials.
🏗️ Material: Non-magnetic stainless steel shell & flanges for durability and corrosion resistance.
🔄 Includes: Drive Motor, Housing & Stand with an Integrated Vibratory Feeder for effective material handling and separation.
Feeder Specifications:
Drive System: 2 x Motor out of balance, ensuring efficient feed motion and material spread.
Design:
📐 Non-Magnetic End Section: 390mm long, designed for smooth material transition.
🛡️ Liners: 6mm tray with ABRO 400 6mm impact liner for the first impact section, offering high durability. Followed by a 6mm stainless liner and non-magnetic end for sustained quality and performance.
Frame: Stiffened rolled steel channel frame, providing robust support.
Additional Features:
Drive Type: Low Maintenance Adjustable Single Mass Electric Rotating Drive, offering precise control and reduced maintenance.
Support: Steel Coil Springs, ensuring stable operation and longevity.
Installation: Mounted On Stand for easy integration into existing systems.
Splitter Box: Included for efficient material separation and routing.
Equipped With
OPTIONAL: PMDS top fed drum magnet w/ integrated vibratory feeder.
