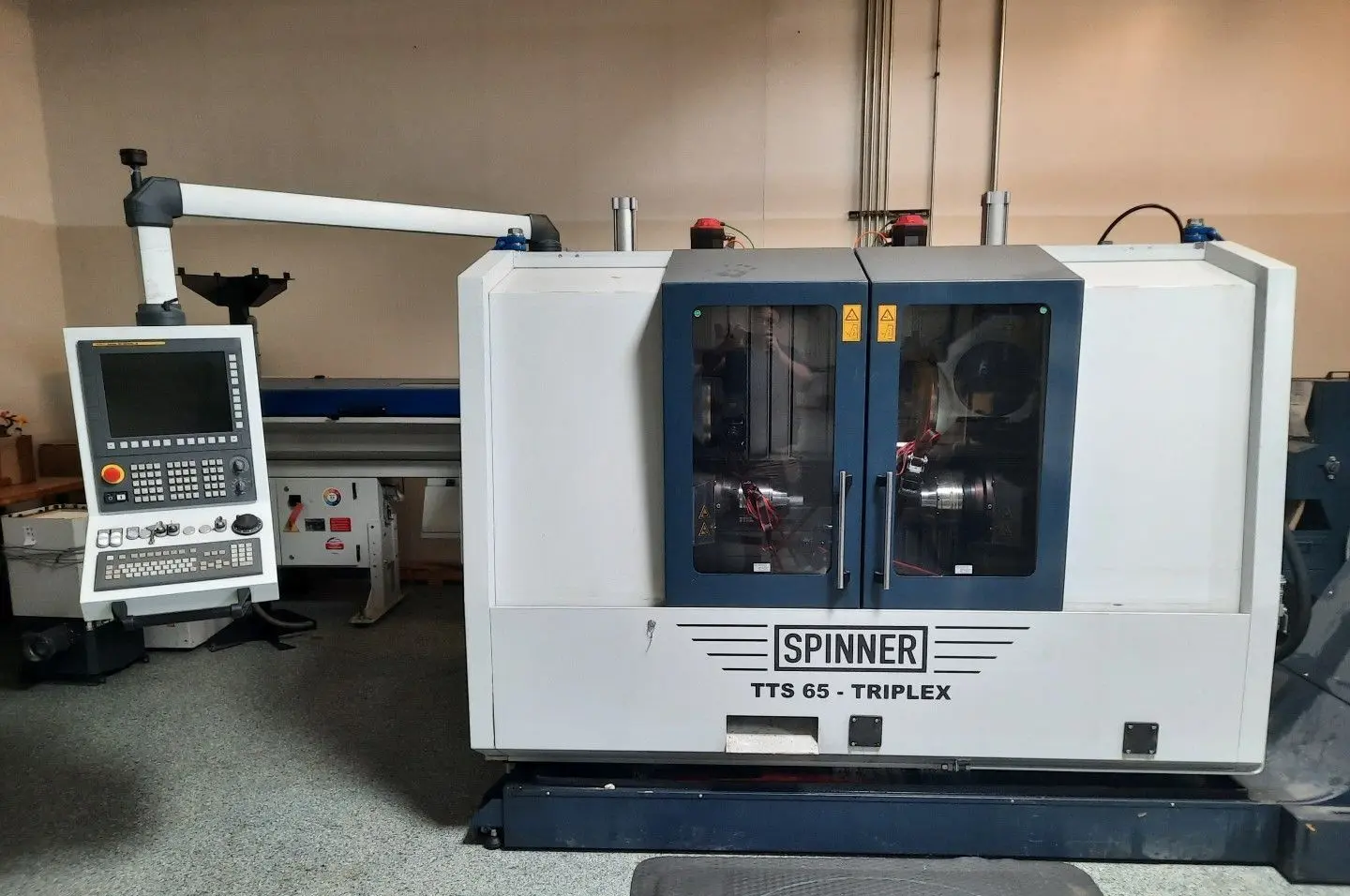

USED 2022 SPINNER TTS-65 TRIPLEX

Capacity
Bar Capacity (Std) 2.56 in 65 mm
Bar Capacity (Opt) 1.65 in 42 mm
Travel
X1 / X2 / X3 7.08 in 180 mm
Y1 / Y3 +-1.7 in +-45 mm
Z1 / Z3 27.1 in 688 mm
Z2 24.4 in 620 mm

Left/Right Spindle 65mm
Speed 5,000 rpm
Nose A6
Power Chuck 8.3 in 210 mm
Performance (S6 40%) 32.2 hp 24 kW
Torque (S6 40%) 111.3 ft-lb 151 Nm
Left/Right Spindle 42mm
Speed 7,000 rpm
Nose 4.3 in 110 mm
Power Chuck 5.5 in 140 mm
Performance (S6 40%) 29.5 hp 22 kW
Torque (S6 40%) 94.4 ft-lb 128 Nm

Turrets
Stations per Turret 12 / BMT45
Live Tooling 8,000 rpm
Performance 5.8 hp 4.3 kW
Torque 10 ft-lb 13.6 Nm
