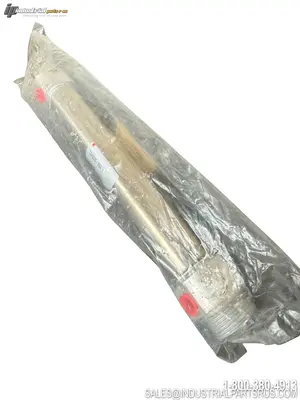

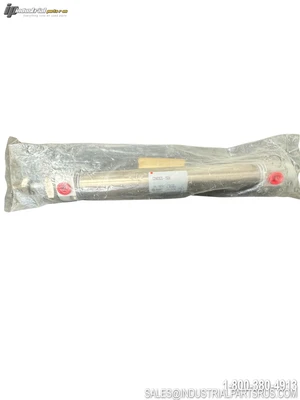

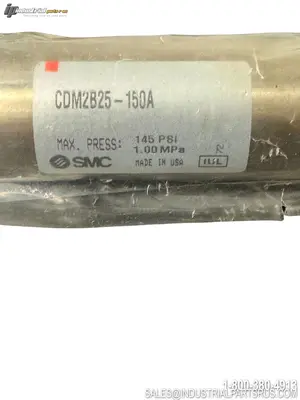

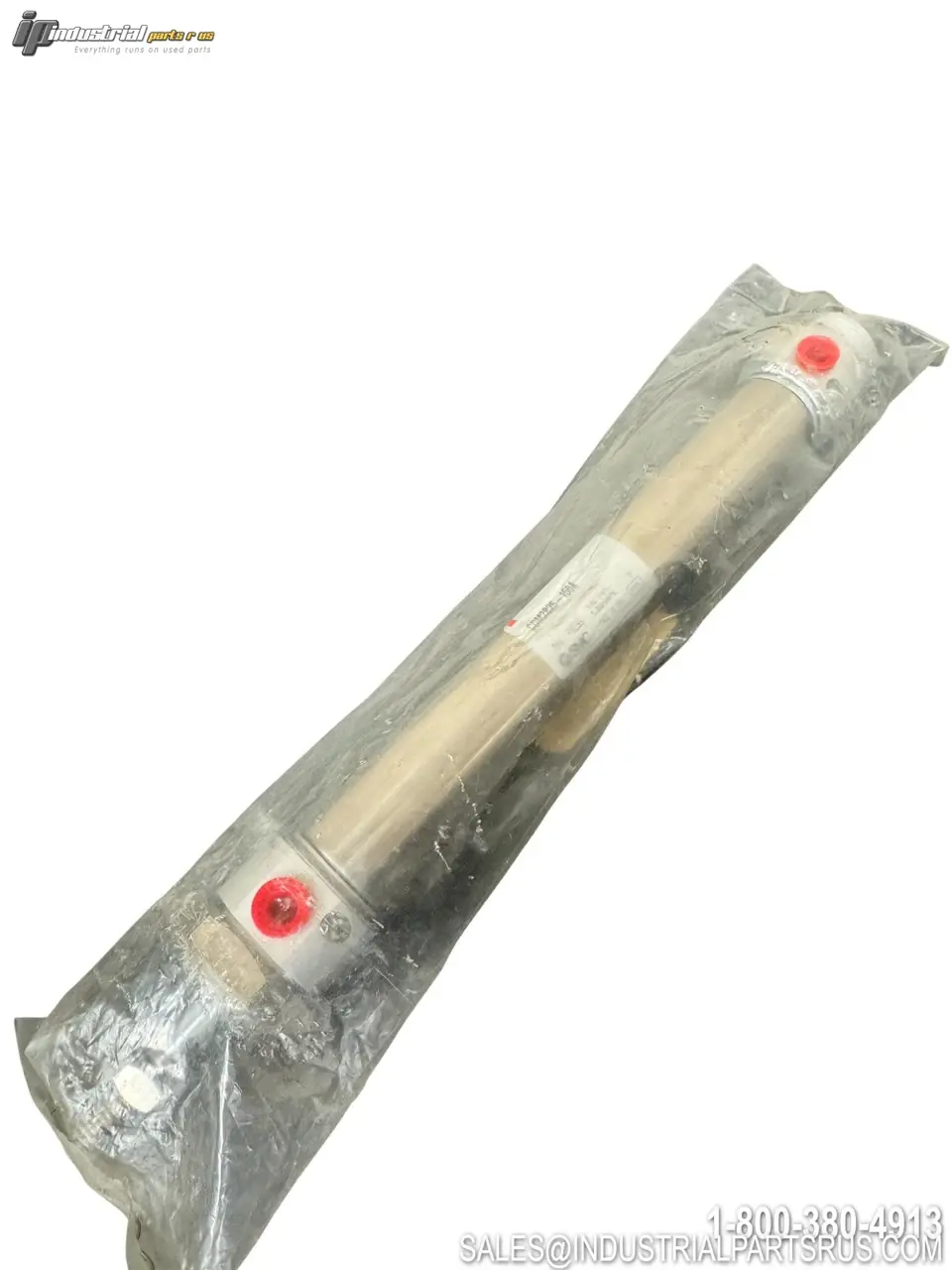

USED SMC CDM2B25-150A

The SMC CDM2B25-150A is a CM2 Series round body pneumatic air cylinder featuring a 25mm bore diameter and 150mm stroke length. It is a double-acting, single-rod cylinder with built-in magnet for auto switch compatibility, basic (double-side bossed) mounting style, and air cushion on both ends for smooth deceleration at end of stroke. The cylinder is non-lube (lubrication-free) and uses air as its working fluid, suitable for a wide range of industrial automation applications.
Specification
Value
Brand
SMC
Model / Part Number
CDM2B25-150A
Series
CM2
Product Type
Round Body Air Cylinder
Action
Double Acting, Single Rod
Bore Diameter
25 mm
Stroke Length
150 mm
Cushion Type
Air Cushion (Both Ends)
Mounting Style
Basic (Double-Side Bossed)
Built-In Magnet
Yes (Auto Switch Compatible)
Fluid
Air
Proof Pressure
1.5 MPa
Maximum Operating Pressure
1.0 MPa (145 PSI)
Minimum Operating Pressure
0.05 MPa
Piston Speed (Rubber Bumper)
50 to 750 mm/s
Piston Speed (Air Cushion)
50 to 1000 mm/s
Piston Rod Diameter
10 mm
Rod End Thread
Male Thread (M10 x 1.25)
Port Thread Type
Rc (BSPT)
Port Size
Rc 1/8
Lubrication
Not Required (Non-Lube)
Ambient / Fluid Temperature (No Switch)
-10°C to 70°C (No Freezing)
Ambient / Fluid Temperature (With Switch)
-10°C to 60°C (No Freezing)
Stroke Length Tolerance
+1.4 / 0 mm
Seal Material
NBR (Nitrile Rubber)
Cylinder Tube Material
Aluminum Alloy (Hard Anodized)
Allowable Kinetic Energy (Air Cushion, Male Thread)
0.78 J
Auto Switch
Without Auto Switch (Pre-wired optional)
Rod Boot
None
We warranty all items for 30 days from date of purchase.
