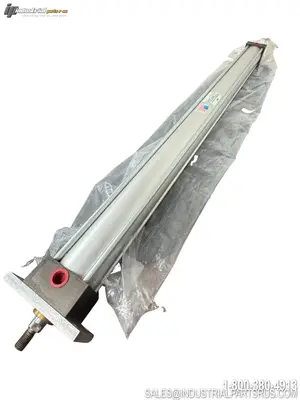

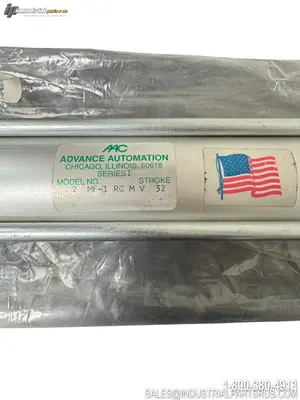

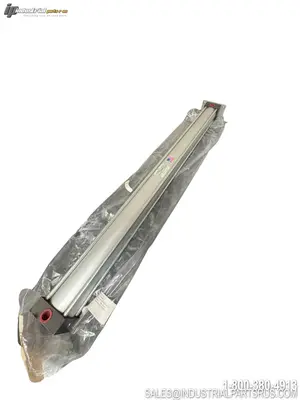

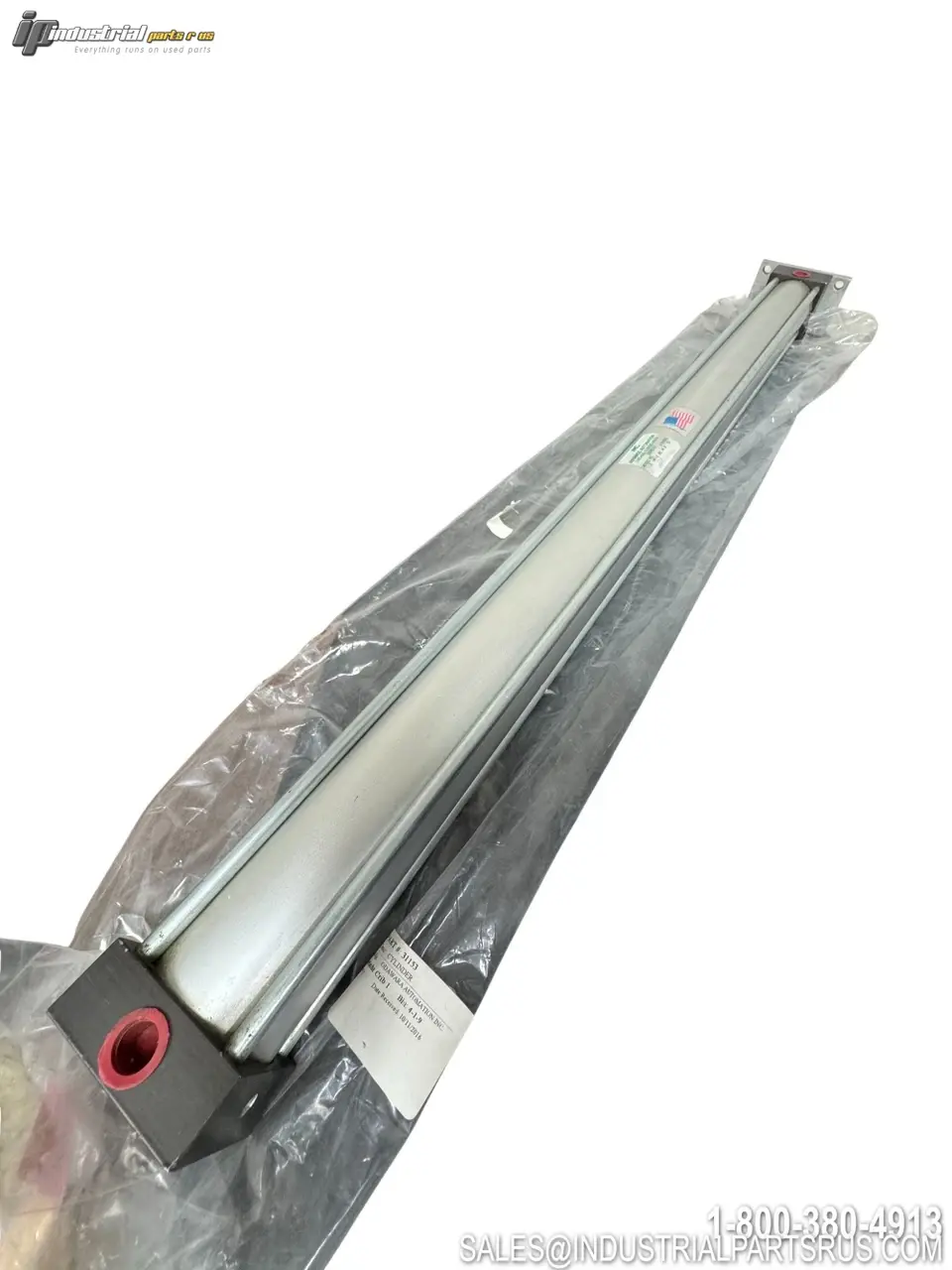

NEW ADVANCED AUTOMATION 2 MF-1RC M V

The Advanced Automation 2 MF-1RC M V is a Series I NFPA-interchangeable aluminum pneumatic cylinder featuring a 2-inch bore with an MF1 (front/head rectangular flange) mounting style. This cylinder is configured with a rod clevis (RC) rod end, magnetic piston (M) for position sensing compatibility, and Viton (V) seals for enhanced chemical and temperature resistance. Advanced Automation cylinders are built around an advanced design concept using high-grade extruded aluminum caps and heads, cast bronze bushings, nylon piston bearing strips, and a unique cushion design.
Specification
Value
Brand
Advanced Automation
Model / Part Number
2 MF-1RC M V
Product Type
Pneumatic Cylinder
Series
NFPA I-Series
Bore Diameter
2 in
NFPA Mount Style
MF1 – Head Rectangular Flange
Cushion Type
RC – Rod/Head-End Adjustable Cushion
Piston Type
M – Magnetic (position-sensing compatible)
Seal Material
V – Viton (FKM)
Cylinder Action
Double-Acting
Max Operating Pressure (Pneumatic)
250 PSI
Max Operating Pressure (Non-Shock Hydraulic)
250 PSI
NFPA Interchangeable
Yes
Suitable Media
Compressed Air / Non-Shock Hydraulic
Rod Type
Single Rod
Body Material
Hard Anodized Aluminum
Rod Material
Hard Chrome Plated Steel
Rod Bushing
Cast SAE 660 Bronze
Port Size (Standard)
3/8 NPT
Stroke Note
See label / as specified at time of order
Manufacturer
Advance Automation Company (AAC)
Made In
USA
We warranty all items for 30 days from date of purchase.
