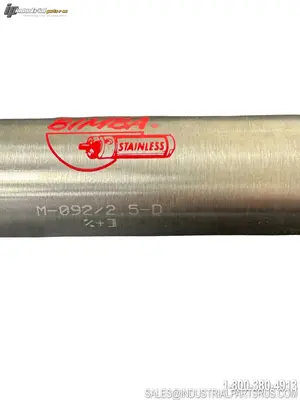

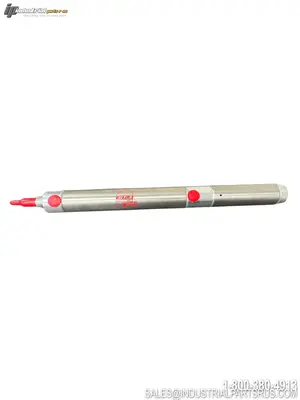

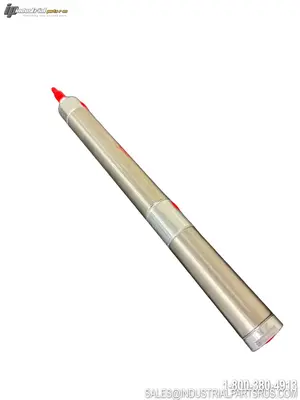

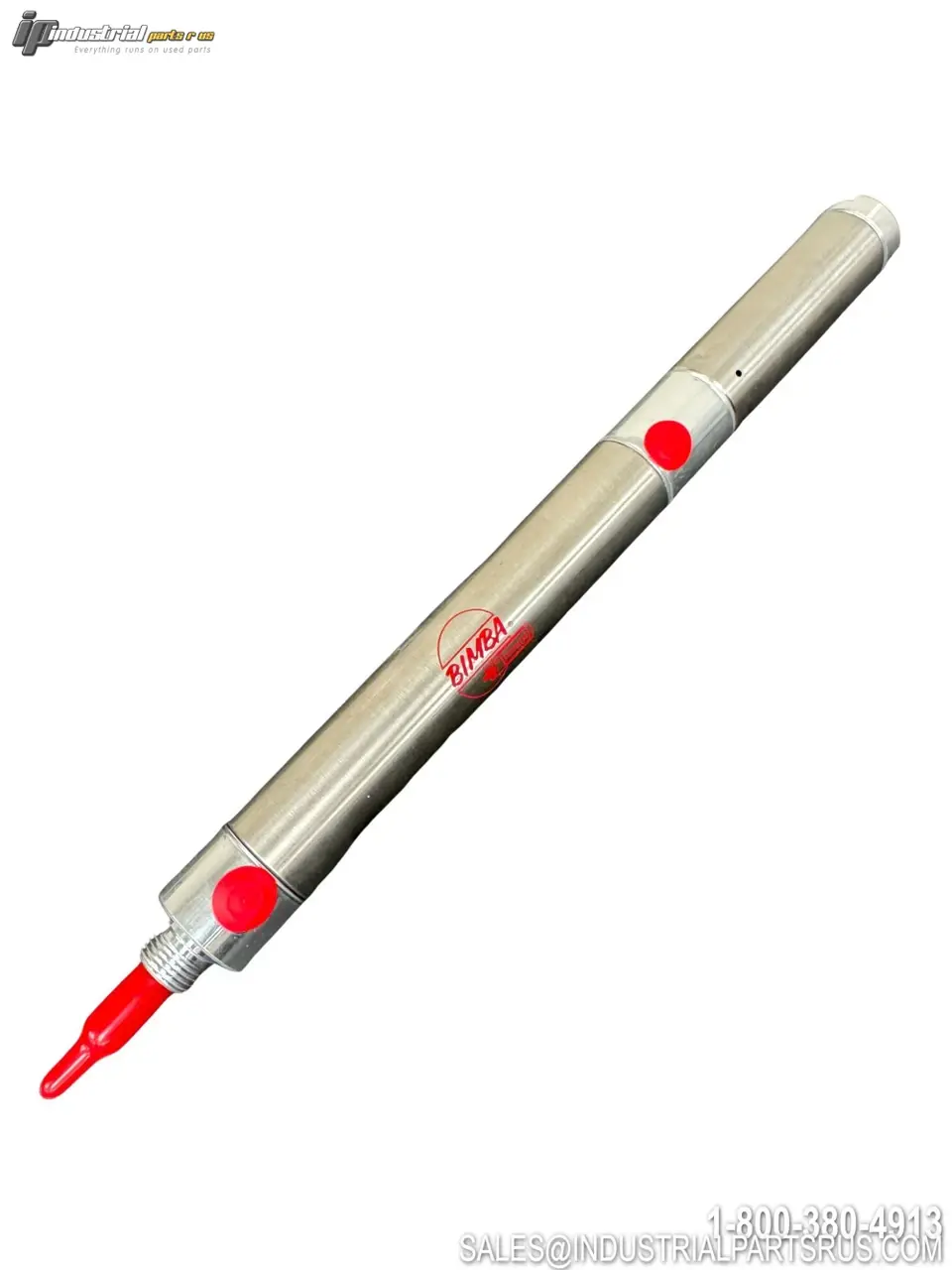

NEW BIMBA M-092/2.5-D

The Bimba M-092/2.5-D is an Original Line 3-Position double-acting pneumatic air cylinder featuring a built-in magnetic piston for position sensing. Part of the 09-series (1-1/16" bore) 3-Position family, this non-repairable, stainless steel body cylinder provides three distinct stopping positions within a single actuator — Stroke A of 2" and Stroke B of 2.5" for a combined total stroke of 4.5". It incorporates permanent grease lubrication, aluminum end caps, Buna-N seals, and a 5/16-24 UNF-2A male threaded stainless steel rod, and is rated to 250 PSI maximum air pressure.
Specification
Value
Brand
Bimba
Model / Part Number
M-092/2.5-D
Product Series
Original Line 3-Position Series
Sub-Range
09 Series (1-1/16" bore family)
Cylinder Type
3-Position Double-Acting Pneumatic (Air Return)
Bore Diameter
1-1/16" (1.0625")
Stroke A Length
2.000"
Stroke B Length
2.500"
Total Stroke Length (A+B)
4.500"
Mounting Style
Front Nose (D)
Magnetic Piston
Yes (M prefix)
Number of Positions
3
Maximum Pressure
250 PSI
Pneumatic Ports
3 x 1/8" NPT
Rod Thread
5/16-24 UNF-2A (Male)
Mounting Nut Thread
5/8-18 Threaded
Rod Material
Stainless Steel
Body Material
Stainless Steel
End Cap Material
Aluminum
Seal Material
Buna-N
Lubrication
Permanent Semi-Synthetic Grease (no field lubrication required)
Design
Non-Repairable
Operating Temperature
-20°F to +200°F (-28°C to +93°C)
Suitable Media
Compressed Air
Power Factor (Bore Area)
0.9 sq. in.
Rod Style
Round, Threaded
Bumpers / Cushioning
None
Rod Wiper
No
We warranty all items for 30 days from date of purchase.
