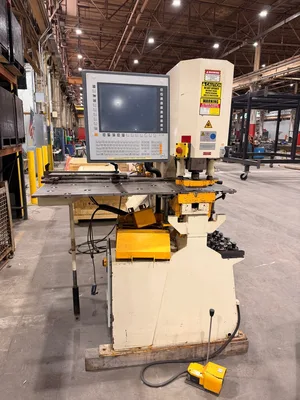

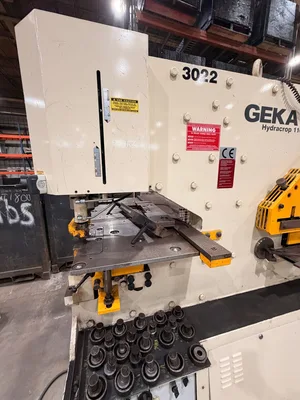

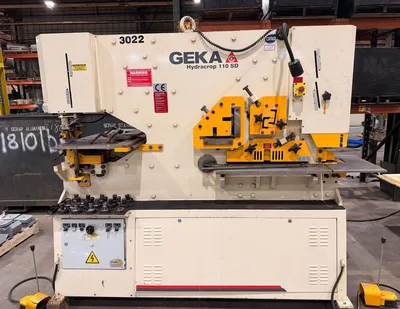

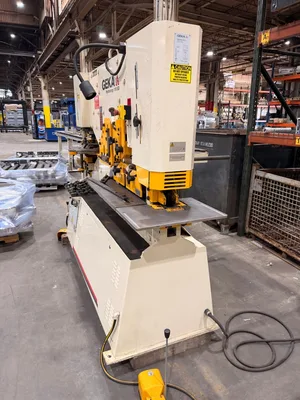

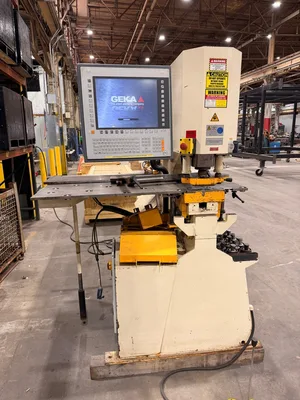

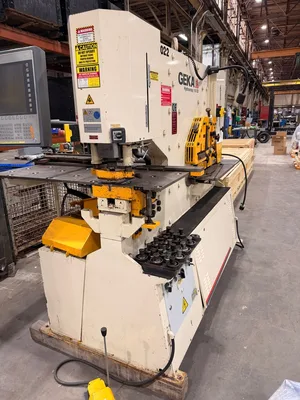

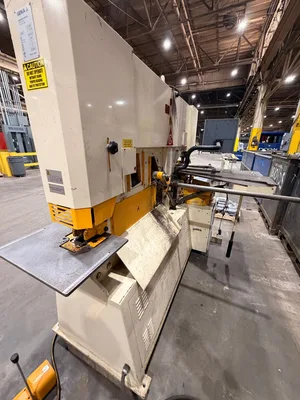

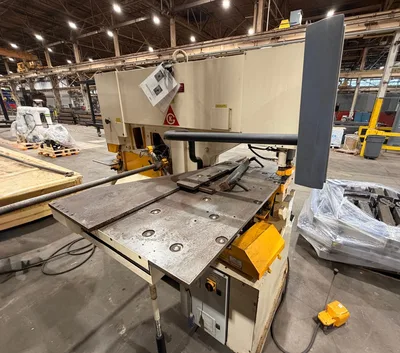

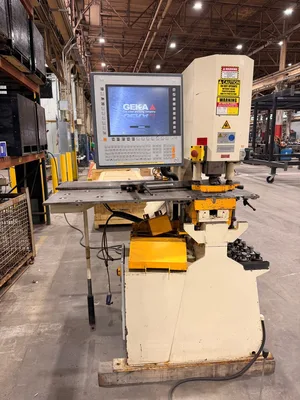

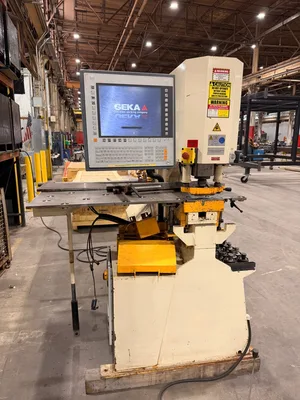

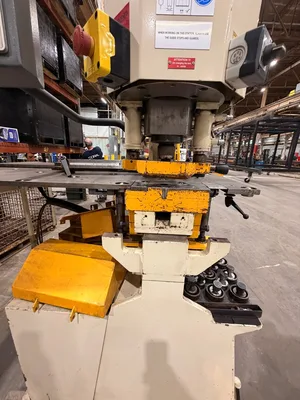

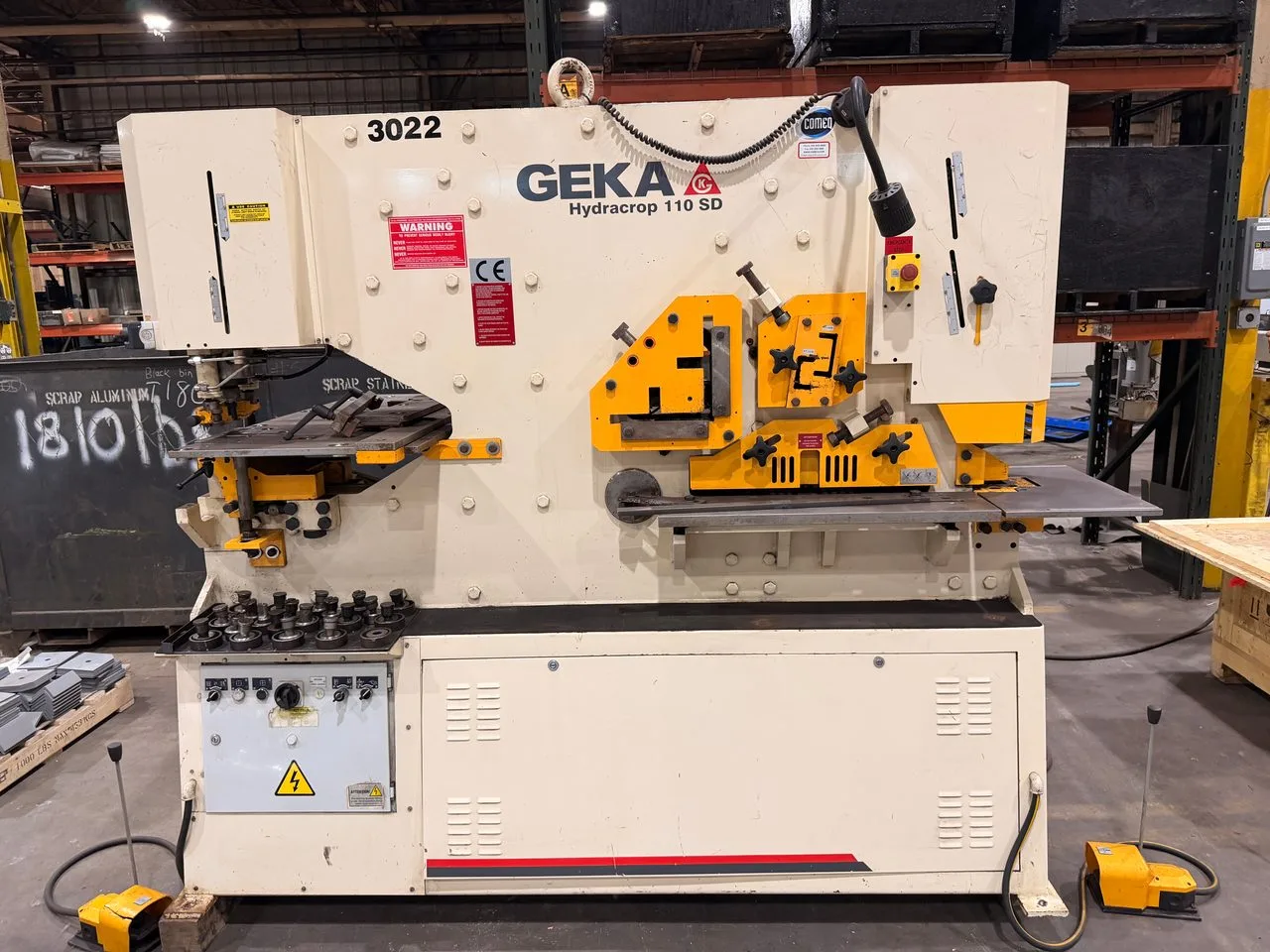

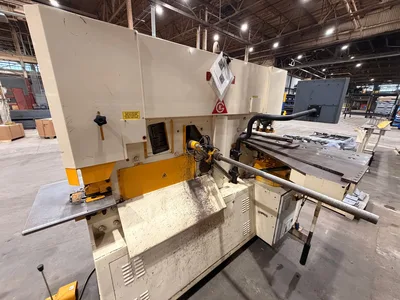

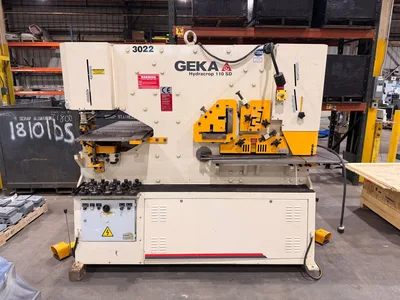

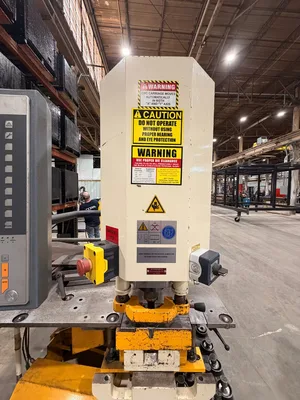

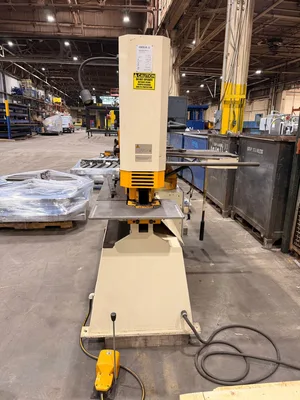

USED 2017 GEKA HYDRACROP 110

Capacity: 110 Ton

Tonnage Capacity, Punch End: 110 Ton
Tonnage Capacity, Angle Shear: 180 Ton
Throat Depth: 24″
Stroke Length: 3-5/32″
Working Height: 45-1/8″
Flat Shear Blade Length: 24″

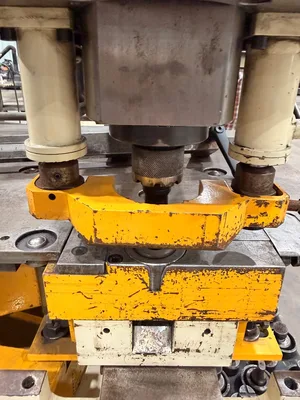

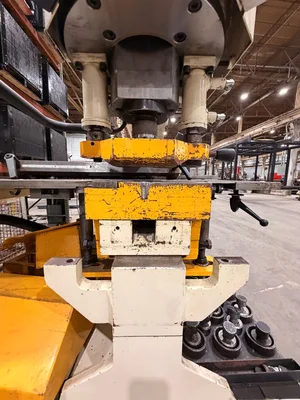

Punching Capacity: 1-1/2″ Diameter Thru 3/4″ Plate
Shearing Capacity, Flat Bars: 24″ x 5/8″
Shearing Capacity, Flat Bars: 16″ x 3/4″

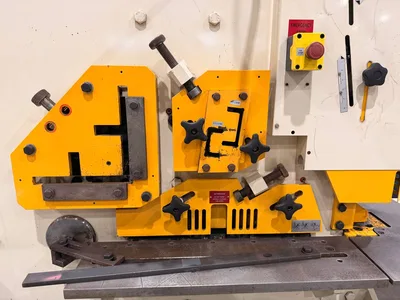

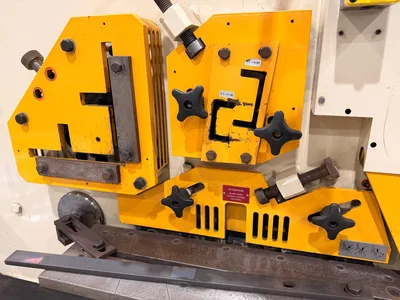

Angle Shearing Capacity, 90°: 6-1/2″ x 6-1/2″ x 1/2″
Angle Shearing Capacity, 45°: 3″ x 3″ x 5/16″
Shearing Capacity, Round Bars: 2″
Shearing Capacity, Square Bars: 2″
Notching Capacity, Width: 2″
Notching Capacity, Depth: 3-1/2″
Notching Capacity, Plates: 1/2″
Motor HP: 7.5

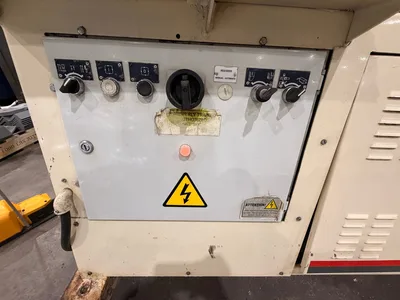

Electrical: 220/440V(Wired 440)/3PH
Equipped with:

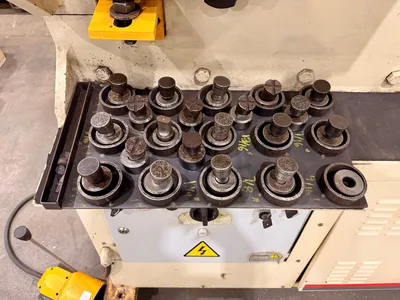

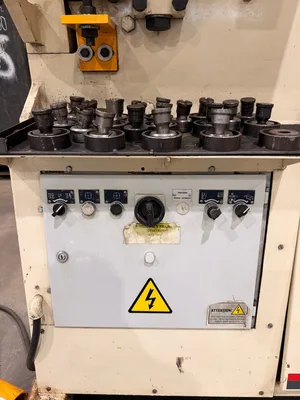

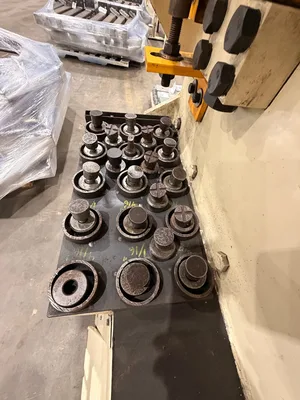

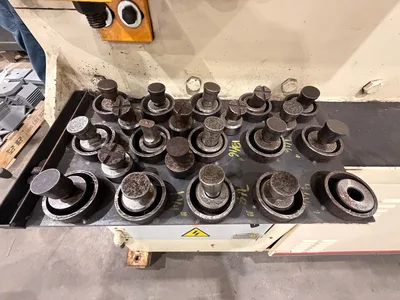

Misc tooling

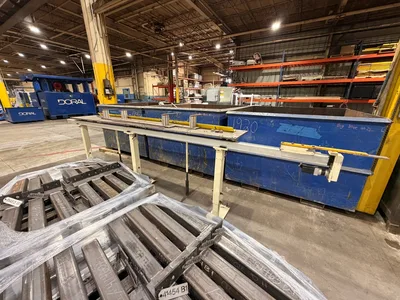

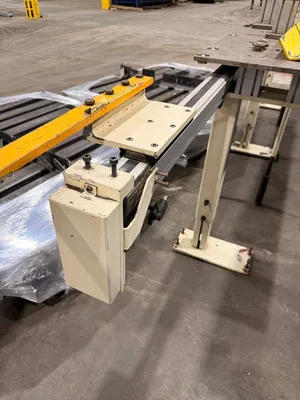

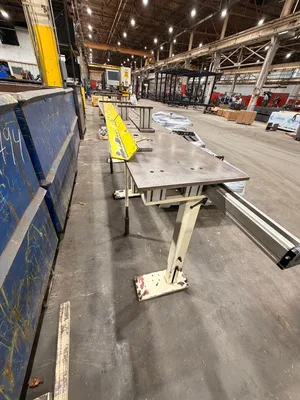

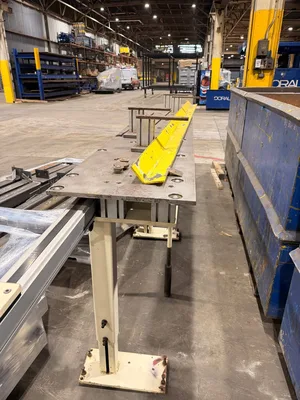

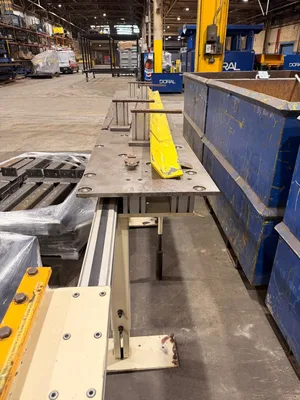

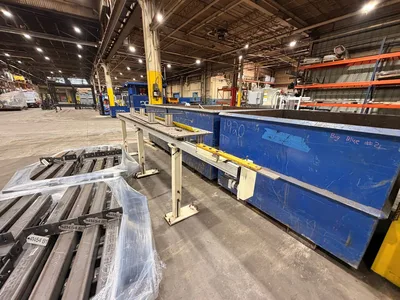

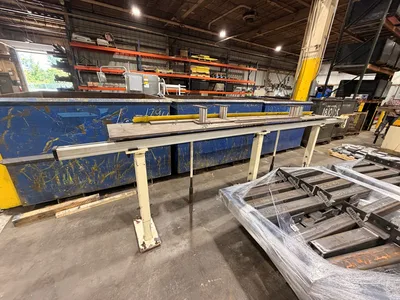

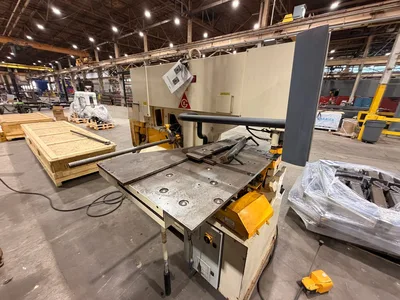

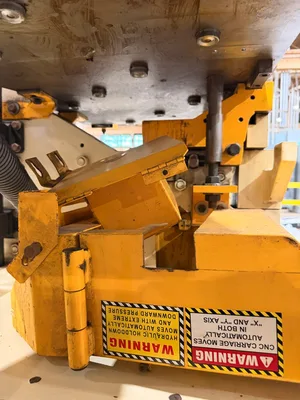

CNC feeder/ positioner (Semi-Paxy CNC Automatic Positioner)
Features and specifications for the Semi-Paxy CNC Automatic Positioner
Basic features:
Support chassis
Two servo motor-driven positioning carriages

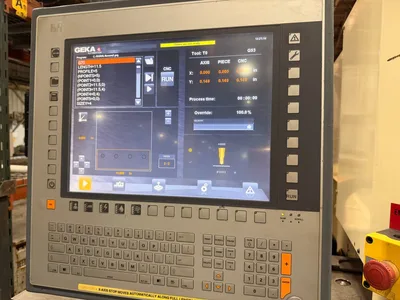

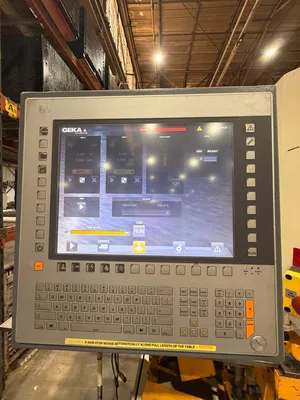

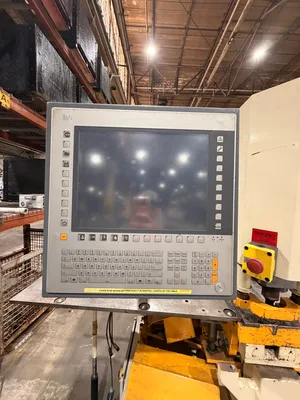

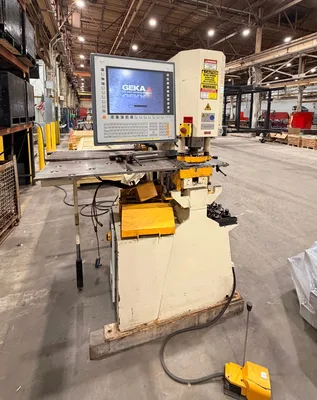

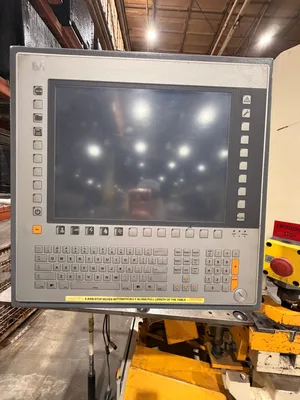

Touch screen
Conveyor assembly consisting of independent servo drives along each axis, spindle and encoder units
Maximum Widths according to Model:
HYDRACROP or PUMA (20″ throat) = 15 3/4″ Y Gauging.
HYDRACROP Models 110SD and 165 SD = 20″Y Gauging.
PUMA (30″ throat) = 25 5/8″ Y Gauging.
