USED 1998 SOUTHWESTERN INDUSTRIES - TRAK MACHINE TOOLS DPM
Overview

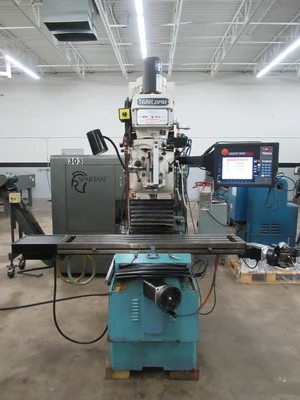

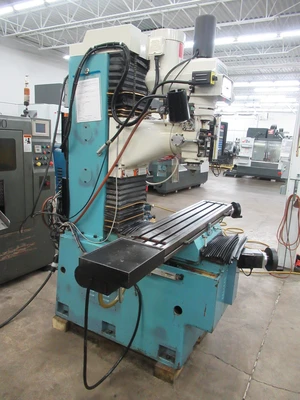

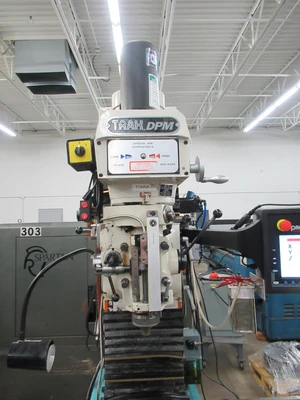

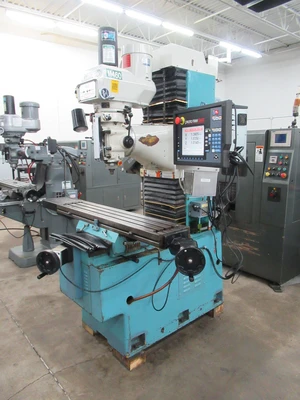

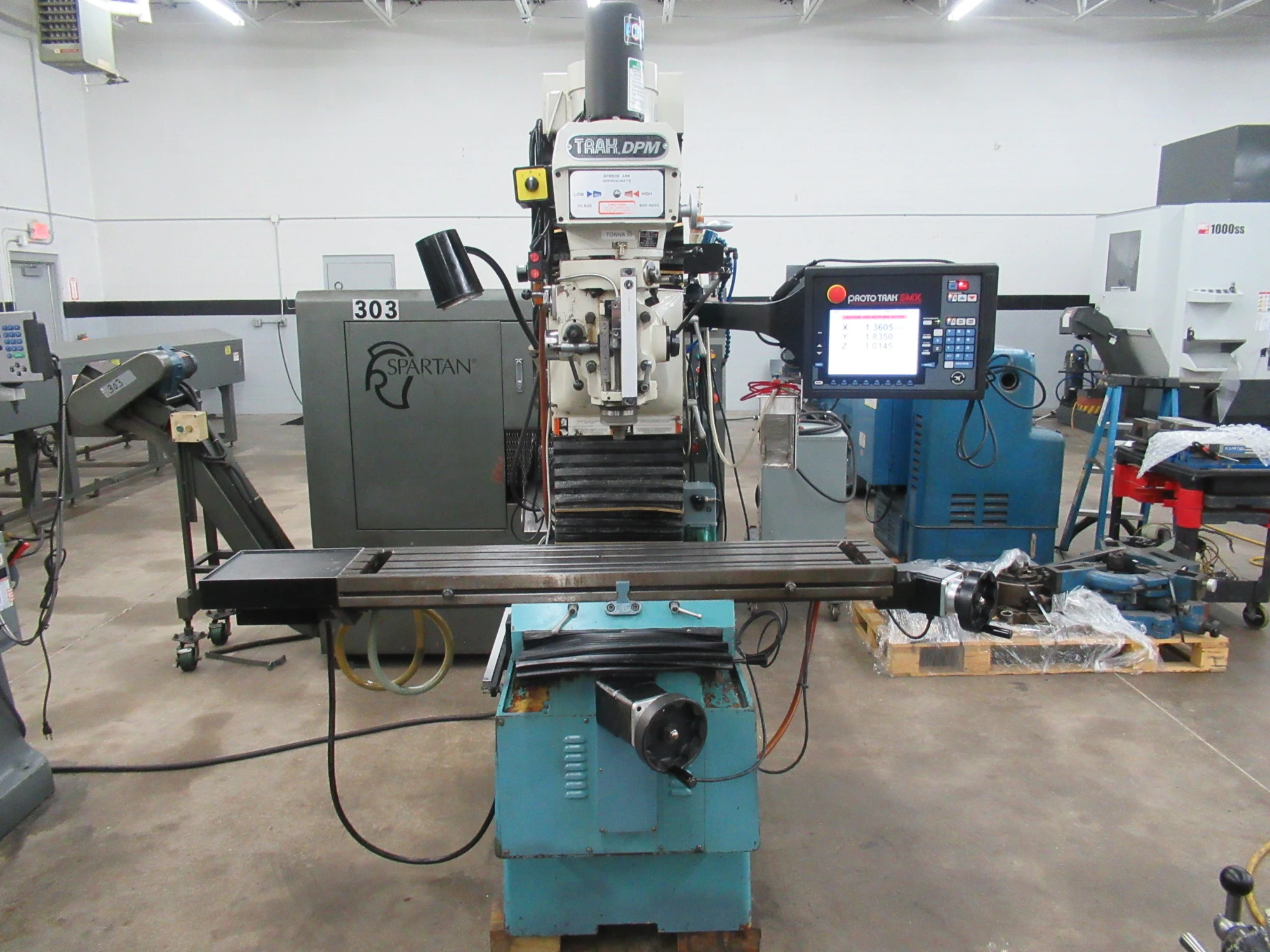

Southwestern Industries TRAK DPM CNC vertical bed mill equipped with a ProtoTRAK SMX3 3-axis CNC control. The TRAK DPM series combines manual machining capability with conversational CNC operation, making it well suited for toolroom, prototype, repair, and short-run production work.
Specs
Control:: Proto Trak SMX

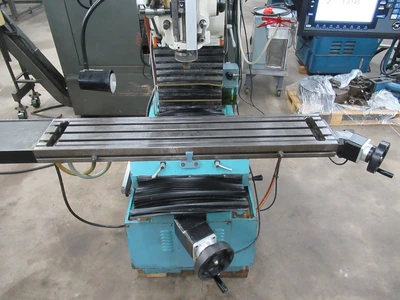

Table Size:: 50" X 10"
Table Load:: 1,320 Lbs.
X-Axis Travel:: 31"
Y-Axis Travel:: 17"
Z-Axis Travel:: 25" (Vertical Programmable Head Travel)
Power Quill Travel:: 5" Hand or Power Feed
Power Quill Feeds:: (3) .002 | .004 | .006 IPR
Centerline Spindle-To-Column Distance:: 17.5"
Distance Spindle Nose to Table:: Approximately 0"-25"
Spindle Taper:: NTMB 40 or 40 Taper
Spindle Speeds:: 70-4,200 Variable Speed in 2 Ranges
Head Swivel / Tilt:: Swivel +/- 90 Degrees Left-To-Right
Spindle Drive:: 3 HP
Equipped With

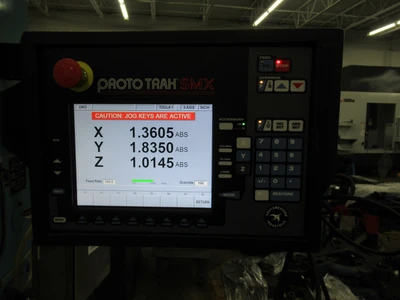

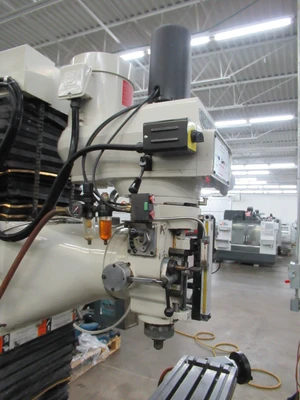

Proto Trak SMX CNC Control 3-Axis (Upgraded in 2016), Z-Axis Programmable Via Head Travel, Manual and Power 5" Quill Travel, Variable Speed Spindle in 2 Ranges: 70-500 | 60-2,200 RPM, 40 Taper Spindle, Kurt Power Draw Bar, Work Light, Glass Scales, Automatic Lubrication, Kool Mist Mister, 3 HP Spindle Drive Motor, Manual Quill Handle, X&Y Axes Manual Table Handles
